Circuit Breaker 20A 12V Stud Type Surface Mount S5569
Circuit Breaker 20A 12V Stud Type Surface Mount S5569
Regular price
$9.95
Regular price
Sale price
$9.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Single pole stud type 20A DC circuit breaker with surface mounting tabs. Ideal for use in vehicles. Auto reset. Current ratings at 12V/24V DC. Meets SAE J553 standard. #10 - 32 UNF stud connection (Approx 4.75mm diameter). Includes hardware.
Specifications
- Type: Automatic reset

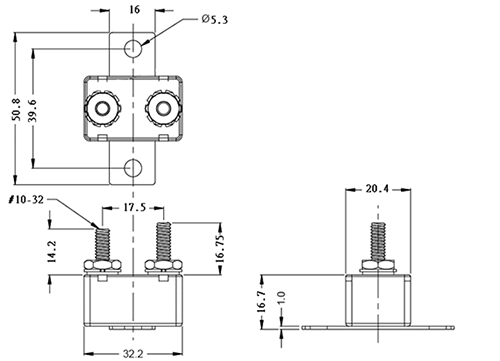

- Terminals: Two #10 - 32 UNF stud.
- Rating: 20A @ 12/24V DC.
- Operating temperature: -23°C to 65°C
- Application: Battery chargers, vehicles.
- Test compliance: SAE standard J553 (type 1)
