Circuit Breaker 250A Surface Mount IP67 Waterproof S5896
Circuit Breaker 250A Surface Mount IP67 Waterproof S5896
Regular price
$64.95
Regular price
Sale price
$64.95
Unit price
per
Taxes included.
Couldn't load pickup availability

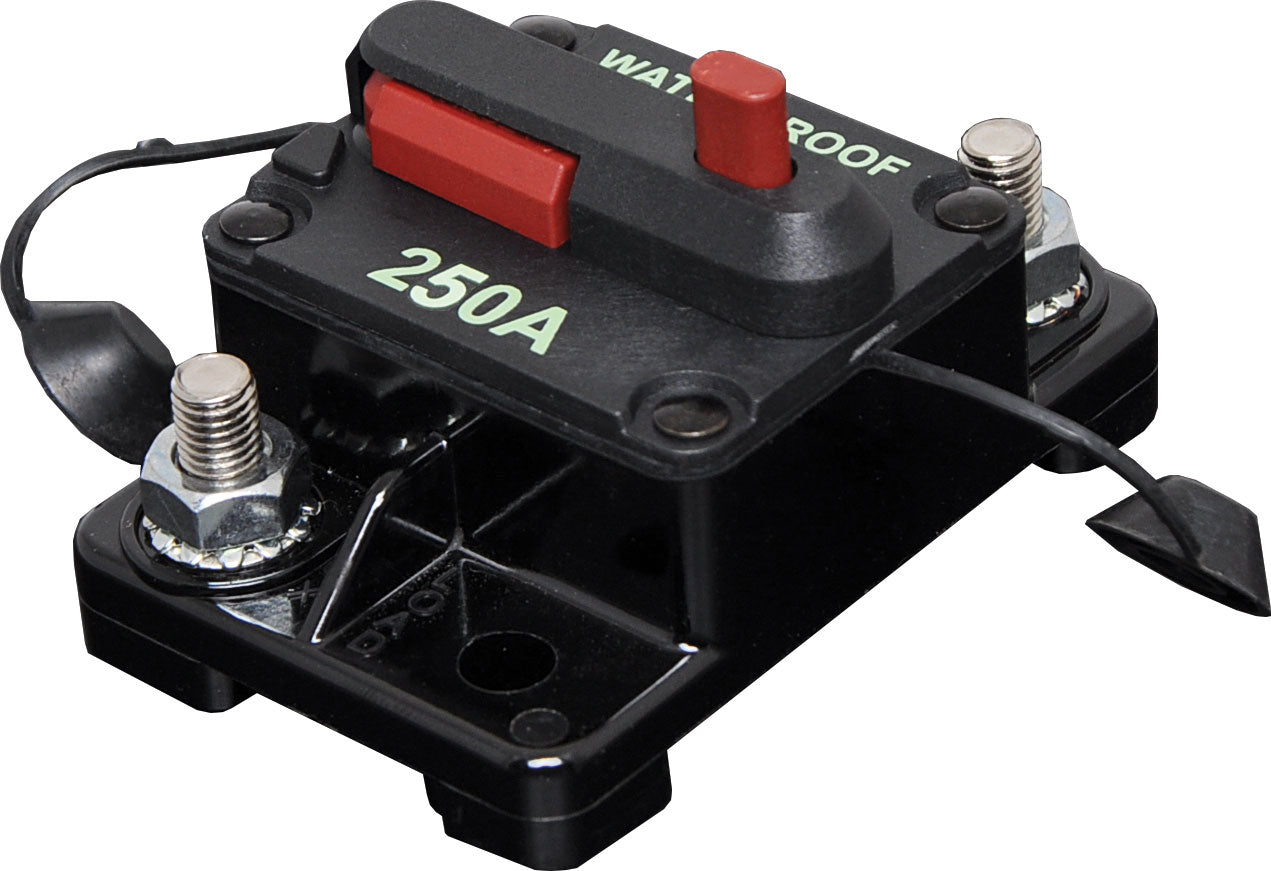

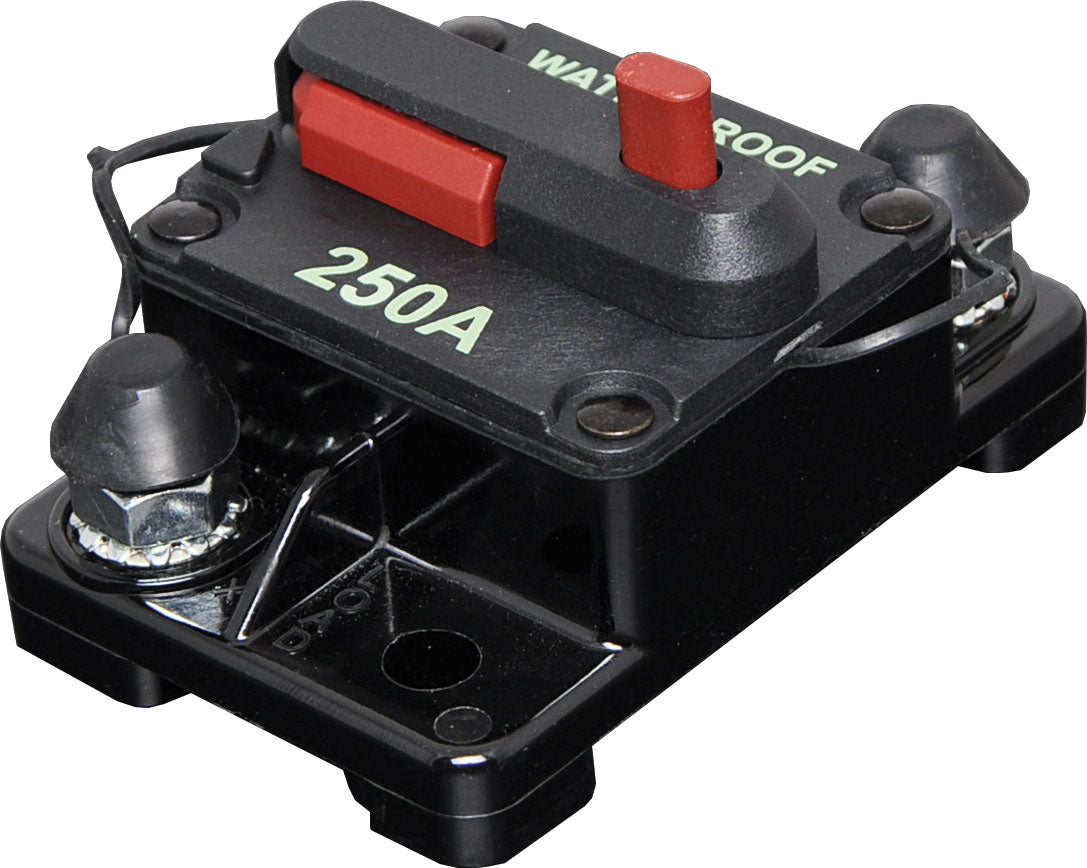

This 250A high current surface mount circuit breaker is ideal for use in 12V or 24V DC power systems. It features a IP67 weatherproof casing with M10 terminal bolts for connection to power cabling. The breaker can be easily reset using the red lever switch. Typically used in auxiliary and accessory circuits in automotive and marine applications. Also suitable for battery charger designs. Tested to SAE J1625 & SAE J1171 (ignition protected).
Specifications
- Max. Voltage: 48V DC
- Interrupt Rating: 3000A @ 30V DC
- Operating Temperature: -32°C to 82°C
- Testing: SAE J1625, SAE J1171 (ignition protected)
- Material: UL94V-0
- IP Rating: IP67
- RoHS approved
- UL approved 250A @ 32V DC
- External Dimensions: 86 x 48.5 x 32mm
