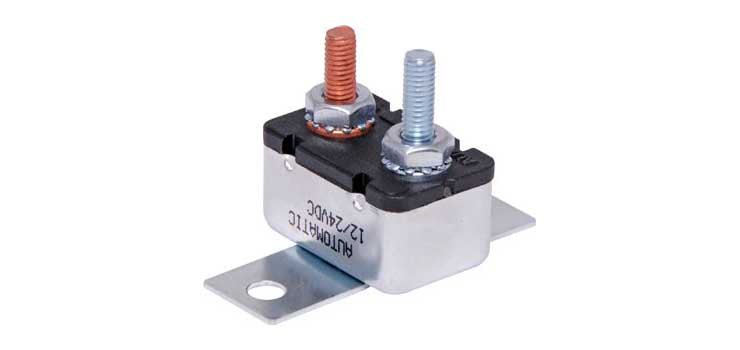

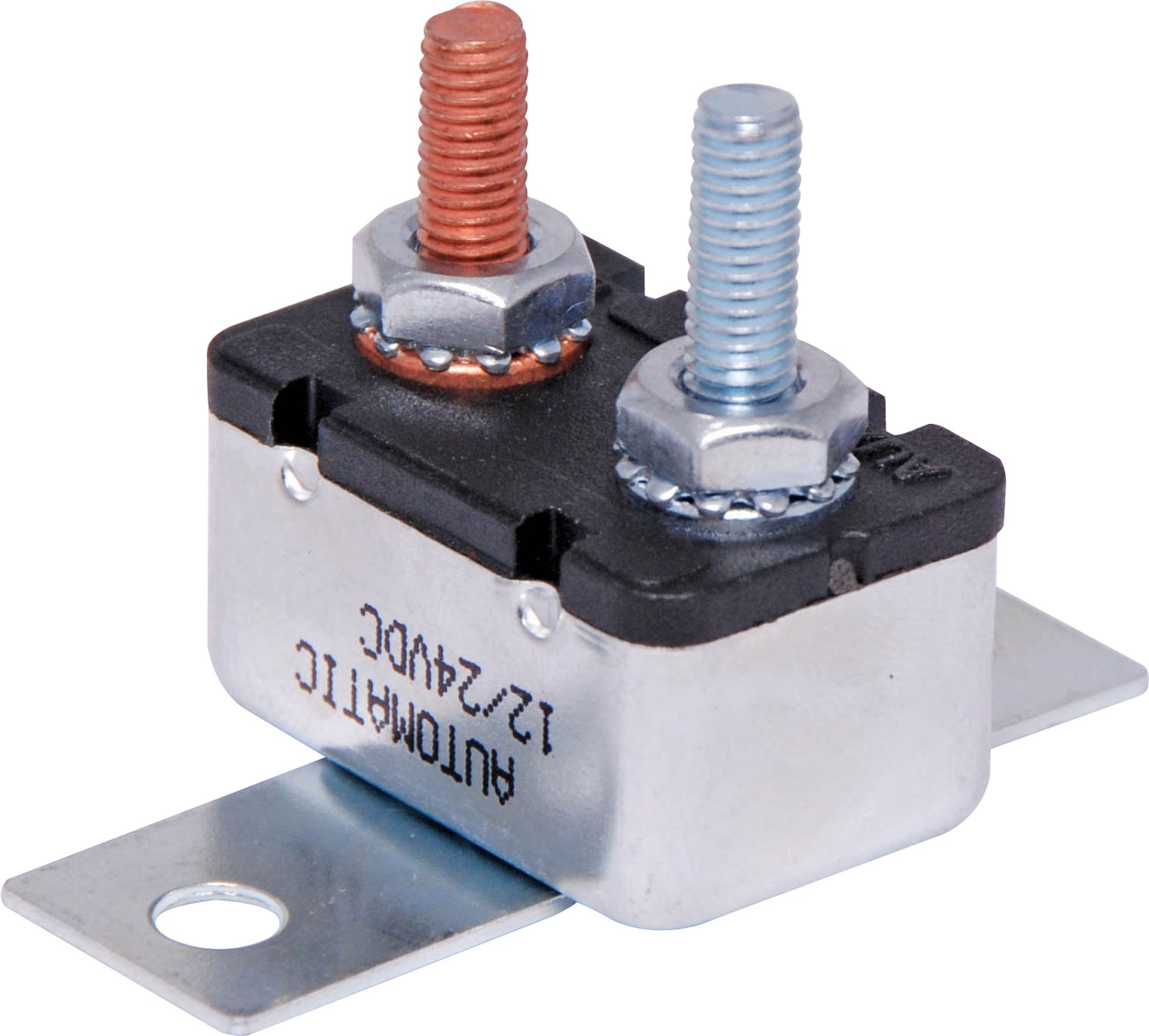

Circuit Breaker 50A 12V/24V Stud Type Surface Mount S5574

Circuit Breaker 50A 12V/24V Stud Type Surface Mount S5574

Regular price $9.95
Regular price Sale price $9.95
Sale Sold out
Taxes included.
Quantity
View full details

Single pole stud type 50A DC circuit breaker with surface mounting tabs. Ideal for use in vehicles. Auto reset. Current ratings at 12V/24V DC. Meets SAE J553 standard (Type 1). #10 - 32 UNF stud connection (Approx 4.75mm diameter). Includes hardware.

Specifications

  • Type: Automatic reset
  • Terminals: Two #10 - 32 UNF stud.
  • Rating: 50A @ 12/24V DC.
  • Operating temperature: -23°C to 65°C
  • Application: Battery chargers, vehicles.
  • Test compliance: SAE standard J553 (type 1)
