Circuit Breaker Blade Fuse 10A 12V-24V DC Type S5544
Circuit Breaker Blade Fuse 10A 12V-24V DC Type S5544
Regular price
$8.00
Regular price
Sale price
$8.00
Unit price
per
Taxes included.
Couldn't load pickup availability

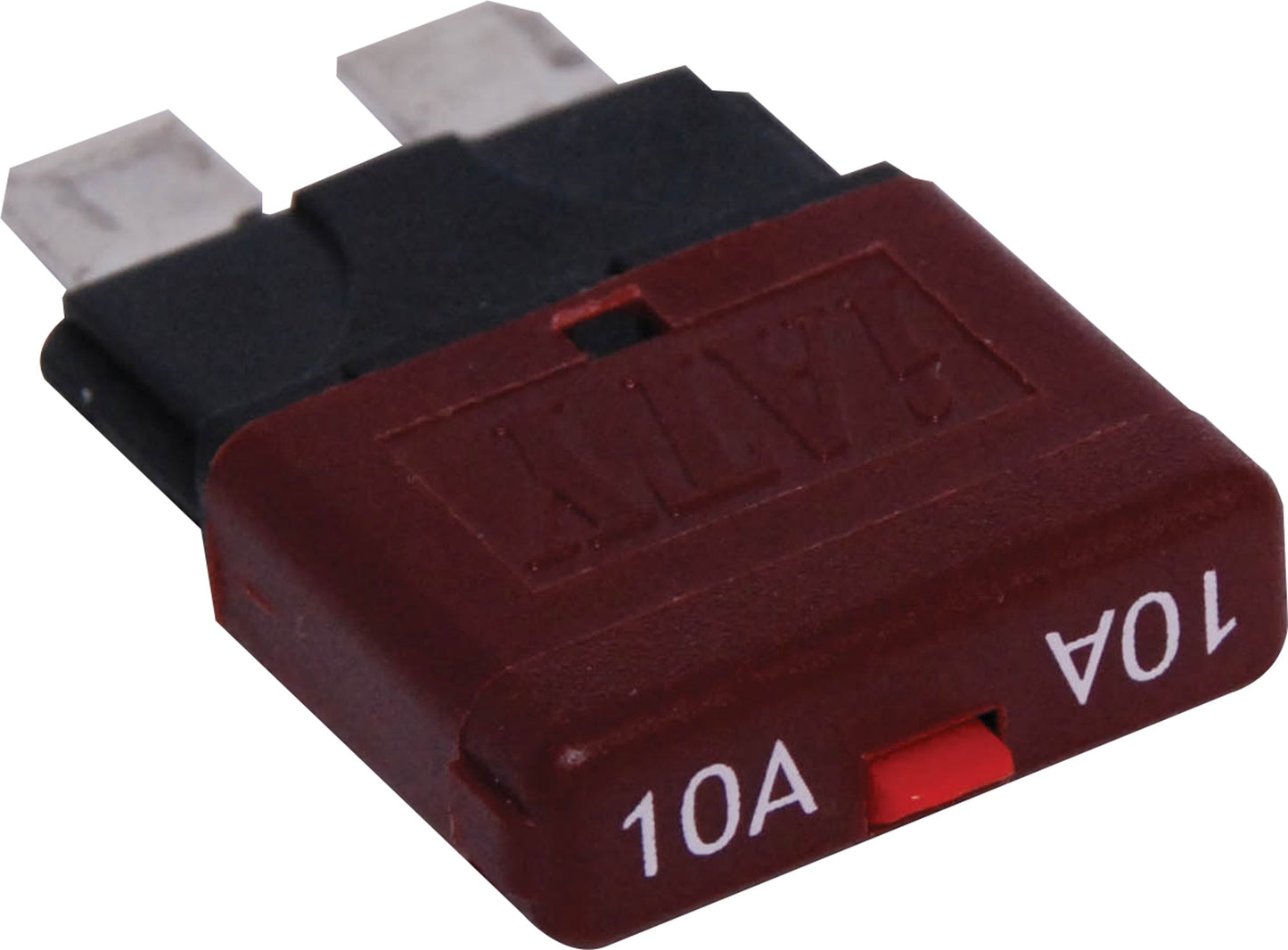

A resettable blade fuse style 10A circuit breaker suitable for 12V or 24V DC power systems. Suits most automotive blade fuse holders.
A drop in replacement for automative blade fuses. Max voltage 28V DC. Resettable 5mm blades.
Specifications
- Rating: 10A, 28V DC.
- Colour: Light Brown
- Interrupt Rating: 100A @ 28V DC.
- Operating Temperature Rating: -40°C to 85°C
- Storage Temperature Rating: -40°C to 125°C
- Testing Standard: SAE J553
