Circuit Breaker Blade Fuse 5A 12V-24V DC S5540
Circuit Breaker Blade Fuse 5A 12V-24V DC S5540
Regular price
$8.00
Regular price
Sale price
$8.00
Unit price
per
Taxes included.
Couldn't load pickup availability

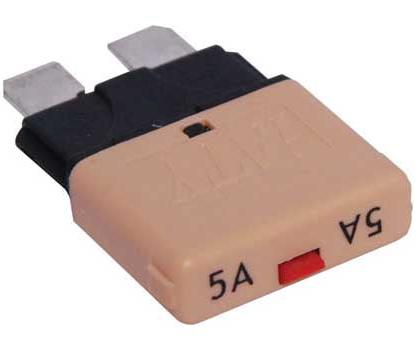

A resettable blade fuse style 5A circuit breaker suitable for 12V or 24V DC power systems. Suits most automotive blade fuse holders.
A drop in replacement for automative blade fuses. Max voltage 28V DC. Resettable 5mm blades.
Note: Due to the added height, these fuse/breakers are not suitable for use in some covered fuse blocks (Altronics S6024 or S6026)
Specifications
- Rating: 5A, 28V DC.
- Colour: Light Brown
- Interrupt Rating: 100A @ 28V DC.
- Operating Temperature Rating: -40°C to 85°C
- Storage Temperature Rating: -40°C to 125°C
- Testing Standard: SAE J553
