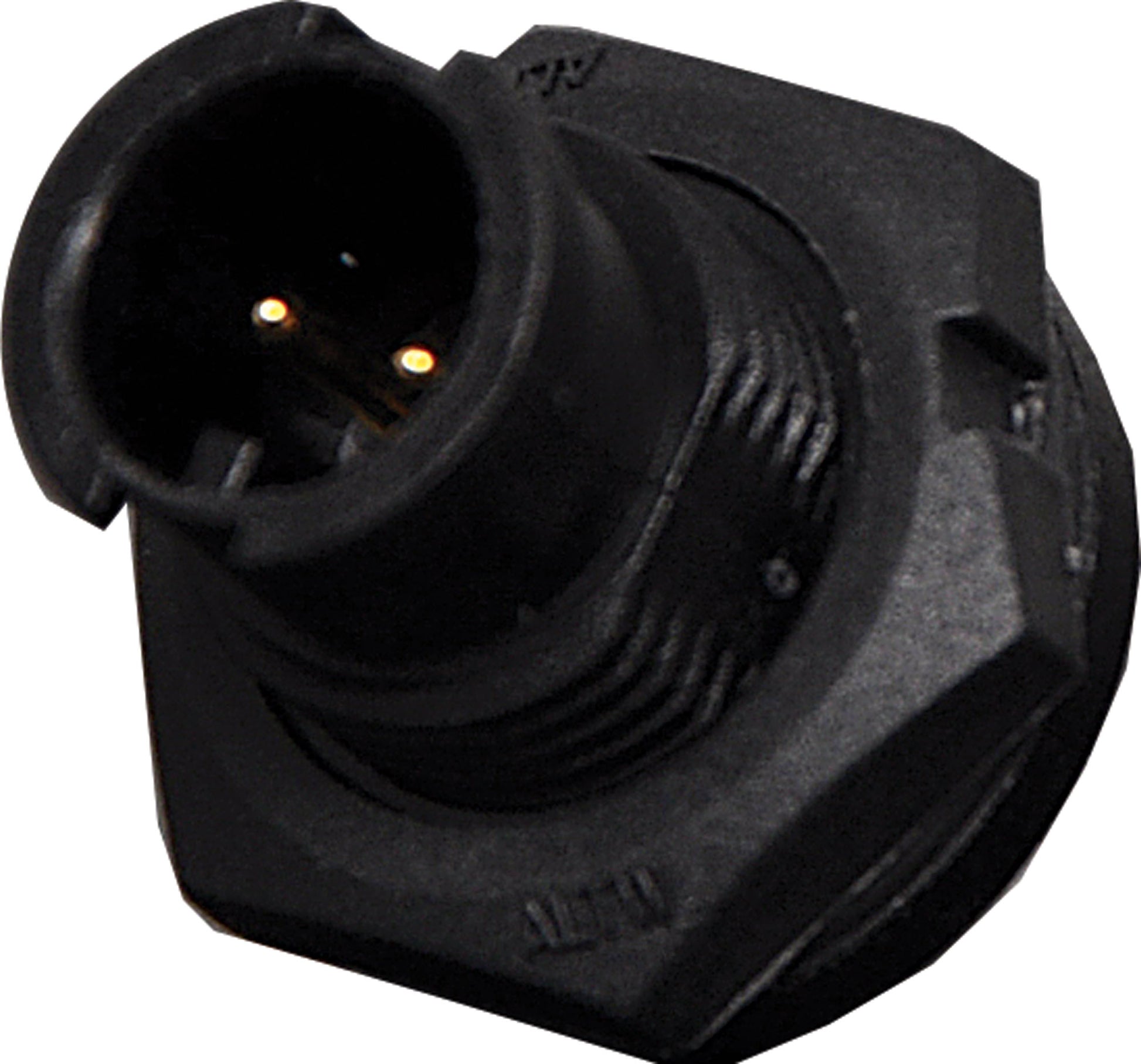

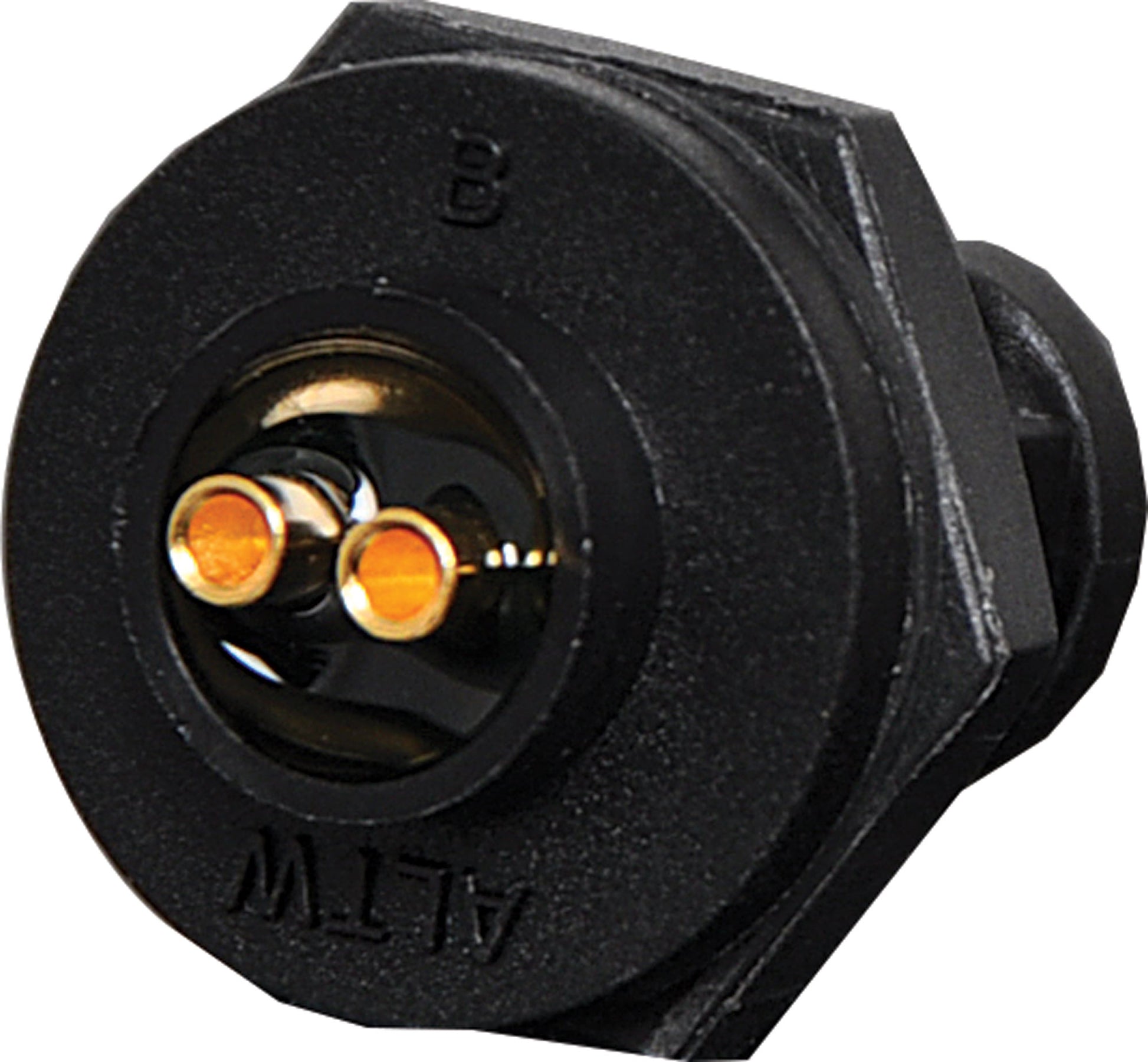

Circular Connector 2 Pin 5A Locking Male Chassis IP66 Waterproof Plug P9362
Circular Connector 2 Pin 5A Locking Male Chassis IP66 Waterproof Plug P9362
Regular price
$14.95
Regular price
Sale price
$14.95
Unit price
per
Taxes included.
Couldn't load pickup availability
IP67 rated waterproof 2, 4 and 6 pin connectors for installations outdoors or in areas prone to moisture build up. 2 pin rated at 5A. 4 & 6 pin rated at 2A.
Cable Entry: 4.5-6.5mm
Specifications
- Connector Gender: Male connector
- Mating Style: 2 point lock bayonet
- Current Rating: 5A
- No. of Contacts: 2 pins
- Contact Gender: Male pin
- Field installable: Solder
- Connector body type: Front Fastened (See more details)
- Backshell: Circular
- Waterproof Rating: IP67,Unmated
- Version: 001

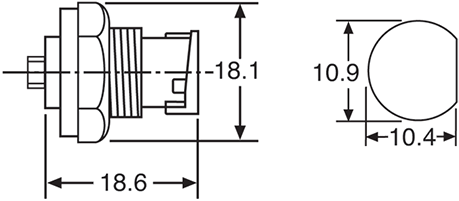

- Panel Cut (mm): 10.9X10.4
- Panel Thickness (mm): With Cap:2.3 Without Cap:3.5
- Voltage rating: 300V
