Circular Connector 5 Pin 5A Locking Male PCB IP67 Waterproof Plug P9495

Name: Circular Connector 5 Pin 5A Locking Male PCB IP67 Waterproof Plug P9495
Brand: Altronics
SKU: 9321758180167
Price: 16.25 AUD
Availability: InStock

$16.25

Sale Sold out

Taxes included.

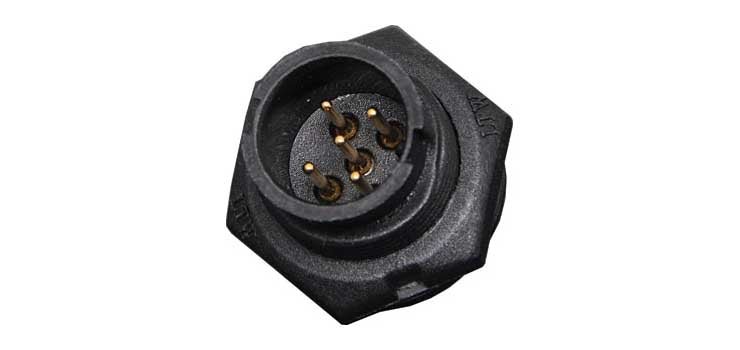

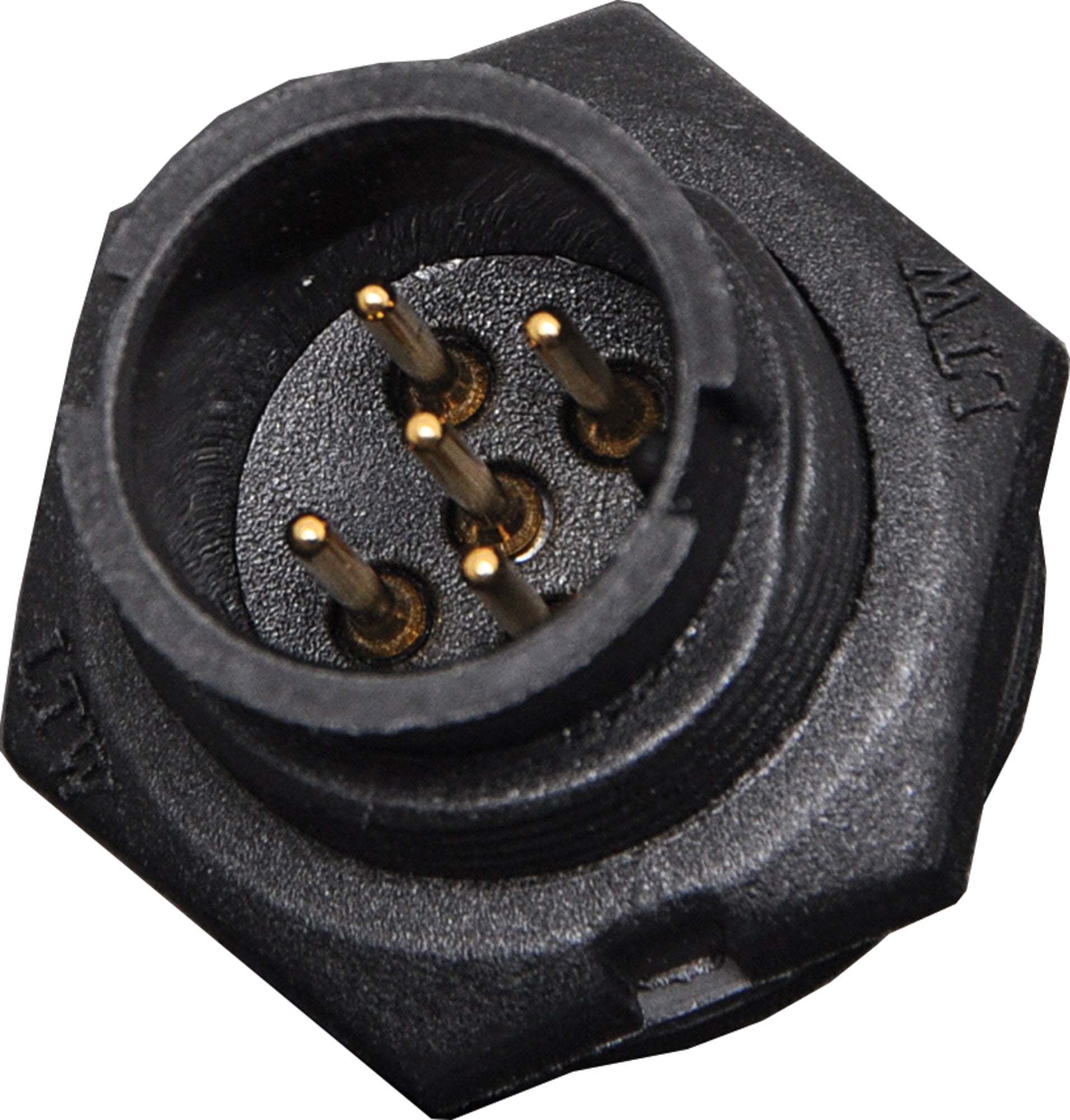

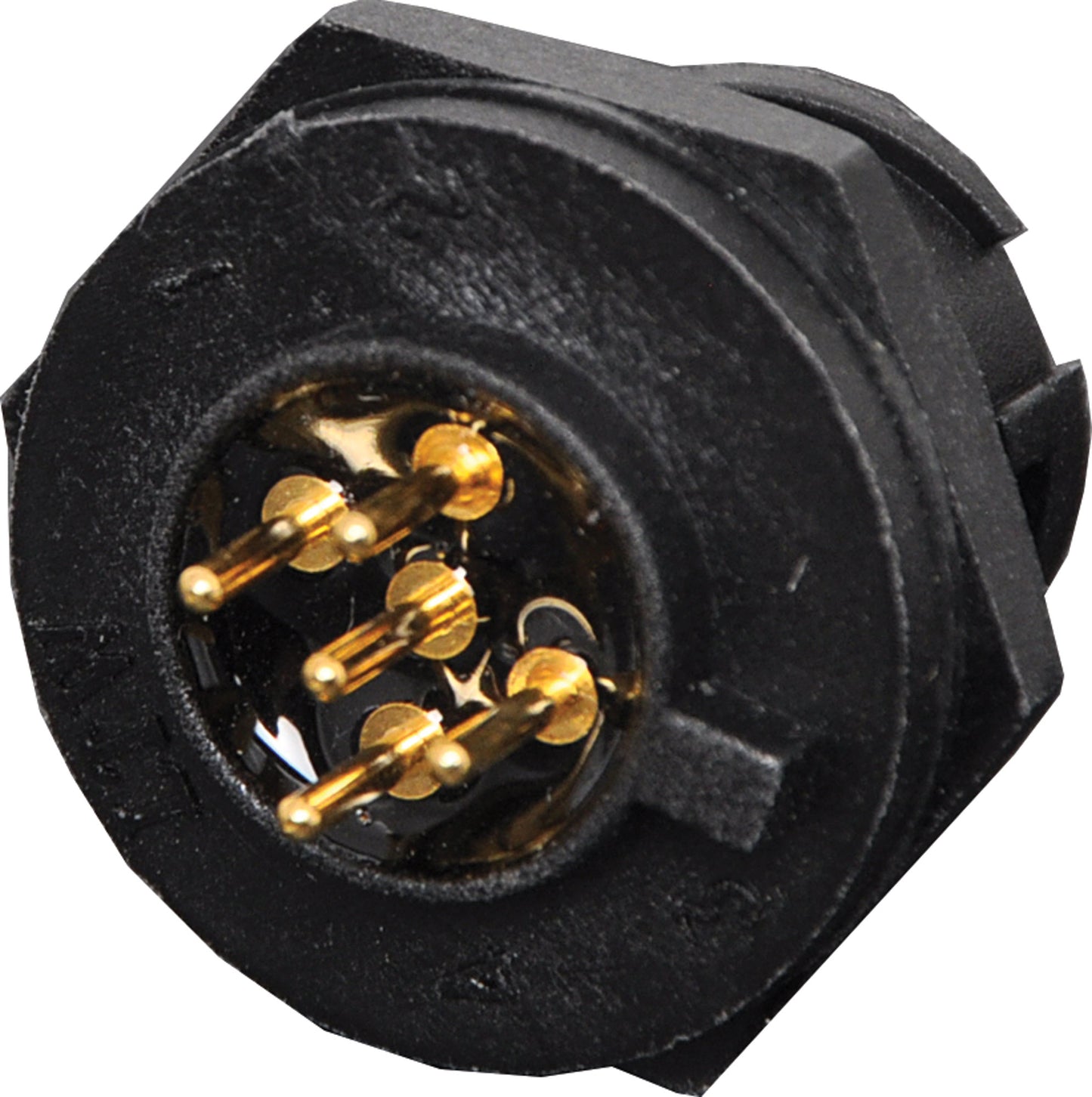

Waterproof IP67 rated 5 Pin Male Chassis Mount PCB Connector. Lock type mounting ring.

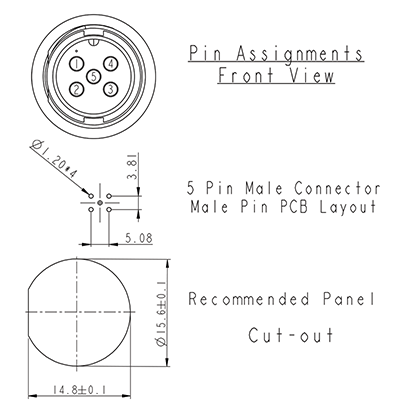

Dimension Drawing

Specifications

Number of Contacts: 5
Gender: Male
Mounting Type: Panel Mount
Connector Size: Standard
Termination Method: Solder
Current Rating: 5A
IP Rating: IP67
Contact Gender: Male
Voltage Rating: 500 V dc
Mating Type: Bayonet
Body Orientation: Straight
Series: BD
Housing Material: Glass Fibre Reinforced Nylon
Contact Plating: Gold
Contact Material: Copper Alloy
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +105°C
