Circular Connector 8 Pin 5A Locking Male Chassis IP67 Waterproof Plug P9468A
Circular Connector 8 Pin 5A Locking Male Chassis IP67 Waterproof Plug P9468A
Regular price
$19.50
Regular price
Sale price
$19.50
Unit price
per
Taxes included.
Couldn't load pickup availability

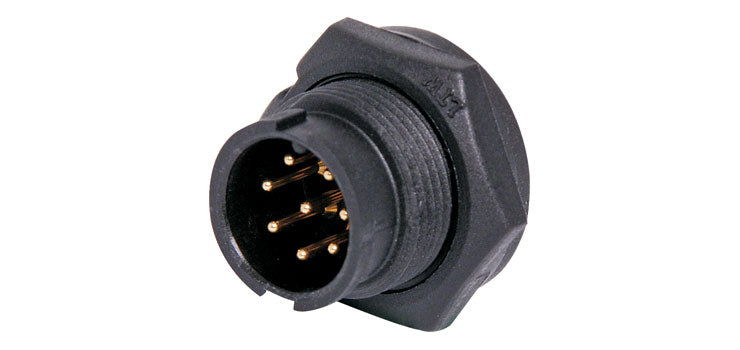

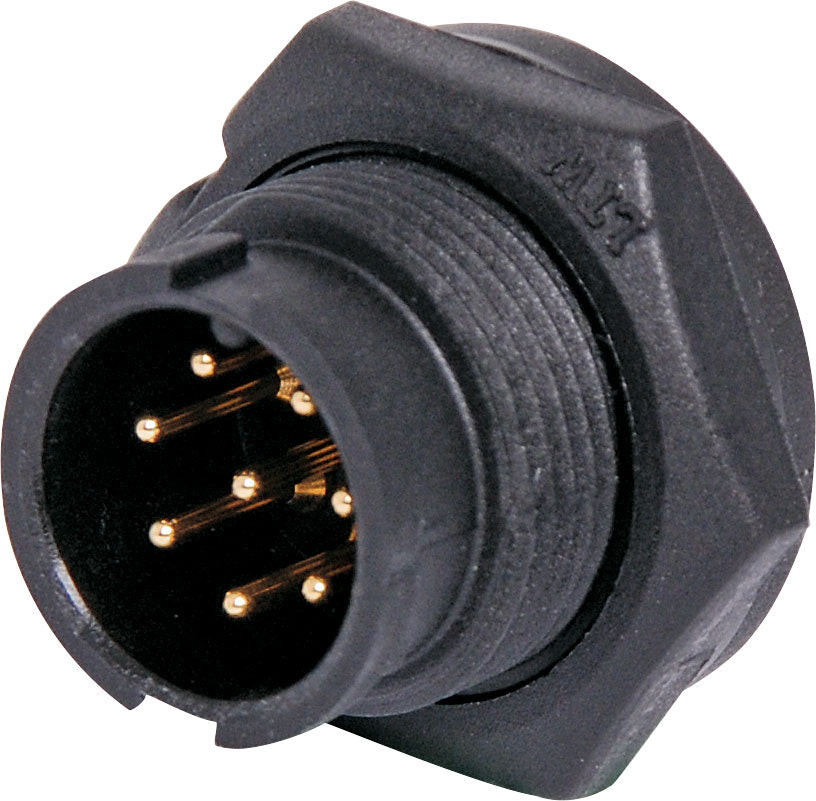

Waterproof IP67 rated 8 Pin Male Solder cup chassis connector for installations outdoors or in areas prone to moisture build up. Lock Type mating ring. 5A rated.
Specifications
- Number of Contacts: 8
- Gender: Male
- Mounting Type: Panel Mount
- Connector Size: Standard
- Termination Method: Solder
- Current Rating: 5A
- IP Rating: IP67
- Contact Gender: Male
- Voltage Rating: 500V dc
- Mating Type: Bayonet
- Body Orientation: Straight
- Series: BD
- Housing Material: Glass Fibre Reinforced Nylon
- Contact Plating: Gold
- Contact Material: Copper Alloy
- Maximum panel thickness: 4.0mm
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: +105°C
