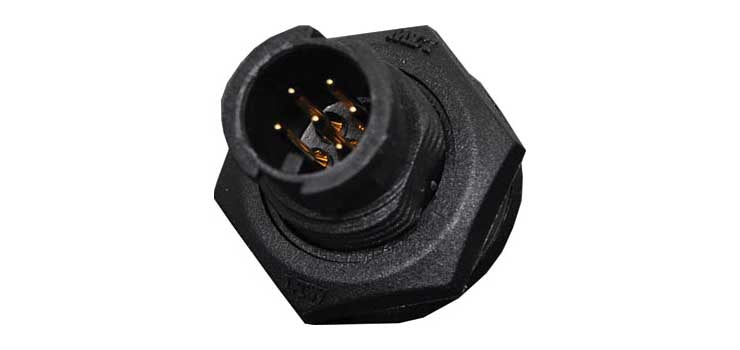

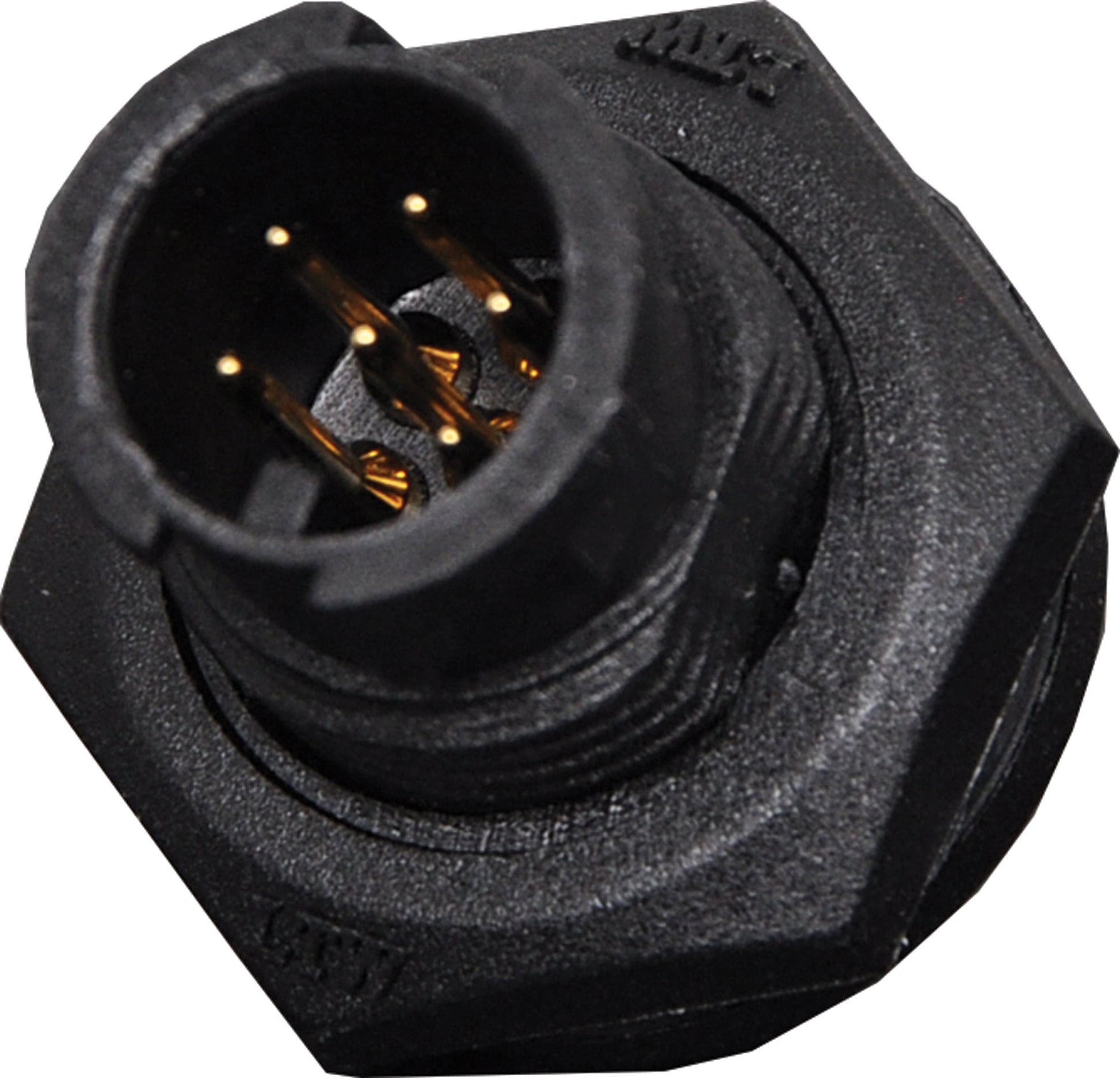

Circular Connectors 4 Pin 2A Locking Male Chassis IP66 Waterproof Plug P9364

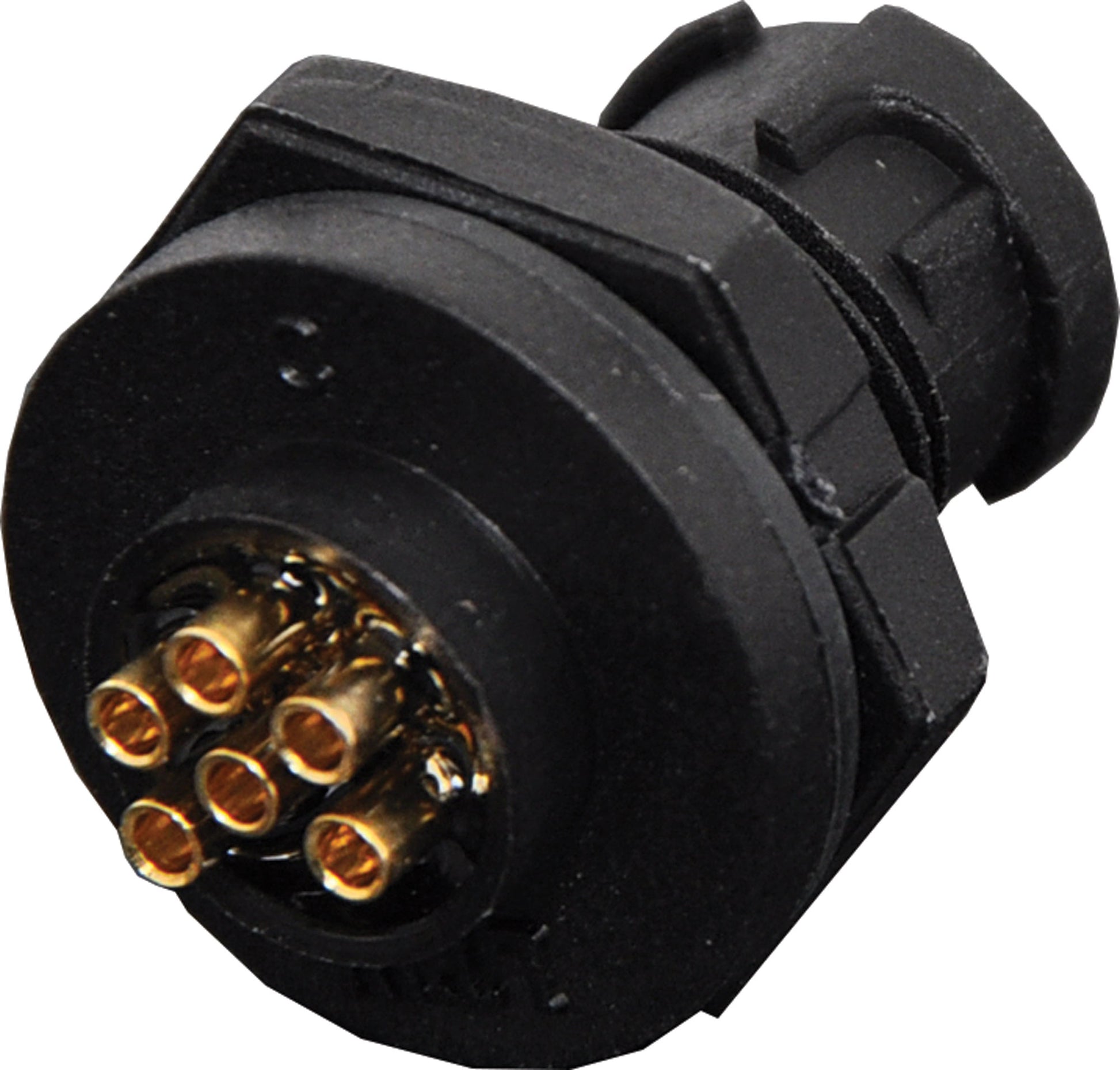

IP67 rated waterproof 2, 4 and 6 pin connectors for installations outdoors or in areas prone to moisture build up. 2 pin rated at 5A. 4 & 6 pin rated at 2A.

Connector Gender: Male connector
Mating Style: 2 point lock bayonet
Current Rating: 2A
No. of Contacts: 4 pins
Contact Gender: Male pin
Field installable: Solder
Connector body type: Front Fastened (See more details)
Backshell: Circular
Waterproof Rating: IP67,Unmated

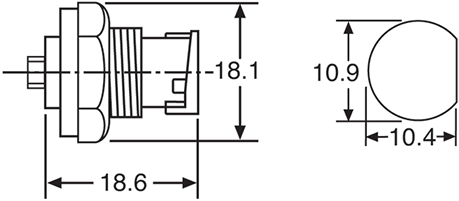

Panel Cut (mm): 10.9X10.4
Panel Thickness (mm): 5
Voltage rating: 300V
