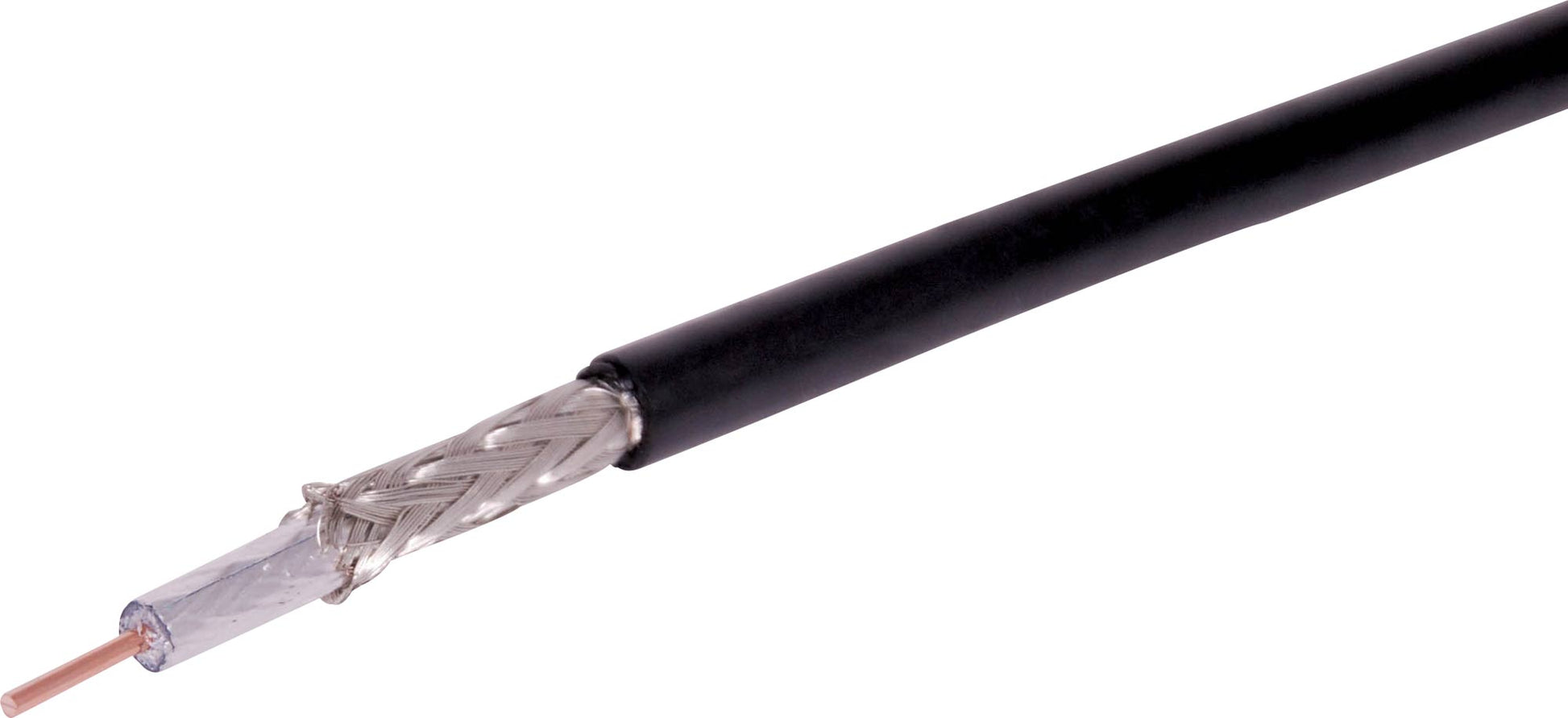

Coaxial Cable RF200 50 Ohm Low Loss Sold by the Meter W2227
Coaxial Cable RF200 50 Ohm Low Loss Sold by the Meter W2227
Regular price
$3.80
Regular price
Sale price
$3.80
Unit price
per
Taxes included.
Couldn't load pickup availability
A low loss 50 Ohm RF coaxial cable designed for amateur, CB radio and marine radio applications. Also known as LMR-200 or LL195 cabling.
Features
- Insulated by sign pressure, gas injected foamed dielectric
- Provide supper low attenuation loss in wider frequency range
- Maintain low loss and stable VSWR in high frequency against aging
- Suitable for Radio Transmission, Amateur Radio and Base Radio Antenna Station
Specifications
- Outside diameter: 4.95±0.15mm
- Shielding size: 16/7/0.12
- Conductor: 1.12mm Solid Bare copper wire
- Conductor area: 0.27mm2
- Insulation Nominal: 2.95mm Gas Injected foam PE
- Jacket Nominal: 4.95mm Black PVC
- Shield Material & Coverage: Bonded Aluminum Foil and 95% Tinned Copper Braid
- Nom Imp Ohm: 50
- Nom Vel Prop: 83%
- Nominal Capacitance PF/m: 80
Nominal Attenuation
- 30MHz : 5.8dB/100m
- 50MHz : 7.5dB/100m
- 150MHz : 13.1dB/100m
- 200MHz : 15.9dB/100m
- 450MHz : 22.8dB/100m
- 900MHz : 32.6dB/100m
- 1500MHz : 42.4dB/100m
- 1800MHz : 46.6dB/100m
- 2000MHz : 49.3dB/100m
- 2500MHz : 55.4dB/100m
- 5800MHz : 86.5dB/100m
