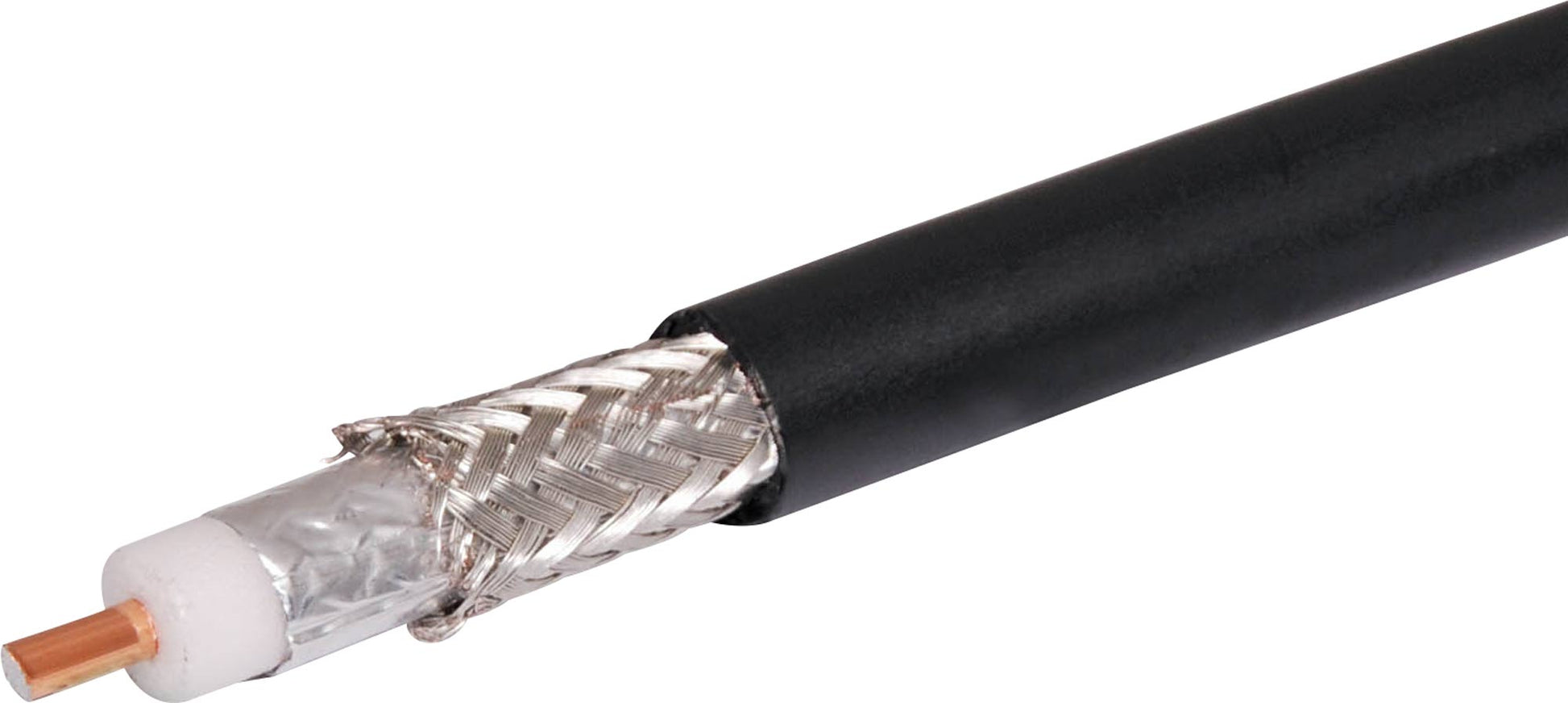

Coaxial Cable RF400 50 Ohm Low Loss Sold by the Meter W2228
Coaxial Cable RF400 50 Ohm Low Loss Sold by the Meter W2228
Regular price
$7.75
Regular price
Sale price
$7.75
Unit price
per
Taxes included.
Couldn't load pickup availability
A low loss cable for Ham, CB and marine communications.
Features
- Insulated by sign pressure, gas injected foamed dielectric
- Provide supper low attenuation loss in wider frequency range
- Maintain low loss and stable VSWR in high frequency against aging
- Suitable for Radio Transmission, Amateur Radio and Base Radio Antenna Station

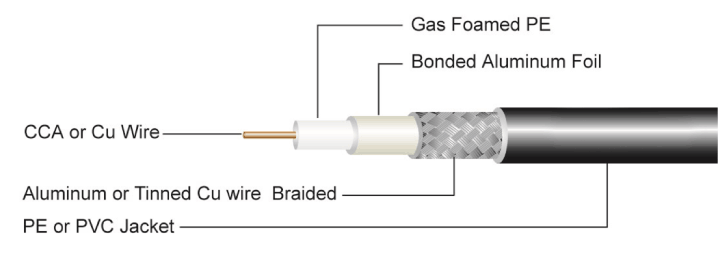

Specifications
- Outside diameter: 7.24±0.10mm
- Conductor: 2.74mm Solid Copper Clad Aluminum
- Conductor construction: 1 /2.74±0.03mm
- Insulation Nominal: 7.24mm Gas Injected foam PE
- Jacket Nominal: 10.3mm Black PE
- Shield Material & Coverage: Bonded Aluminum Foil and 85% Tinned Copper Braid
- Nom Imp Ohm: 50
- Nom Vel Prop: 85%
- Nominal Capacitance PF/m: 80
Nominal Attenuation
- - 50 : 2.9
- - 100 : 3.9
- - 200 : 5.7
- - 400 : 7.5
- - 900 : 13.0
- - 1000 : 13.6
- - 1500 : 17.0
- - 2000 : 20.1
