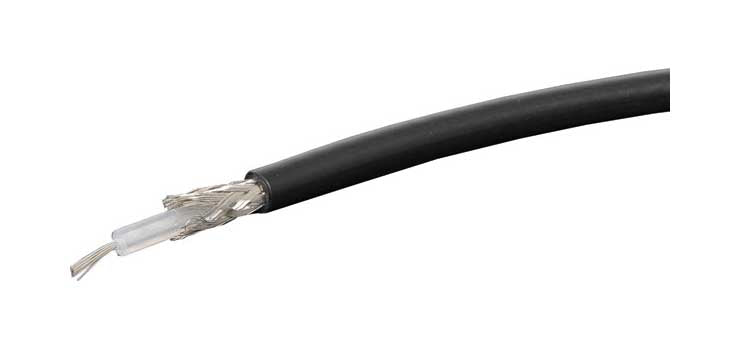

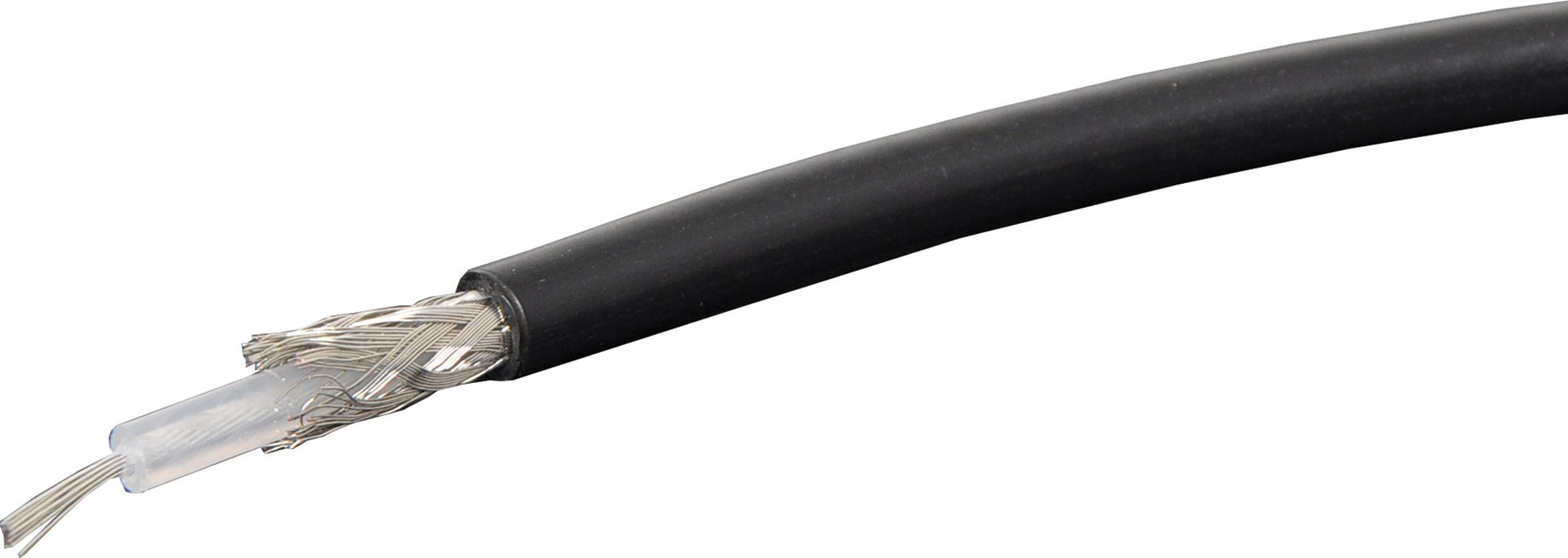

Coaxial Cable RG58C/U 50 Ohm Mil Spec Sold by the Meter W2230
Coaxial Cable RG58C/U 50 Ohm Mil Spec Sold by the Meter W2230
Regular price
$2.00
Regular price
Sale price
$2.00
Unit price
per
Taxes included.
Couldn't load pickup availability
Typically used in CBs, two way radios and marine applica- tions. Military MIL-C- 17 standard.
Features
- - Insulated by sign pressure, gas injected foamed dielectric
- - Provide supper low attenuation loss in wider frequency range
- - Maintain low loss and stable VSWR in high frequency against aging
- - Suitable for Radio Transmission, Amateur Radio and Base Radio Antenna Station

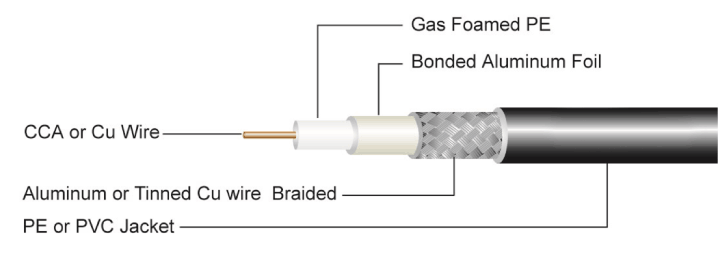

Specifications
- Outside diameter: 4.95
- Shielding size: 16/7/0.127
- Conductor Area: 0.48mm2
- Conductor: 19/0.18mm Stranded Tinned Copper
- Insulation Nominal: 2.95mm Solid Polythylene
- Loss @ 100MHz: 17.4dB/100m
- Jacket Nominal: 4.95mm Black PVC
- Shield Material & Coverage: 95% Tinned Copper Braid
- Nom Imp Ohm: 50
- Nom Vel Prop: 67%
- Nominal Capacitance PF/m: 101
Nominal Attenuation
- - 50 : 10.9
- - 100 : 16.4
- - 200 : 24.0
- - 400 : 37.9
- - 700 : 55.6
- - 900 : 65.8
- - 1000 : 70.7
