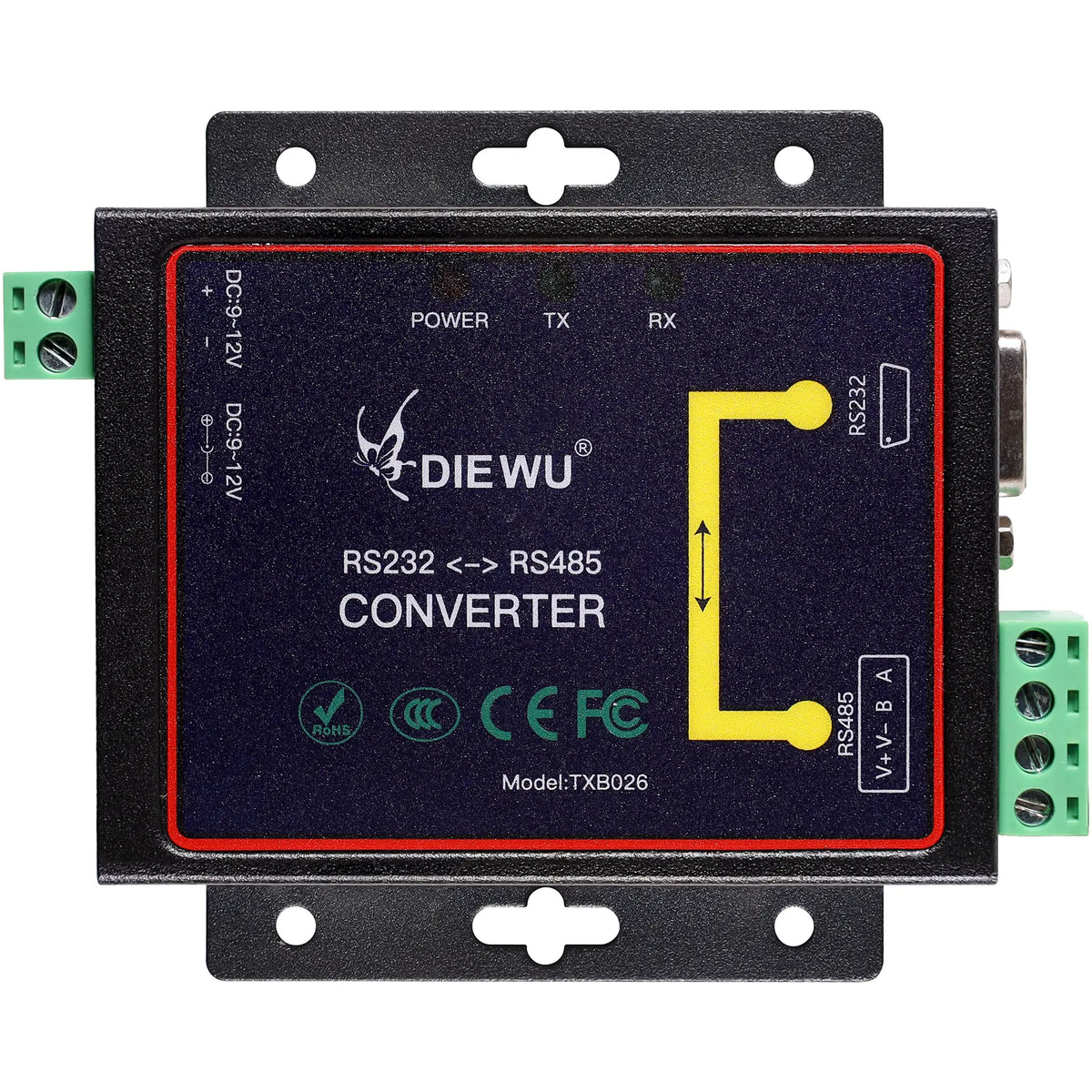

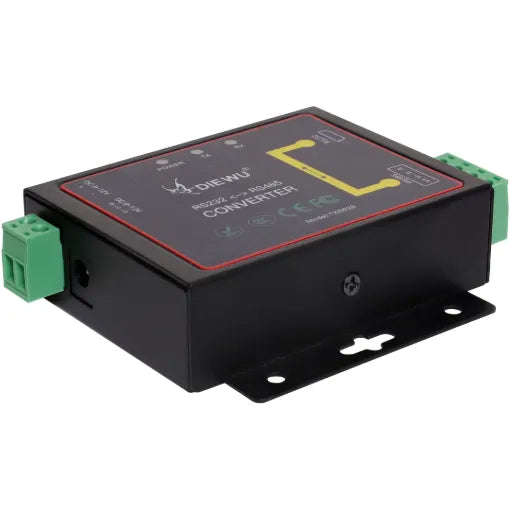

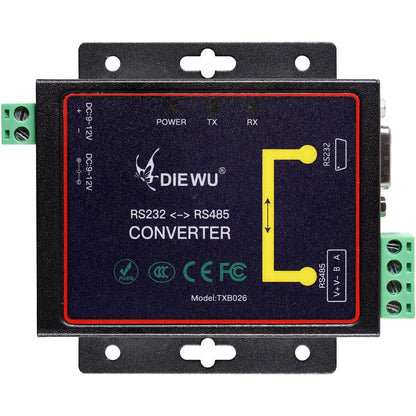

Converter RS232 To RS485 Converter D4209

Easy convert RS-232 signals into RS-485 signals allowing devices with incompatible hardware interfaces to exchange data. Ideally used with industrial automation, security systems and more. 9-12V DC input.

Specifications:

• Chipset: ZT323+ZT485
• Port Number: 1 x female com port, 1*RS485 port
• Standard: compatible with RS232 and RS485 standard
• LED Indicator: Power, TX, RX
• Baud rate: 300bps~115200bps
• Dimensions: 94x86x25mm
• Power Input: 9V-12V DC
• Power Consumption: 0.15W Max
• Operating Temperature: -10°C to 55°C
• Relative Humidity: 10%-90% (non-condensing)
• Storage Temperature: -40°C to 85%.
• Relative Humidity: 5%-90% (non-condensing
