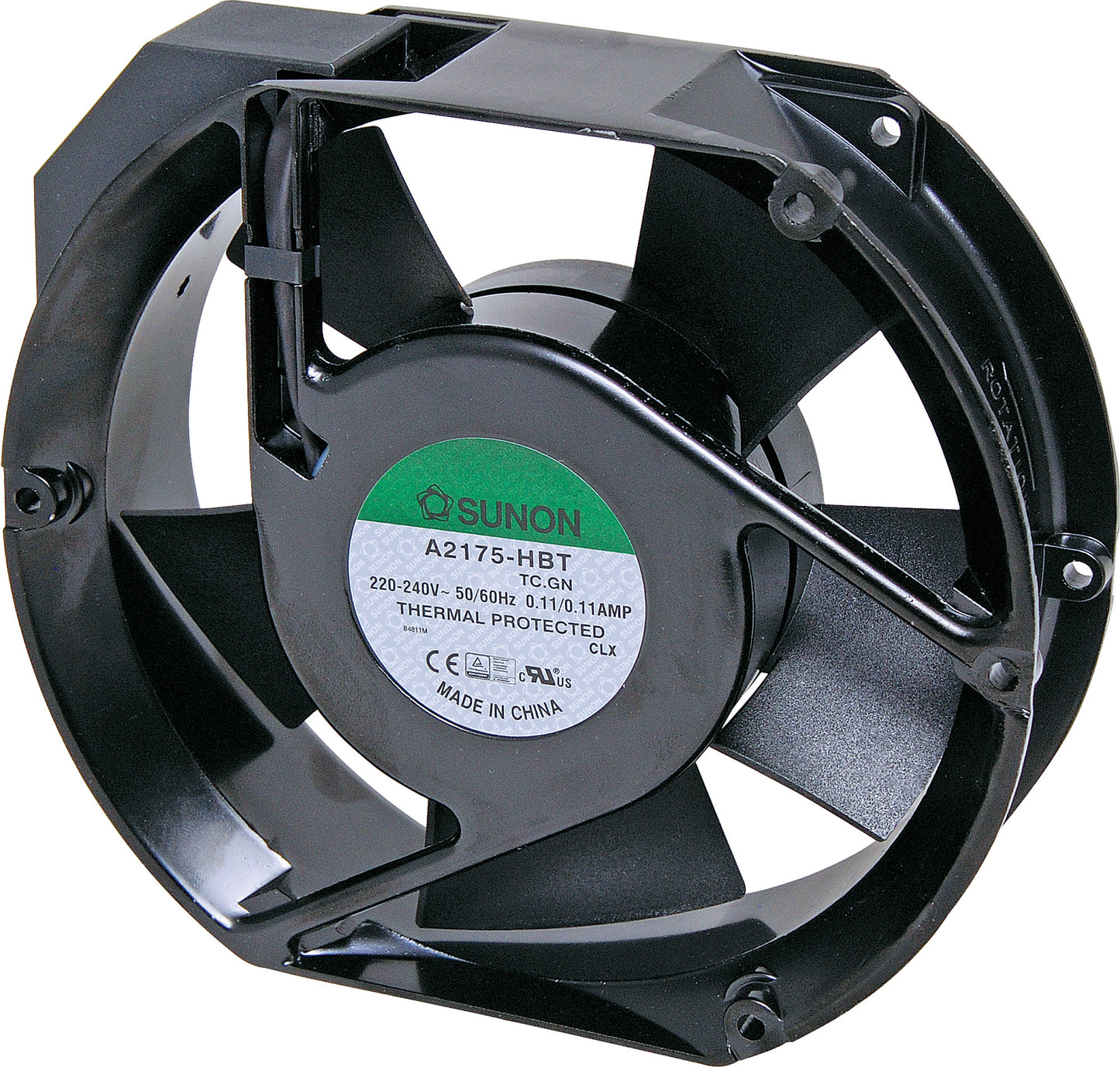

Sunon A2175-HBT.TC.GN 240V AC 171mm Axial Ball Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings.
Note: Other models are available for your specific OEM requirements, please contact us for details.
Specifications
Mechanical Characteristics
- Motor Design: Alveolate motor construction
- Motor Protection: Thermal protected
- Bearing System: Lubricated sleeve bearing system
- Frame Material: Die-cast aluminium
- Blade Material: PC of UL94V-0
- Direction of Rotation: Counter clockwise viewed from the front of the fan blade
- Mounting Holes: 8 x 4.5mm holes
- Weight: 908g

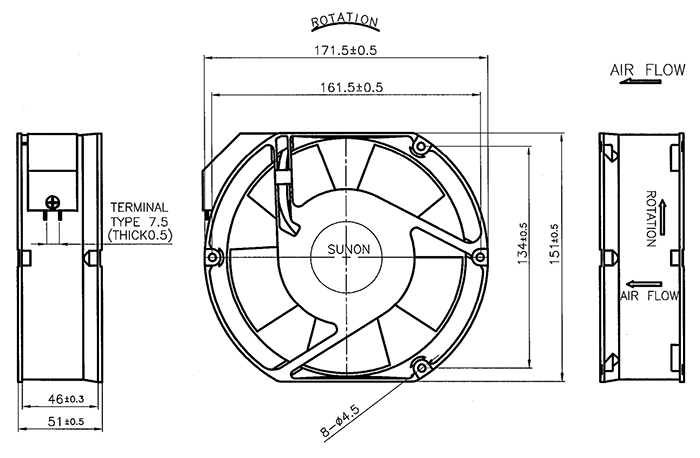

- Dimensions: 171 x 151 x 51mm
Electrical Characteristics
- Rated Voltage: 220-240V AC at 50/60Hz
- Rated Current: 0.11/0.11A
- Rated Power: 25/26W
- Operating Voltage Range: 150-250V AC
- Starting Voltage: 150V AC (25°C Power On/Off)
- Operating Temperature: -10°C ~ +70°C
- Storage Temperature: -40°C ~ +70°C
Performance Characteristics
- Rated Speed: 2800/3200 RPM ±10%
- Air Flow: 203/239 CFM
- Static Pressure: 0.62/0.69 Inch-H2O
- Noise Level: 51/58dB(A)
- Insulation Resistance: 500MΩ (min) at 500V DC
- Dielectric Strength: 1800V AC for one second
