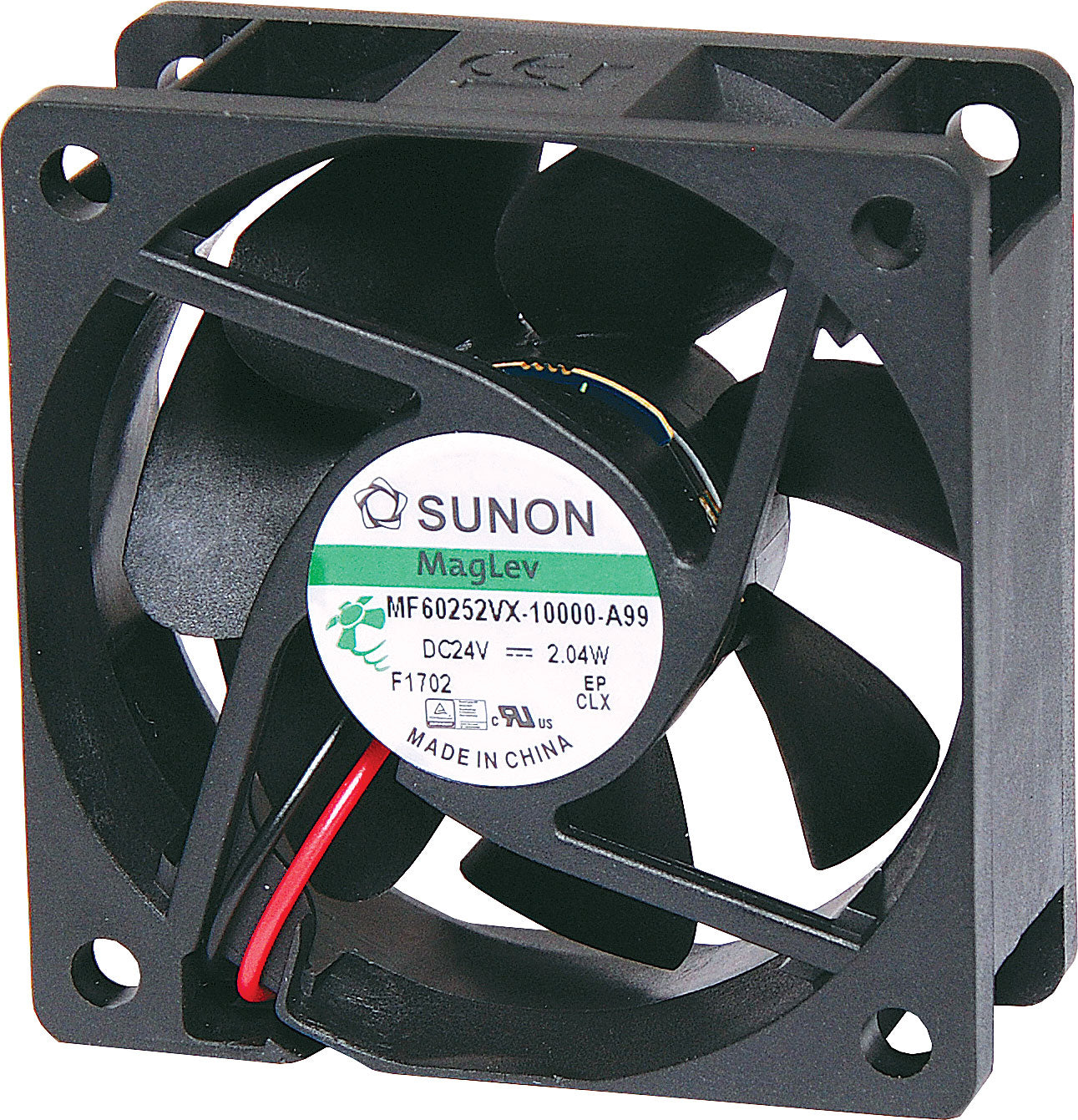

Sunon MF60252VX-1000U-A99 24V DC 60mm Maglev/Vapo Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings.
Note: Other models are available for your specific OEM requirements, please contact us for details.

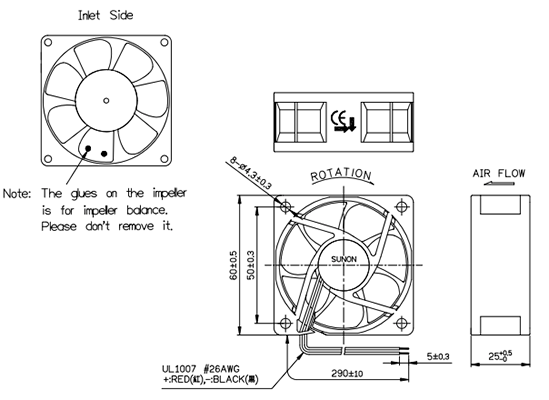

Specifications
Mechanical Characteristics
- Motor Design: Single phase, 4 poles brushless DC motor
- Bearing System: Vapo bearing system
- Frame Material: Thermoplastic PBT of UL94V-0
- Blade Material: Thermoplastic PBT of UL94V-0
- Direction of Rotation: Counter clockwise viewed from the front of the fan blade
- Mounting Holes: 8x 4.3mm holes
- Weight: 45g
- Dimensions: 60 x 60 x 25mm
Electrical Characteristics
- Rated Voltage: 24V DC
- Rated Current: 80mA (92mA max)
- Rated Power Consumption: 1.92W (2.21W max)
- Safety Power Consumption: 2.04W
- Operating Voltage Range: 8~27.6V DC
- Starting Voltage: 8V DC (25°C Power On/Off)
- Operating Temperature: -10°C ~ +70°C
- Storage Temperature: -40°C ~ +70°C
Performance Characteristics
- Rated Speed: 5200 RPM ±15% at rated voltage
- Air Flow: 27.0 CFM
- Static Pressure: 0.31 Inch-H2O
- Noise Level: 31.5dB(A)
- Insulation Class: UL Class A
- Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
- Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
- Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL
- Protection: Automatic restart, polarity protection
