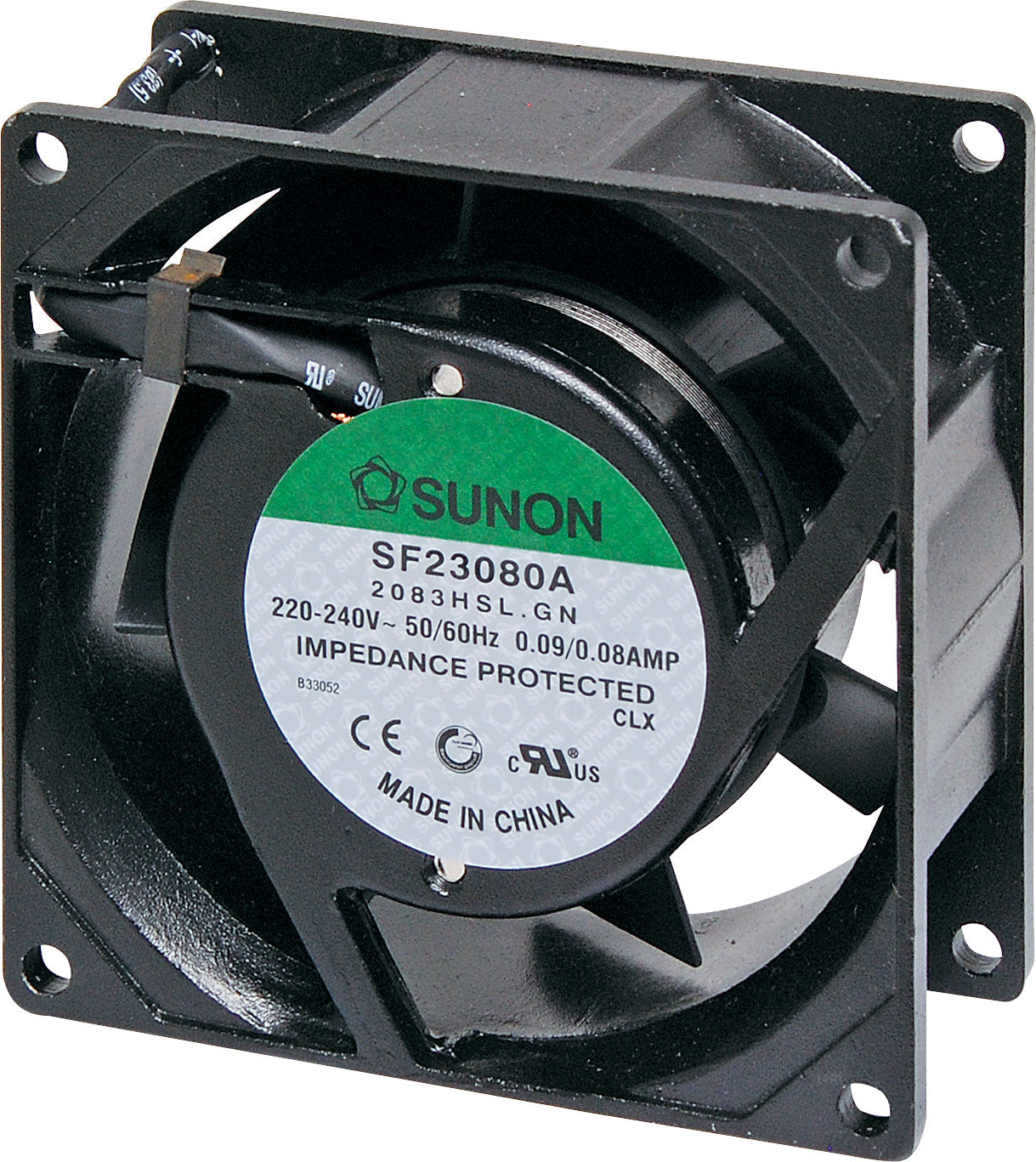

Sunon SF23080A-2083HSL.GN 240V AC 80mm Sleeve Bearing Cooling Fan with die cast aluminium frame. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings.
Note: Other models are available for your specific OEM requirements, please contact us for details.
Specifications
Mechanical Characteristics
- Motor Design: Shaded pole motor construction
- Motor Protection: Impedance protected
- Bearing System: Lubricated sleeve bearing system
- Frame Material: Die-cast aluminium
- Blade Material: Thermoplastic PBT of UL 94V-0
- Direction of Rotation: Counter clockwise viewed from the front of the blade
- Lead Wire: UL3266, 24AWG, Grey

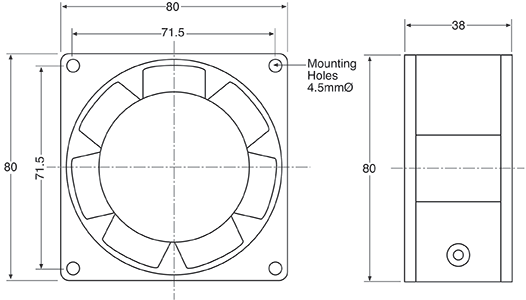

- Mounting Holes: 8x 4.5mm holes
- Weight: 340g
- Dimensions: 80 x 80 x 38mm
Electrical Characteristics
- Rated Voltage: 220-240V AC
- Rated Current: 0.09/0.08A
- Rated Power: 18/16W
- Operating Voltage Range: 185-245V AC
- Starting Voltage: 185V AC (25°C Power On/Off)
- Operating Temperature: -10°C ~ +70°C
- Storage Temperature: -40°C ~ +70°C
Performance Characteristics
- Rated Speed: 2300/2750 RPM ±10%
- Air Flow: 23.0/30.0 CFM
- Static Pressure: 0.12/0.18 Inch-H2O
- Noise Level: 31.0/35.0dB(A)
- Insulation Resistance: 500MΩ (min) at 500V DC
- Dielectric Strength: 1500V AC for one second
