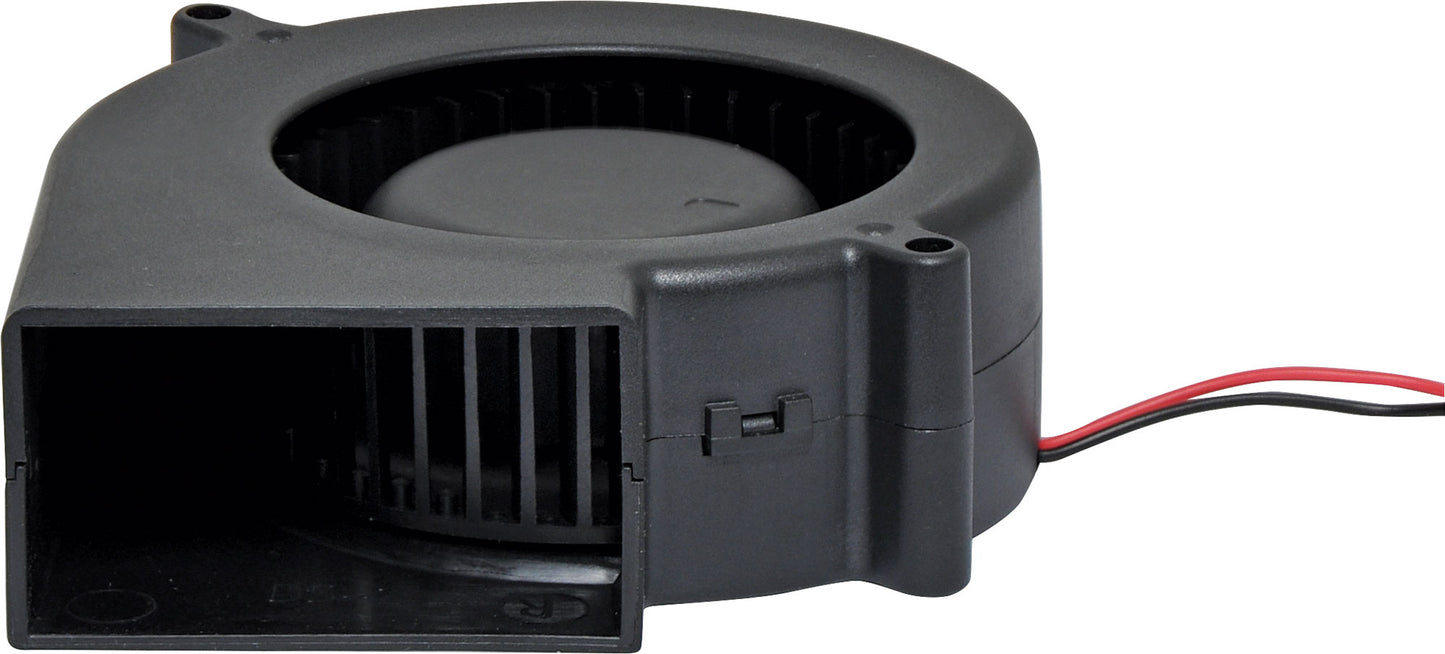

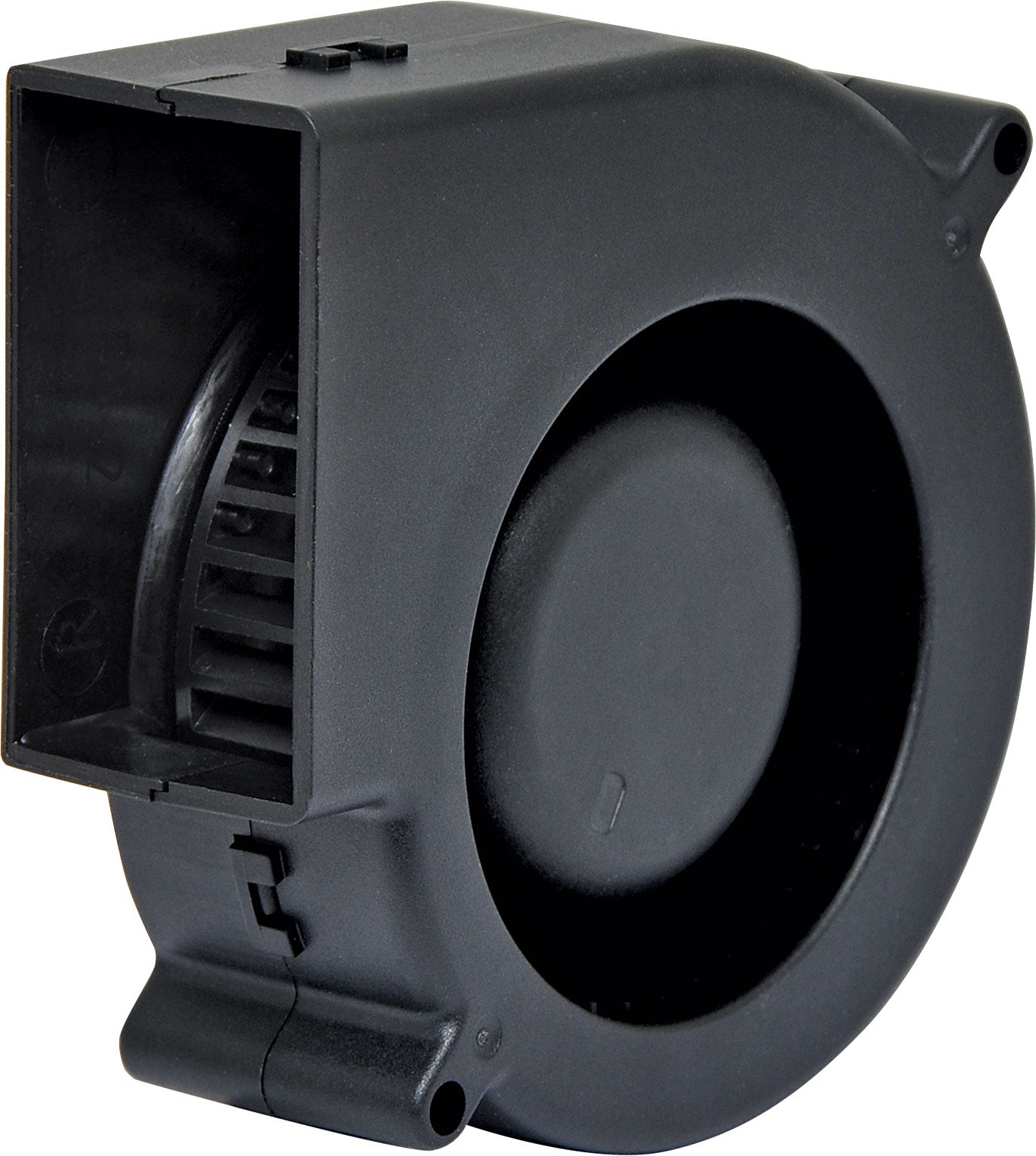

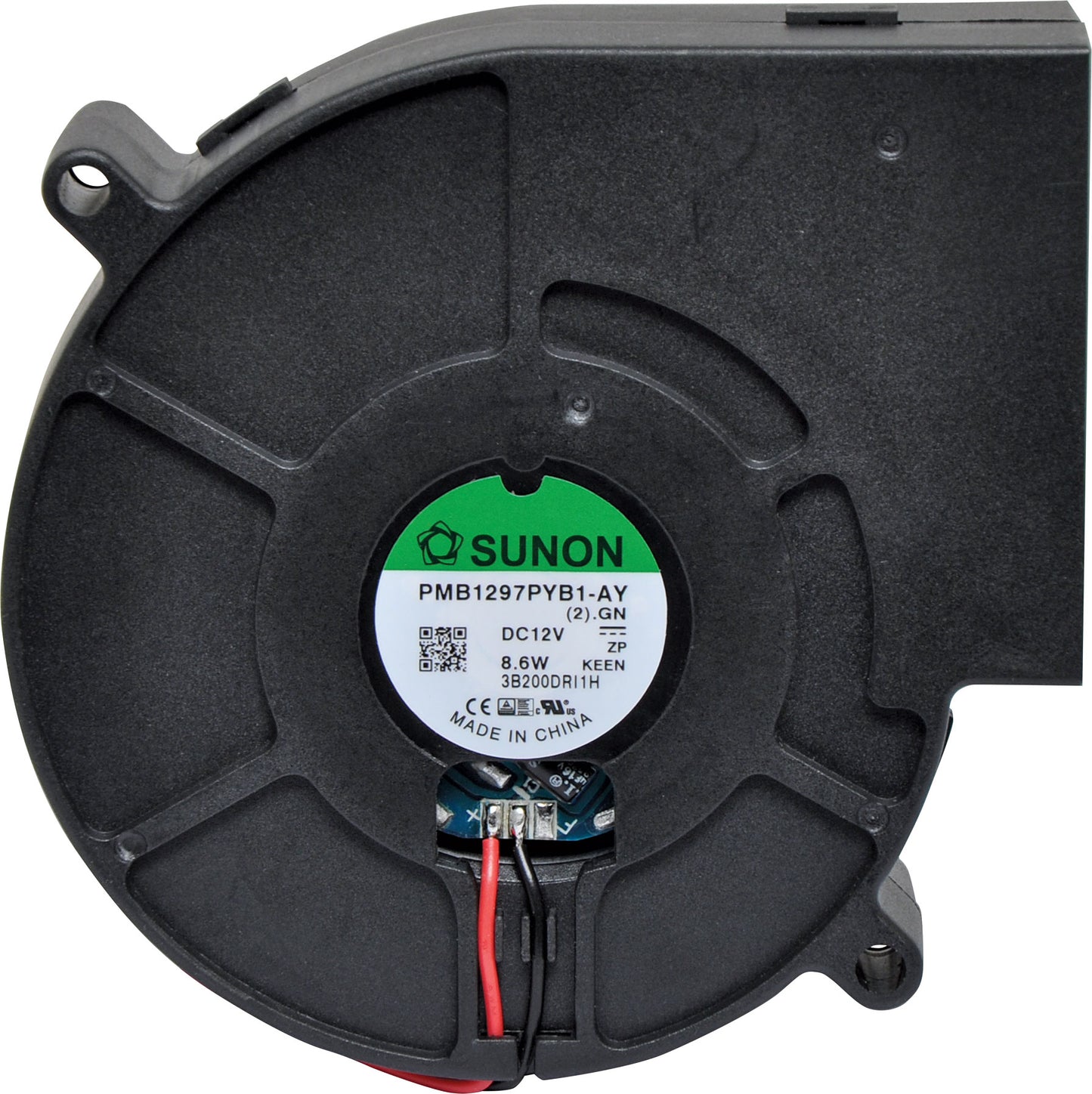

A 12V DC 97mm Sunon Ball Bearing Cooling Fan (PMB1297PYB1-AY) with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon blowers are manufactured to a very high standard and hold CSA and UL listings.
Note: Other models are available for your specific OEM requirements, please contact us for details.
Specifications
Mechanical Characteristics
- Motor Design: 2 phases, 4 poles brushless DC motor
- Bearing System: Precision ball bearing system
- Frame Material: Thermoplastic PBT of UL94V-0
- Blade Material: Thermoplastic PBT of UL94V-0
- Direction of Rotation: Single direction exhaust
- Mounting Holes: 2x 4.5mm holes
- Weight: 185g

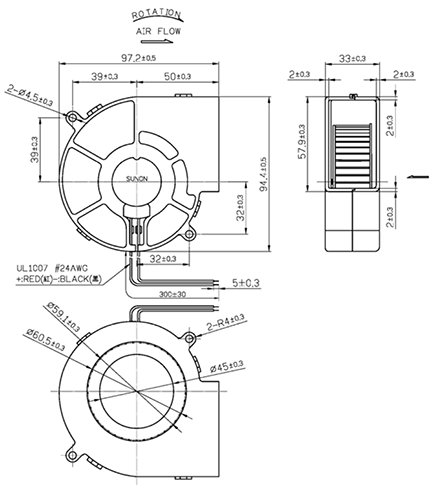

- Dimensions: 97 x 94 x 33mm
Electrical Characteristics
- Rated Voltage: 12V DC
- Rated Current: 600mA
- Rated Power: 7.2W
- Operating Voltage Range: 6~12V DC
- Starting Voltage: 6V DC (25°C Power On/Off)
- Operating Temperature: -10°C ~ +70°C
- Storage Temperature: -40°C ~ +70°C
Performance Characteristics
- Rated Speed: 3600 RPM ±10%
- Air Flow: 30.5 CFM
- Static Pressure: 0.92 Inch-H2O
- Noise Level: 55.8dB(A)
- Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
- Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
- Protection: Automatic restart, polarity protection
