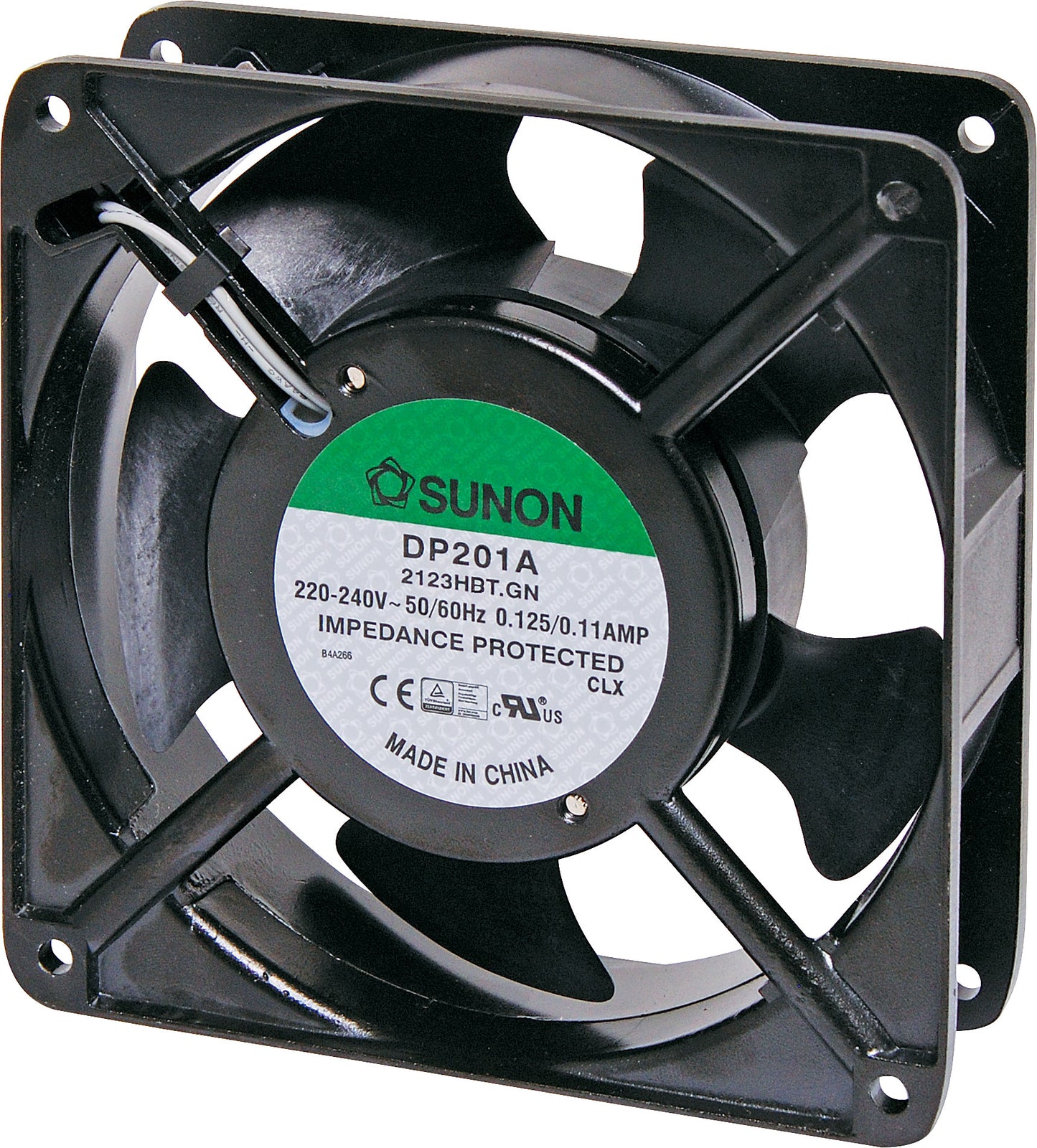

A 240V AC 120mm Sunon Ball Bearing Cooling Fan (#DP201A/2123HBT.GN) with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings.
Note: Other models are available for your specific OEM requirements, please contact us for details.
Specifications
Mechanical Characteristics
- Motor Design: Shaded pole motor construction
- Motor Protection: Impedance protected
- Bearing System: Precision ball bearing system
- Frame Material: Die-cast aluminium
- Blade Material: Thermoplastic PBT of UL94V-0
- Direction of Rotation: Counter clockwise viewed from the front of the fan blade

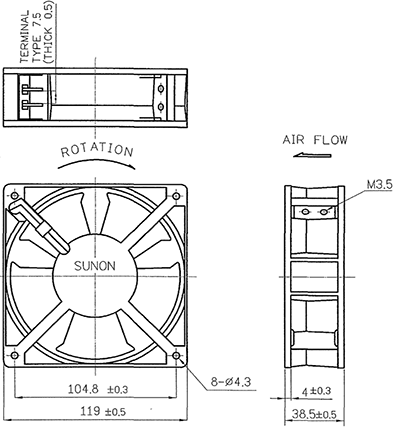

- Mounting Holes: 8x 4.3mm holes
- Weight: 550g
- Dimensions: 120 x 120 x 38mm
- Rated Voltage: 220-240V AC at 50/60Hz
- Rated Current: 0.125/0.11A
- Rated Power: 20/19W
- Operating Voltage Range: 185-245V AC
- Starting Voltage: 185V AC (25° Power On/Off)
- Operating Temperature: -10°C ~ +70°C
- Storage Temperature: -40°C ~ +70°C
- Rated Speed: 2750/3050 RPM ±10%
- Air Flow: 87/107 CFM
- Static Pressure: 0.26/0.32 Inch-H2O
- Noise Level: 45/50dB(A)
