Cooling Fan Ball Bearing 80mm 12VDC IP68 F0950

SKU: 9321758178256

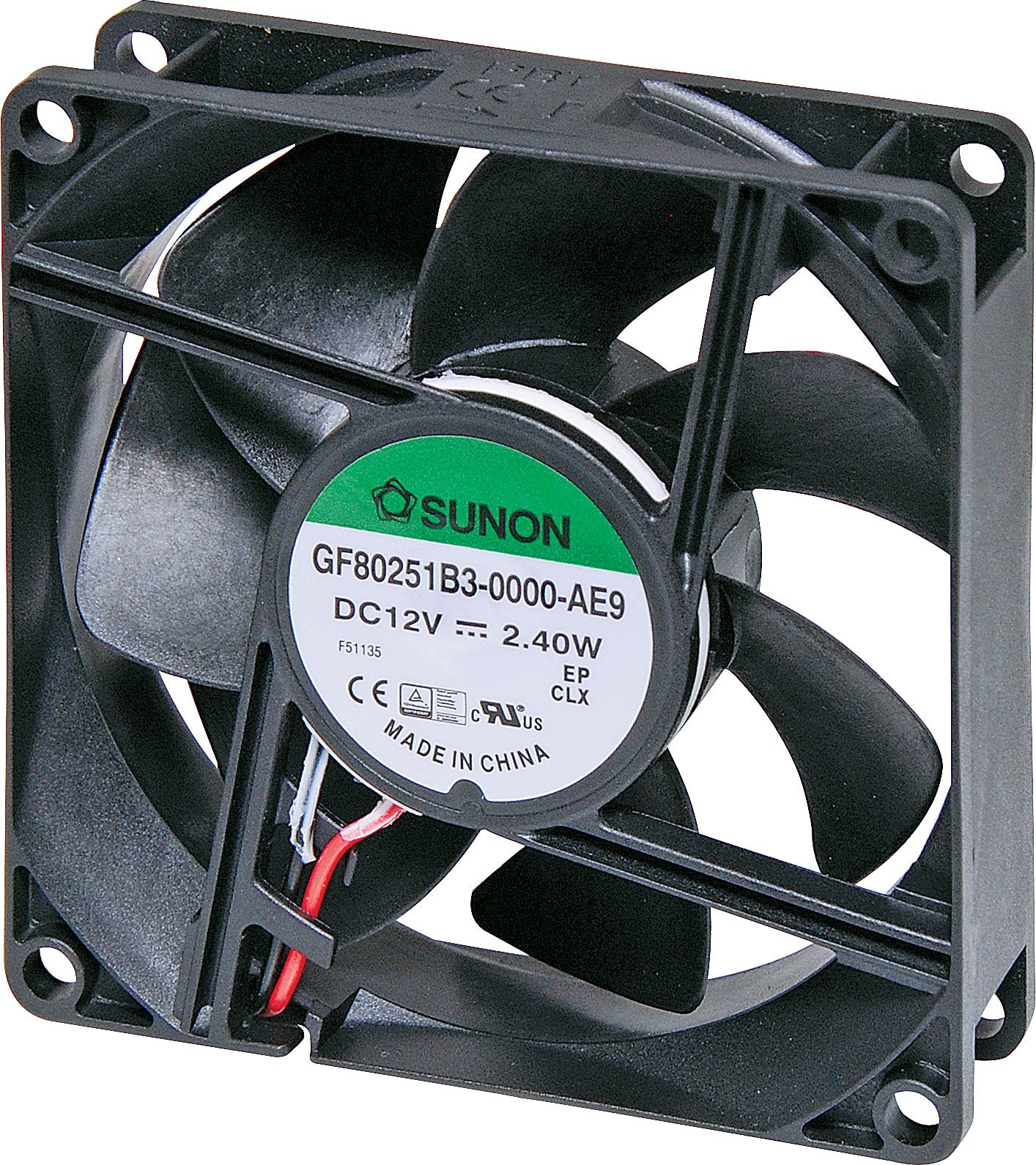

A 12V DC 80mm Sunon Ball Bearing Waterproof Cooling Fan (#GF80251B3-0000-AE9) with thermoplastic frame. This model is IP68 rated for use in areas exposed to dust and moisture. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Data Sheet

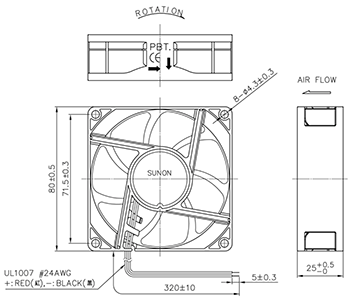

Mechanical Characteristics
  • Motor Design: Single phase, 4 poles brushless DC motor
  • Bearing System: Precision ball bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 105g
  • Dimensions: 80 x 80 x 25mm
Electrical Characteristics
  • Rated Voltage: 12V DC
  • Rated Current: 200mA (230mA max)
  • Rated Power Consumption: 2.40W (2.76W max)
  • Operating Voltage Range: 6~13.8V DC
  • Starting Voltage: 6V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C
Performance Characteristics
  • Rated Speed: 4200 RPM ±10% at rated voltage
  • Air Flow: 53 CFM
  • Static Pressure: 0.30 Inch-H2O
  • Noise Level: 44.5dB(A)
  • Insulation Class: UL Class A
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 70,000 hours at 40°C, 65% RH, 90% CL
  • Protection: Automatic restart
