A 240V AC 80mm Sunon Ball Bearing Cooling Fan (#SF23080A/2083HBL) with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings.
Note: Other models are available for your specific OEM requirements, please contact us for details.
Specifications
Mechanical Characteristics
- Motor Design: Shaded pole motor construction
- Motor Protection: Impedance protected
- Bearing System: Precision ball bearing system
- Frame Material: Die-cast aluminium
- Blade Material: Thermoplastic PBT of UL94V-0
- Direction of Rotation: Counter clockwise viewed from the front of the fan blade
- Mounting Holes: 8x 4.3mm holes
- Weight: 340g

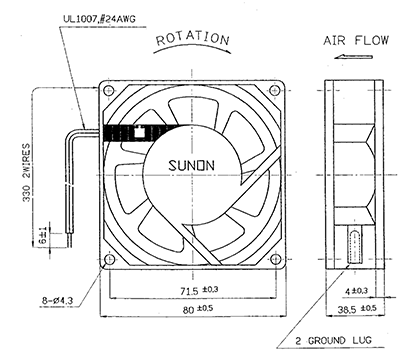

- Dimensions: 80 x 80 x 38mm
- Rated Voltage: 220-240V AC at 60/50Hz
- Rated Current:
- Rated Power:
- Operating Voltage Range: 185-245V AC
- Starting Voltage: 185V AC (25°C Power On/Off)
- Operating Temperature: -10°C ~ +70°C
- Storage Temperature: -40°C ~ +70°C
- Rated Speed: 2400/2850 RPM ±10%
- Air Flow: 24/31 CFM
- Static Pressure: 0.13/0.19 Inch-H2O
- Noise Level: 32/36.5dB(A)
