Cooling Fan Maglev Bearing 120mm 12VDC F1165

SKU: 9321758145135

Price:
$29.95

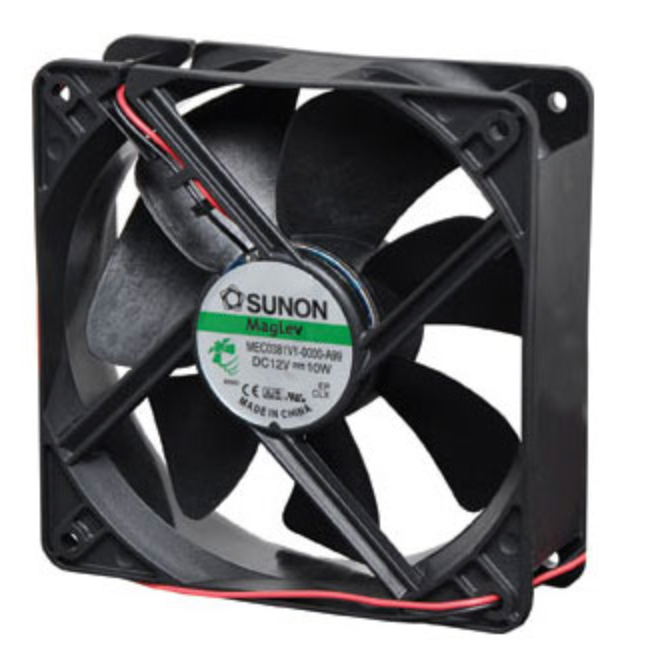

A 12V DC 120mm Sunon Maglev/Vapo Bearing Cooling Fan (#MEC0381V1-0000-A99) with thermoplastic frame. Designed for long-life and minimal noise operation. Sunonfans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Data Sheet

Specifications

Mechanical Characteristics
  • Motor Design: 2 phases, 4 poles brushless DC motor
  • Bearing System: Vapo bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade

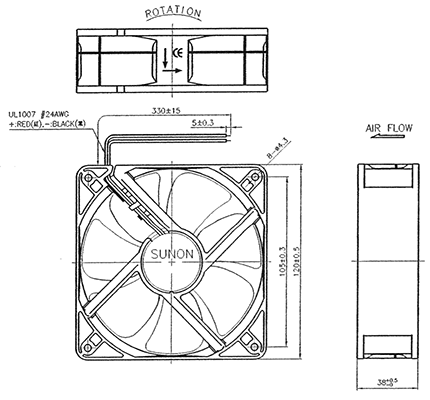

  • Mounting Holes: 8x 4.3mm holes
  • Weight: 218g
  • Dimensions: 120 x 120 x 38mm
Electrical Characteristics
  • Rated Voltage: 12V DC
  • Rated Current: 833mA
  • Rated Power Consumption: 10W
  • Operating Voltage Range: 6~13.8V DC
  • Starting Voltage: 6V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C
Performance Characteristics
  • Rated Speed: 3100 RPM ±10% at rated voltage
  • Air Flow: 138 CFM
  • Static Pressure: 0.36 Inch-H2O
  • Noise Level: 48dB(A)
  • Insulation Class: UL Class A
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL
  • Protection: Automatic restart, polarity protection
