Cooling Fan Maglev Bearing 40mm 12VDC F0010A

SKU: 9321758229712

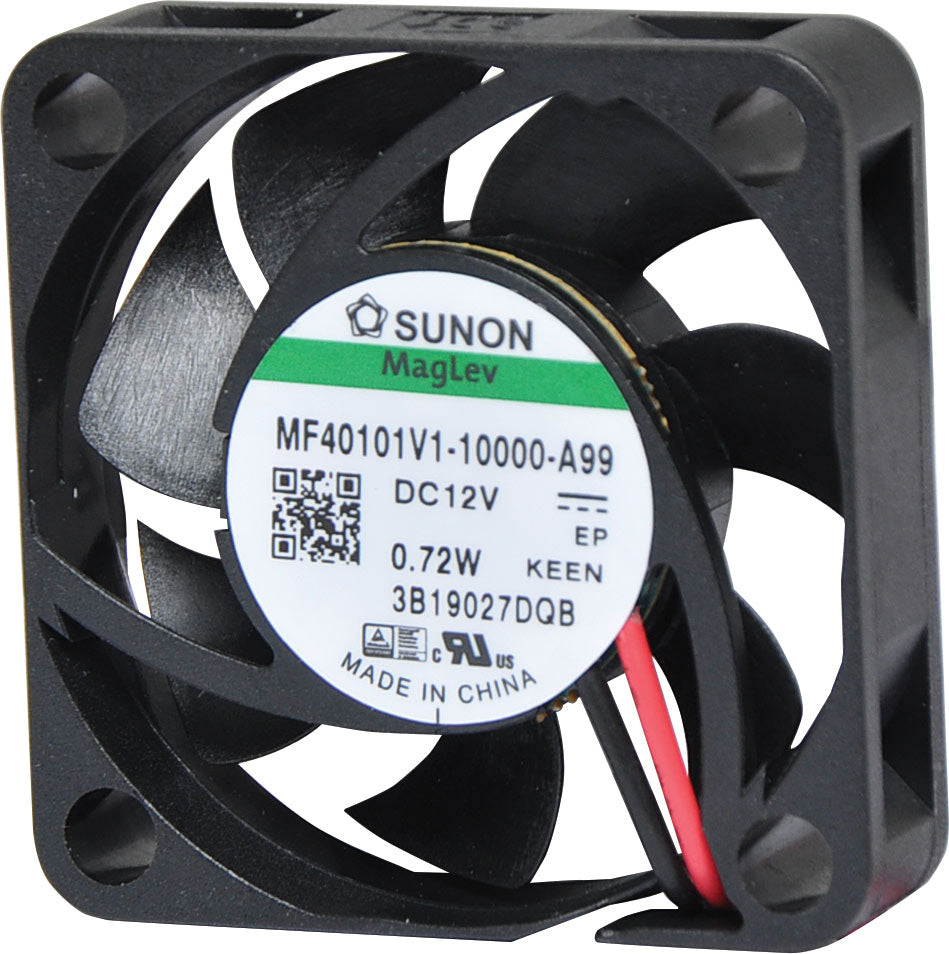

A 12V DC 40mm Sunon Maglev/Vapo Bearing Cooling Fan (#ME40101V1-0000-A99) with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

About Sunon Maglev Bearing Design
Sunon's maglev bearing system provides whisper quiet operation and superior resistance to dust and debris, extending the operational lifetime of the motor.

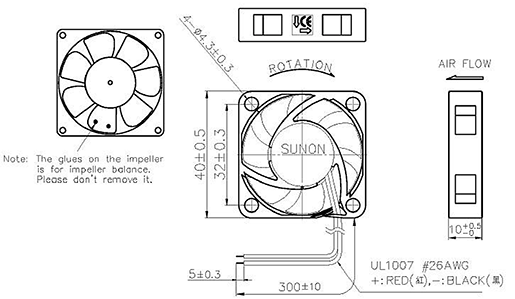

Data Sheet


  • Connection: Flying Lead
  • Air Flow: 8CFM
  • Input Power: 1.1W
  • Speed: 7000 RPM
  • Noise Level: 32dBA
  • Material: Thermoplastic
  • Size: 40 x 40 x 10mm
  • Bearing Type: Maglev
  • Operating temperature: -10 - +70 deg. C
  • Storage temperature: -40 - +70 deg. C
