Cooling Fan Sleeve Bearing 120mm 240VAC F1030

SKU: 9321758014325

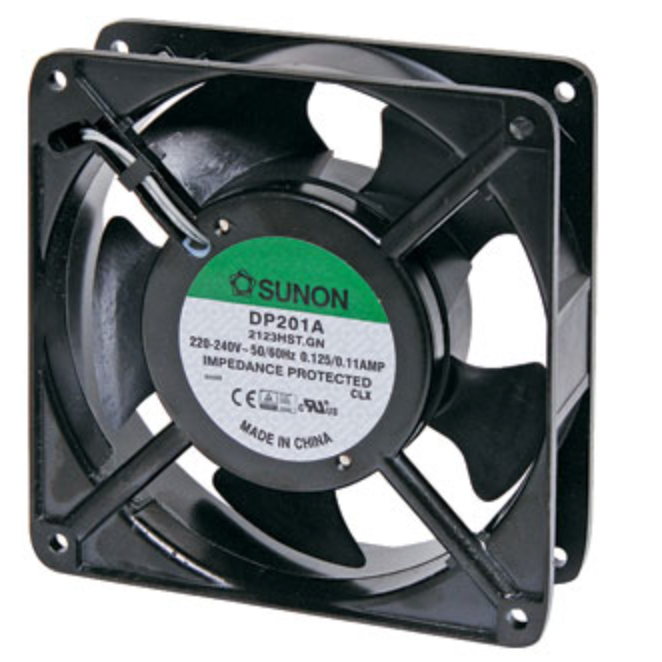

A 240V AC 120mm Sunon Sleeve Bearing Cooling Fan (#DP201A/2123HST.GN) with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Data Sheet


Mechanical Characteristics
  • Motor Design: Shaded pole motor construction
  • Motor Protection: Impedance protected
  • Bearing System: Lubricated sleeve bearing system
  • Frame Material:Die-cast aluminium
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade

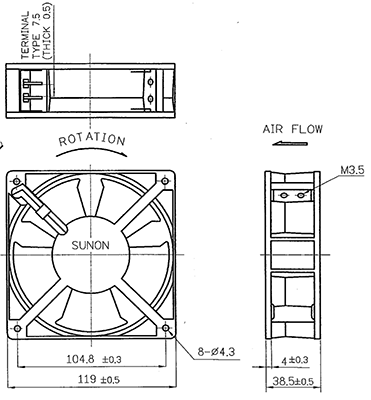

  • Mounting Holes: 8x 4.3mm holes
  • Weight: 550g
  • Dimensions: 120 x 120 x 38mm
Electrical Characteristics
  • Rated Voltage: 220-240V AC at 50/60Hz
  • Rated Current: 0.125/0.11A
  • Rated Power: 20/19W
  • Operating Voltage Range: 185-245V AC
  • Starting Voltage: 185V AC (25°C Power On/Off
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C
Performance Characteristics
  • Rated Speed: 2550/2900 RPM ±10%
  • Air Flow: 85/105 CFM
  • Static Pressure: 0.25/0.30 Inch-H2O
  • Noise Level: 43/48dB (A)
  • Insulation Resistance: 500MΩ (min) at 500V DC
  • Dielectric Strength: 1800V AC for one second
