Cooling Fan Sleeve Bearing 60mm 12VDC F1045

SKU: 9321758039465

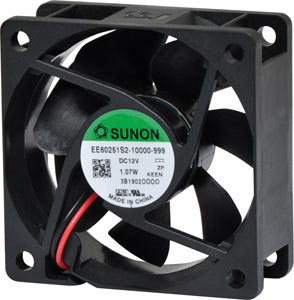

A 12V DC 60mm Sunon Sleeve Bearing Cooling Fan (#EB60251S2-0000-999) with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Data Sheet

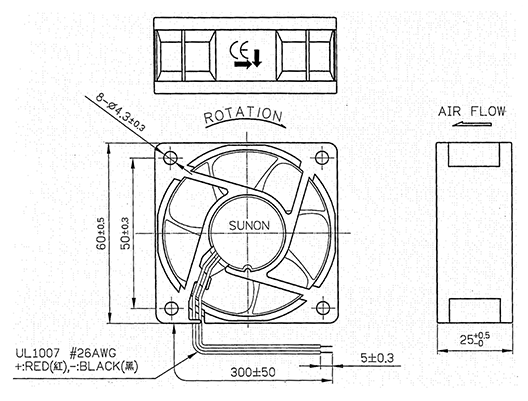

Mechanical Characteristics
  • Motor Design: 2 phases, 4 poles brushless DC motor
  • Bearing System: Lubricated sleeve bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 45g
  • Dimensions: 60 x 60 x 25mm
Electrical Characteristics
  • Rated Voltage: 12V DC
  • Rated Current: 85mA (98mA max)
  • Rated Power Consumption: 1.02W (1.18W max)
  • Safety Power Consumption: 1.07W
  • Operating Voltage Range: 4.5~13.8V DC
  • Starting Voltage: 4.5V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C
Performance Characteristics
  • Rated Speed: 3800 RPM ±15% at rated voltage
  • Air Flow: 19.3 CFM
  • Static Pressure: 0.15 Inch-H2O
  • Noise Level: 22.0dB(A)
  • Insulation Class: UL Class A
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for once minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 35,000 hours at 40°C, 65% RH, 90% CL
