Cooling Fan Sleeve Bearing Slimline 120mm 240VAC F1028

SKU: 9321758070208

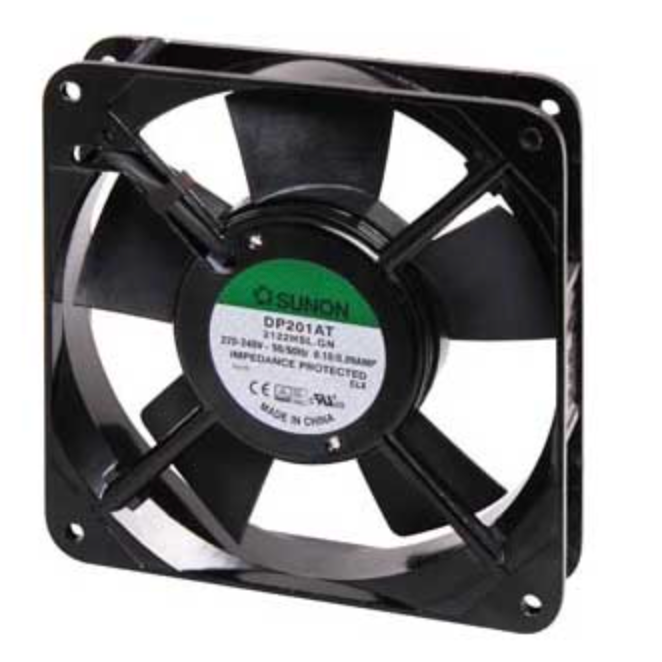

A 240V AC 120mm Sunon Sleeve Bearing Cooling Fan (#DP201AT/2122HSL) with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Data Sheet

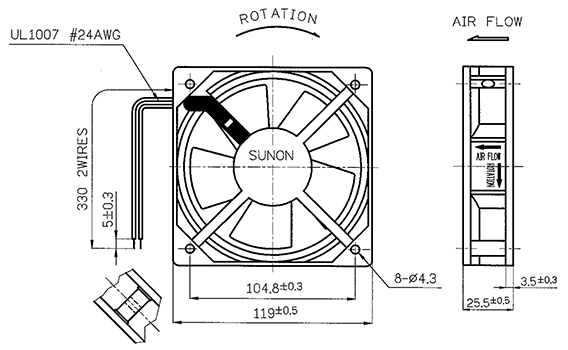

Mechanical Characteristics
  • Motor Design: Shaded pole motor construction
  • Motor Protection: Impedance Protection
  • Bearing System: Lubricated sleeve bearing system
  • Frame Material: Die-cast aluminium
  • Blade Material: Thermoplastic PBT of UL 94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 295g
  • Dimensions: 120 x 120 x 25mm
Electrical Characteristics
  • Rated Voltage: 220-240V AC at 50/60Hz
  • Rated Current: 0.09/0.08A
  • Safety Current: 0.10/0.09A
  • Rated Power: 18/16.5W
  • Operating Voltage Range: 185-245V AC
  • Starting Voltage: 185V AC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C
Performance Characteristics
  • Rated Speed: 2000/2300 RPM ±10%
  • Air Flow: 64/78 CFM
  • Static Pressure: 0.13/0.16 Inch-H2O
  • Noise Level: 43/46dB(A)
  • Insulation Resistance: 500MΩ (min) at 500V DC
  • Dielectric Strength: 1500V AC for one second
