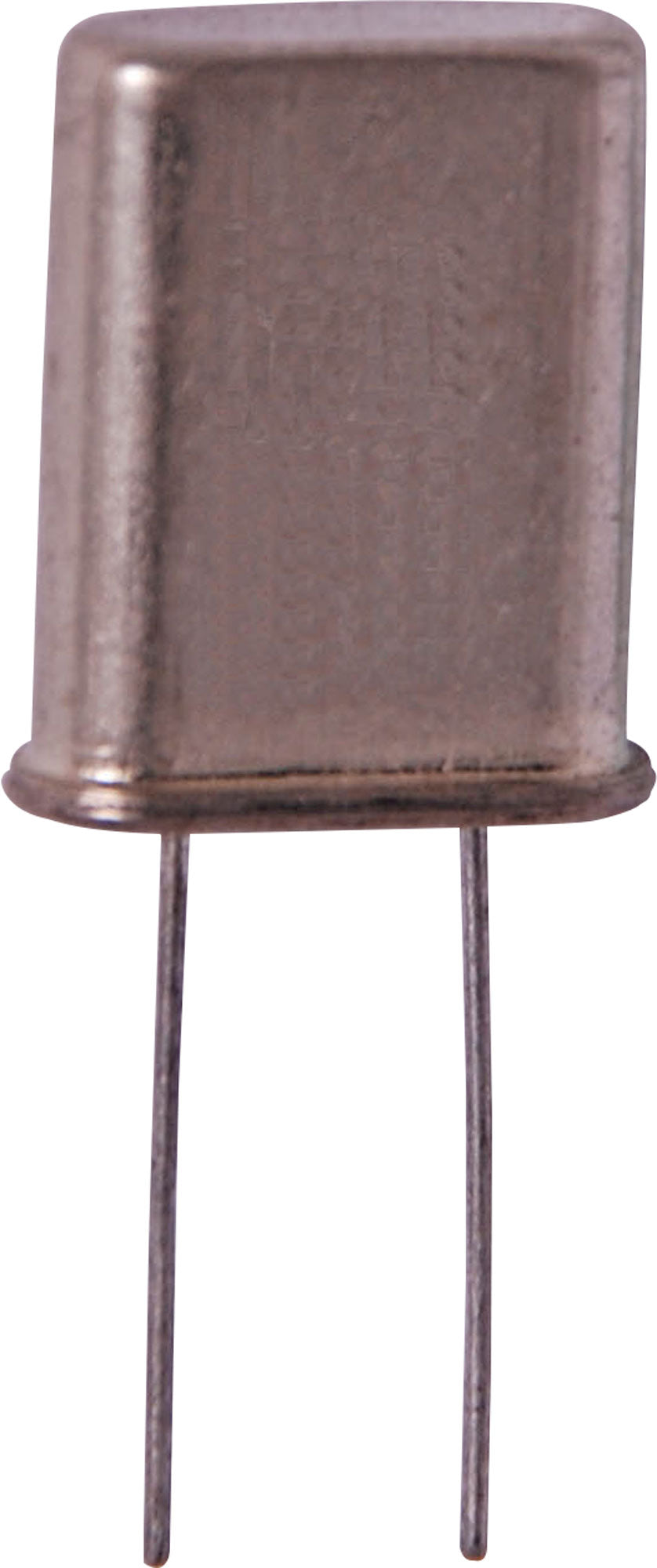

HC49 Type, Fundamental operation
A: 13.5mm
Specifications
- Equivalent Series Resistance (ESR): 25 Ohm Max
- Frequency tolerance: ±30ppm (@25°C)
- Operating temperature: -20°C to 70°C
- Shunt capacitance: 7pf max.
- Load capacitance: 10 to 32pf or series resonant
- Insulation resistance: 500Meg Ohm @ 100VDC
- Drive level: 1mW max
