Crystals Resonators 32.768khz Tuning Fork Clock Crystal V1902

Crystals Resonators 32.768khz Tuning Fork Clock Crystal V1902

$2.25
$2.25
Sale Sold out
Taxes included.

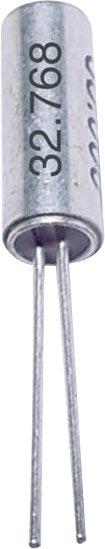

32.768 kHz watch crystal as used in timing circuitry, clocks, wristwatches etc.

DT-26T series.

Specifications

  • Frequency tolerance: ±20ppm (@25°C)
  • Operating temperature:-10°C to 60°C
  • Shunt capacitance:2pf max.
  • Load capacitance:12.5pf
  • Insulation resistance:500MOhm @ 100VDC
  • Drive level:1µW max.
  • ESR (Equivalent series resistance):35KOhm
