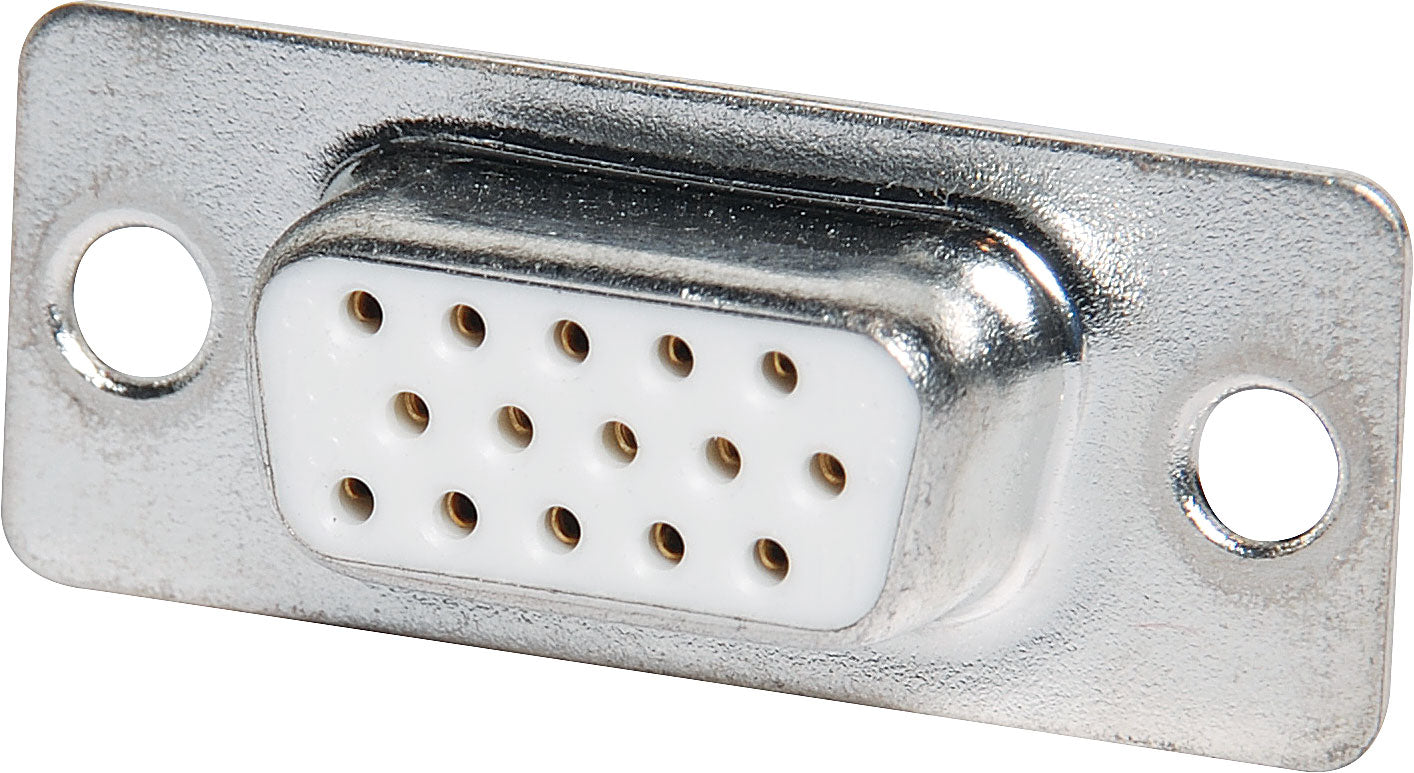

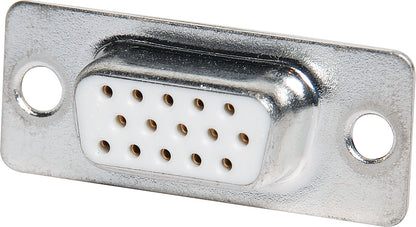

D-Sub Connector DE15 High Density Female Solder Cup P3080

Name: D-Sub Connector DE15 High Density Female Solder Cup P3080
Brand: Altronics
SKU: 9321758028094
Price: 3.95 AUD
Availability: InStock

$3.95

Sale Sold out

Taxes included.

OUPIIN D-Series and Flat Cable Connectors are utilised worldwide in digital and computer-based applications. They feature low contact resistance, excellent mechanical characteristics and long term reliability.  

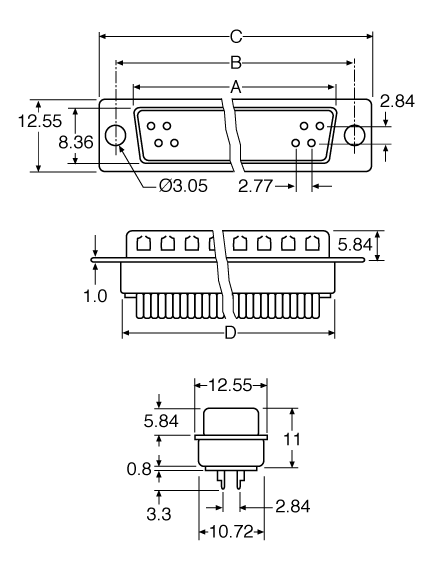

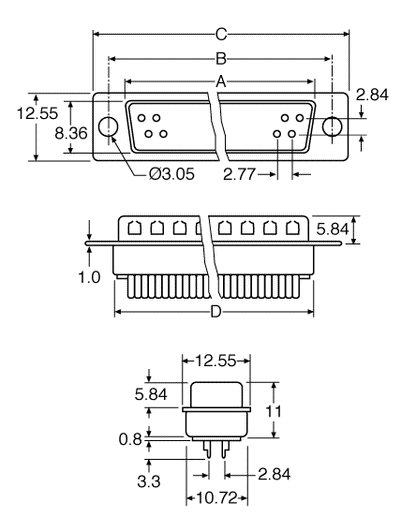

Dimensions:
A: 16
B: 25
C: 31
D: 19

Datasheet

Specifications

Contact Resistance: 30M Ohm max @ 100mA DC
Insulator Resistance: 1000M Ohm @ 500V DC
Current Rating: 1A
Contact Material: Gold plated brass
(Female IDC Connectors gold plated phosphor bronze)
Housing: PBT & 30% Glass Fibre
