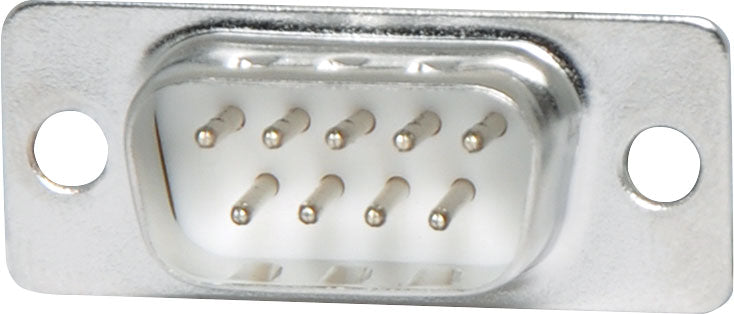

D-Sub Connector DE9 Male Solder Cup P3000
D-Sub Connector DE9 Male Solder Cup P3000
Regular price
$2.00
Regular price
Sale price
$2.00
Unit price
per
Taxes included.
Couldn't load pickup availability
OUPIIN D-Series and Flat Cable Connectors are utilised worldwide in digital and computer-based applications. They feature low contact resistance, excellent mechanical characteristics and long term reliability.

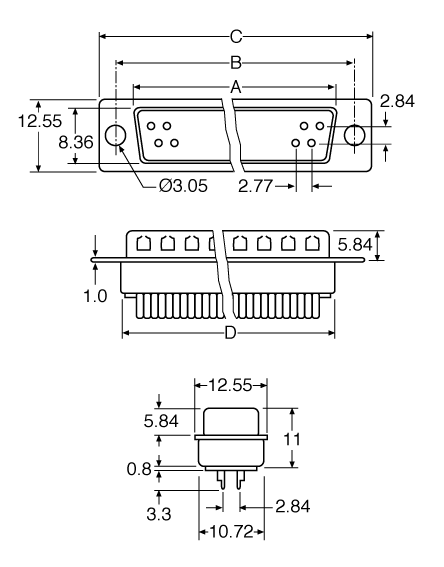

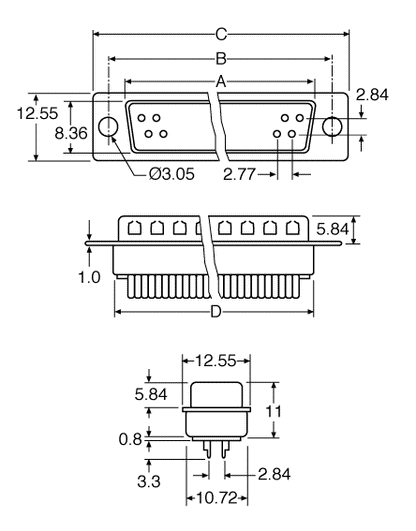

Dimensions:
A: 17
B: 25
C: 31
D: 19
Specifications
- Contact Resistance: 30M Ohm max @ 100mA DC
- Insulator Resistance: 1000M Ohm @ 500V DC
- Current Rating: 1A
- Contact Material: Gold plated brass
- (Female IDC Connectors gold plated phosphor bronze)
- Housing: PBT & 30% Glass Fibre
