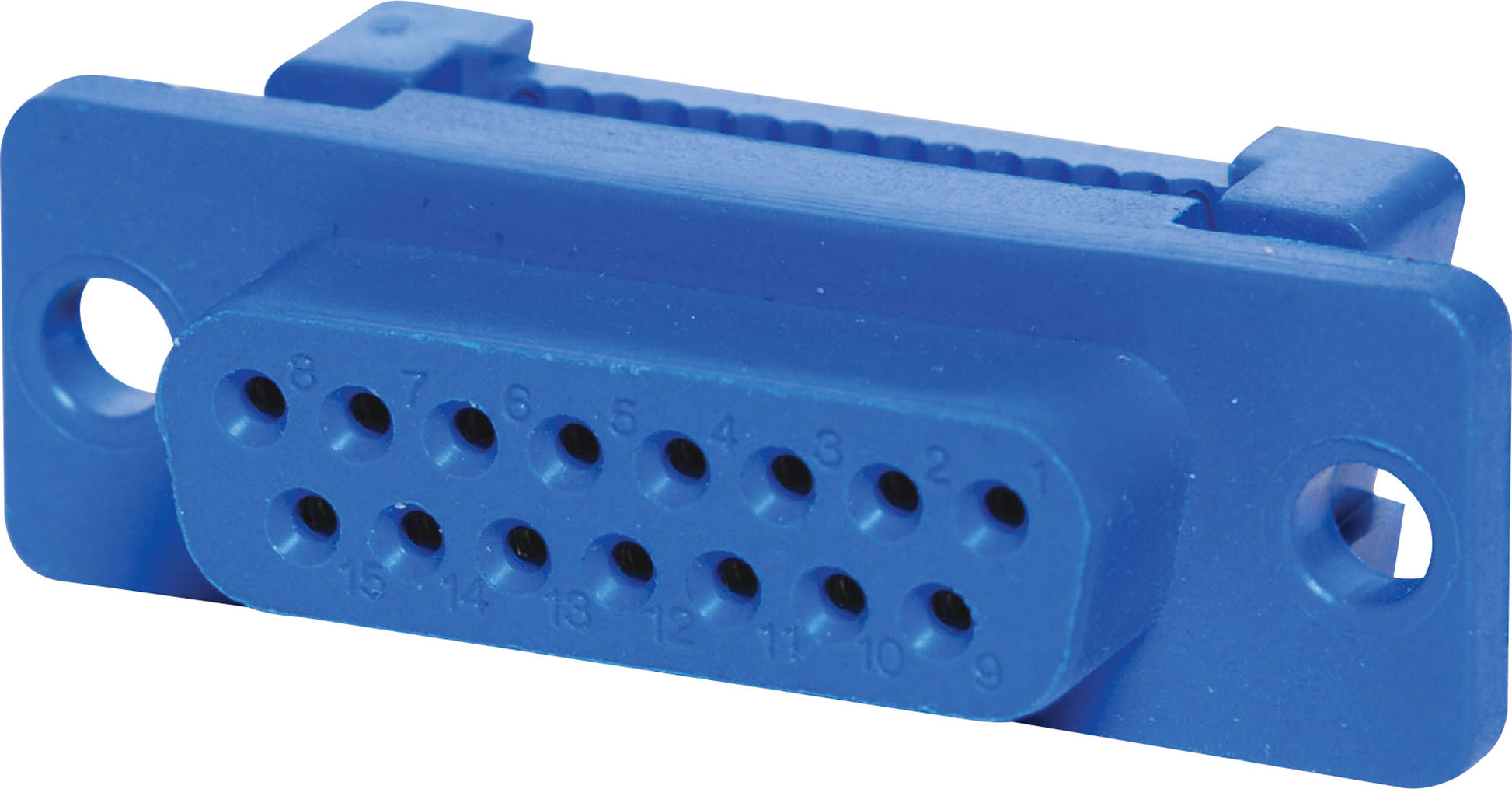

D-Sub Connectors DA15 Female with IDC Termination P4131
D-Sub Connectors DA15 Female with IDC Termination P4131
Regular price
$3.60
Regular price
Sale price
$3.60
Unit price
per
Taxes included.
Couldn't load pickup availability
OUPIIN D-Series and Flat Cable Connectors are utilised worldwide in digital and computer-based applications. They feature low contact resistance, excellent mechanical characteristics and long term reliability.

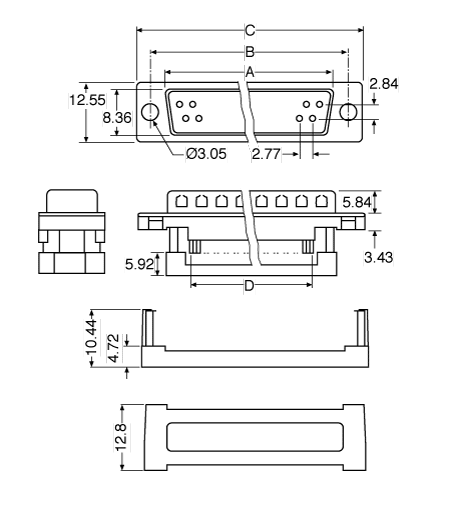

Dimensions:
A: 24
B: 33
C: 39
D: 18
Specifications
- Contact Resistance: 30M Ohm max @ 100mA DC
- Insulator Resistance: 1000M Ohm @ 500V DC
- Current Rating: 1A
- Contact Material: Gold plated brass
- (Female IDC Connectors gold plated phosphor bronze)
- Housing: PBT & 30% Glass Fibre
