DC-DC Buck Boost Module 1A / 1.25V-26V DC Z6337
DC-DC Buck Boost Module 1A / 1.25V-26V DC Z6337
Regular price
$19.95
Regular price
Sale price
$19.95
Unit price
per
Taxes included.
Couldn't load pickup availability

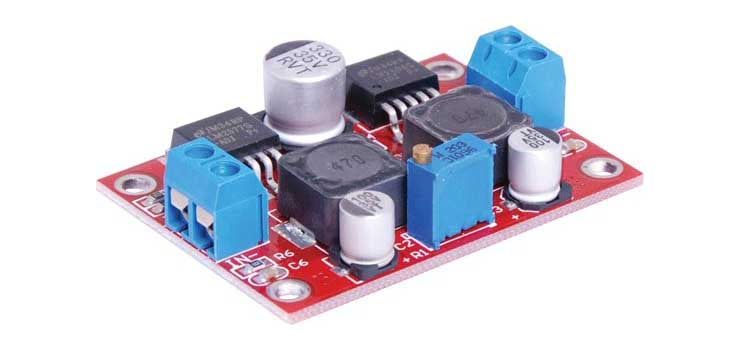

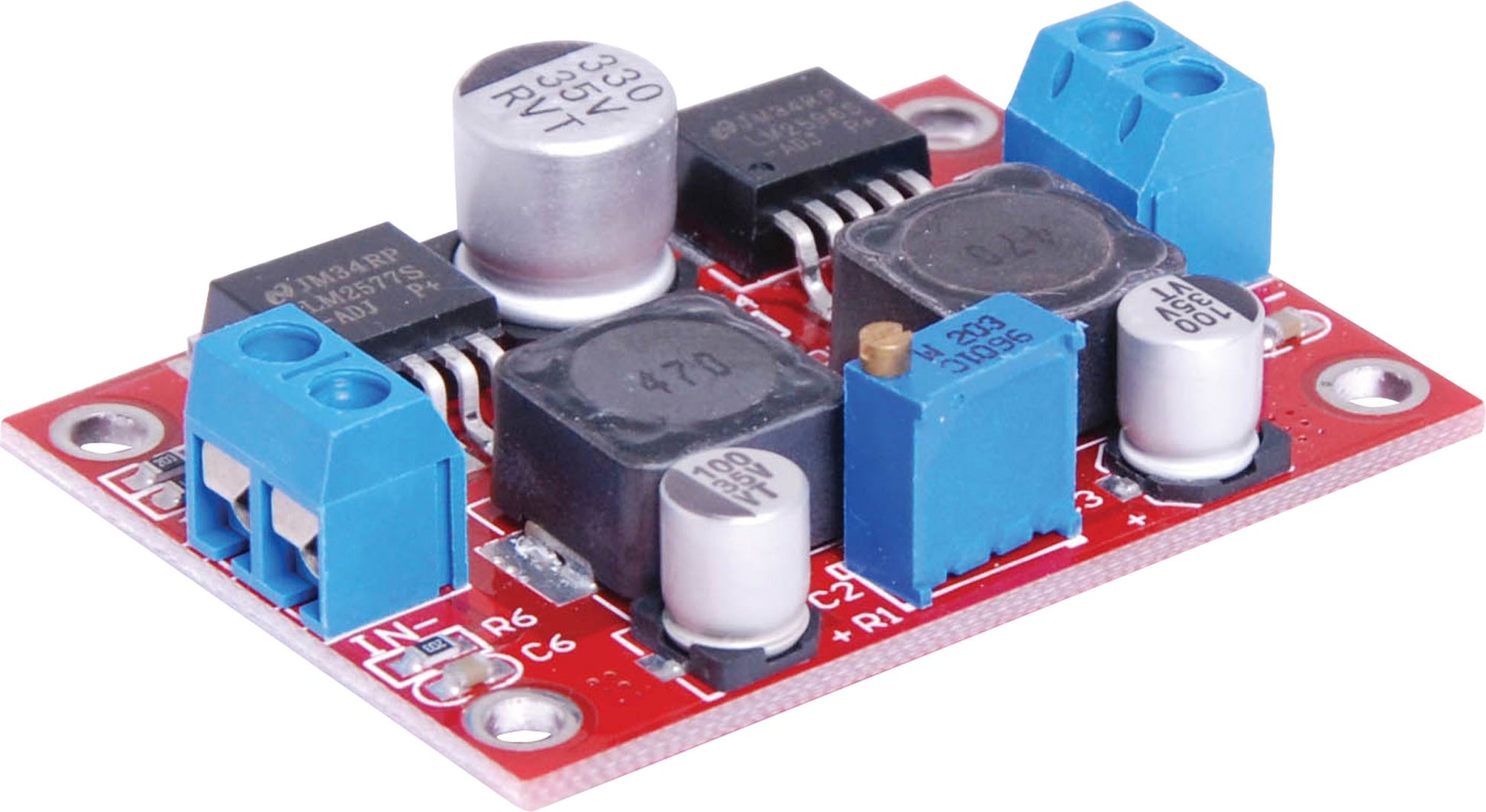

A DC-DC buck module utilising the LM2596S and LM2577 to accept a 3.5-28V input and output 1.25-26V (adjustable) at a max current of 1A. Includes brass standoffs. Ideal for small projects where regulated power is required. Size: 53L x 38W x 21H mm.
ALWAYS check the output voltage with a multimeter prior to connecting your device to the output.
Specifications
- Dual Chip: LM2577S + LM2596S
- Size: 53x38x15mm
Boost Mode
- Input Voltage: 3.5-28V
- Output Voltage: 1.25V-26V
- Note: The output voltage is not related to the input voltage (that is, input any value of 3.5V-28V, output any value of 1.25V-26V)
Buck Mode
- Current Input Maximum: 3A.
- Output Maximum: 3A.
- Rated Input: 1A,
- Rated Output: 1A
- Note: The output voltage (any value between 1.25V-26V) is irrelevant to the input voltage (input 3.5V-28V arbitrary value), the module automatically lifts and drops.
