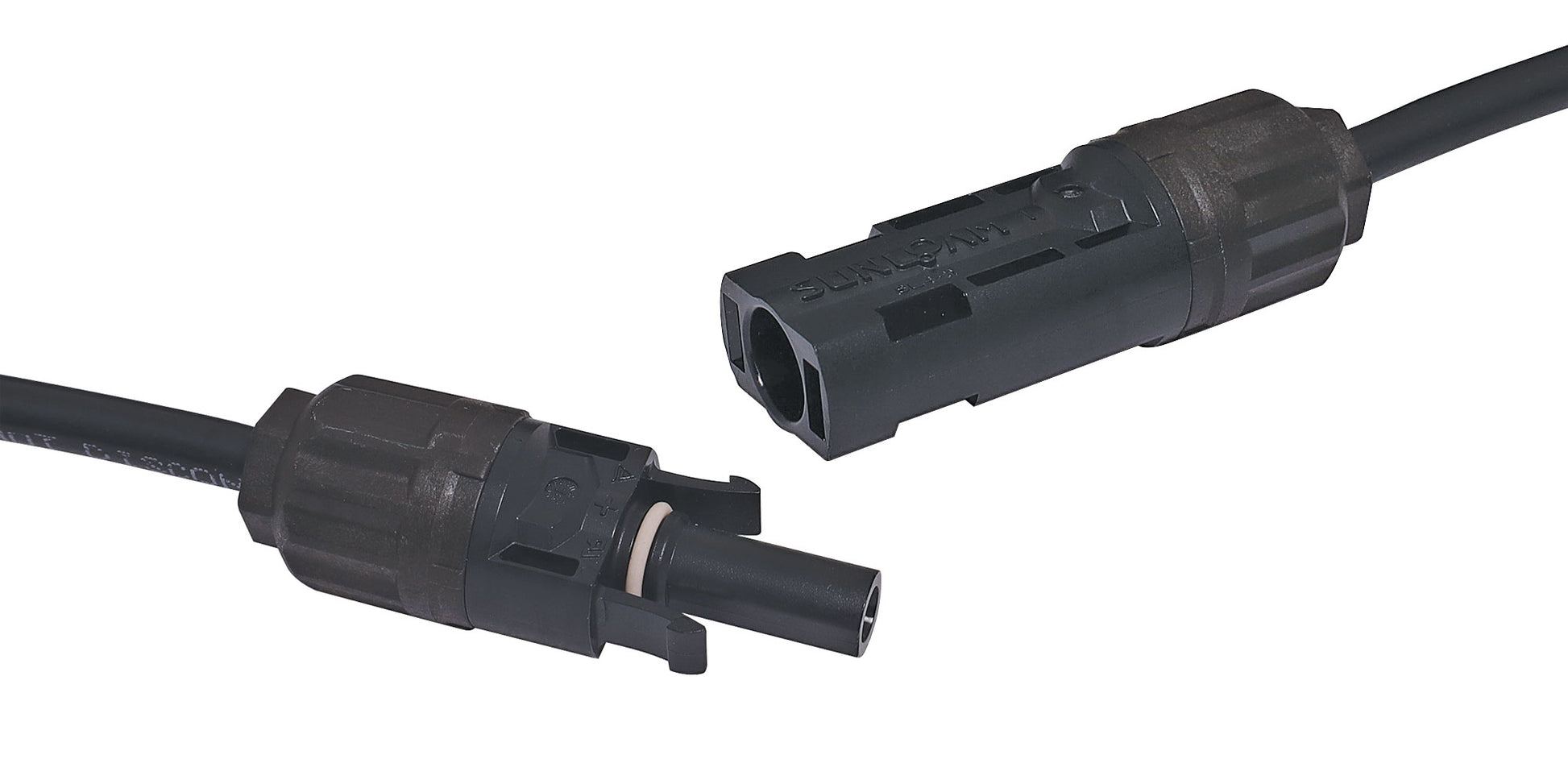

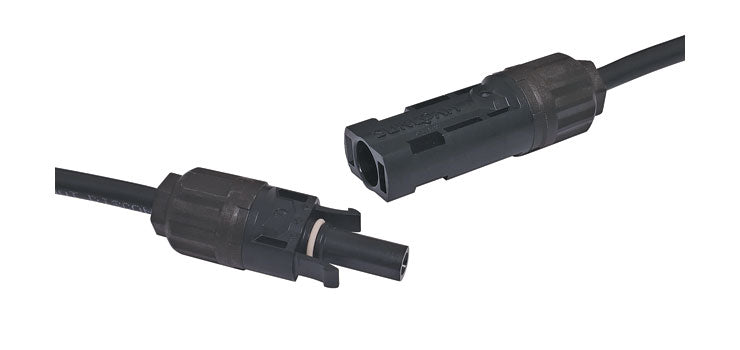

DC Power Cable 5m Solar Enclosed MC4 Style Male To Female Lead P8618B

Name: DC Power Cable 5m Solar Enclosed MC4 Style Male To Female Lead P8618B
Brand: Altronics
SKU: 9321758184622
Price: 45.00 AUD
Availability: InStock

$45.00

Sale Sold out

Taxes included.

Water & dust proof - IP67 Rated. This lead can be used for connections in photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations.

Please Note: This product does NOT suit the T1615 removal tool.

Specifications

Rated Current: 30A
Rated Voltage: 1000V DC (TUV) / 1000V DC
Test Voltage: 6KV(50Hz,1min)
Contact resistance: >0.25mΩ
Protection Degree,mated: IP67
Wire Size: 4mm² 12AWG
Flame Class: UL94-V0
Insulation Material: PC&PPO
Temperature Range: -40°C...+90°C
Certification: TUV & UL
