DC Power Cables IP67 MC4 Solar Panel 30A Y Adapter Pair P8611
DC Power Cables IP67 MC4 Solar Panel 30A Y Adapter Pair P8611
Regular price
$26.95
Regular price
Sale price
$26.95
Unit price
per
Taxes included.
Couldn't load pickup availability

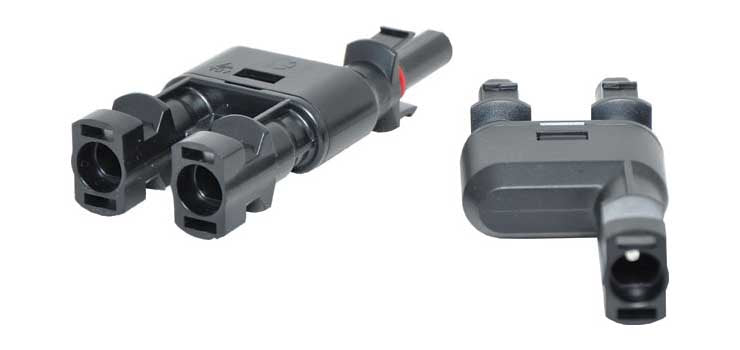

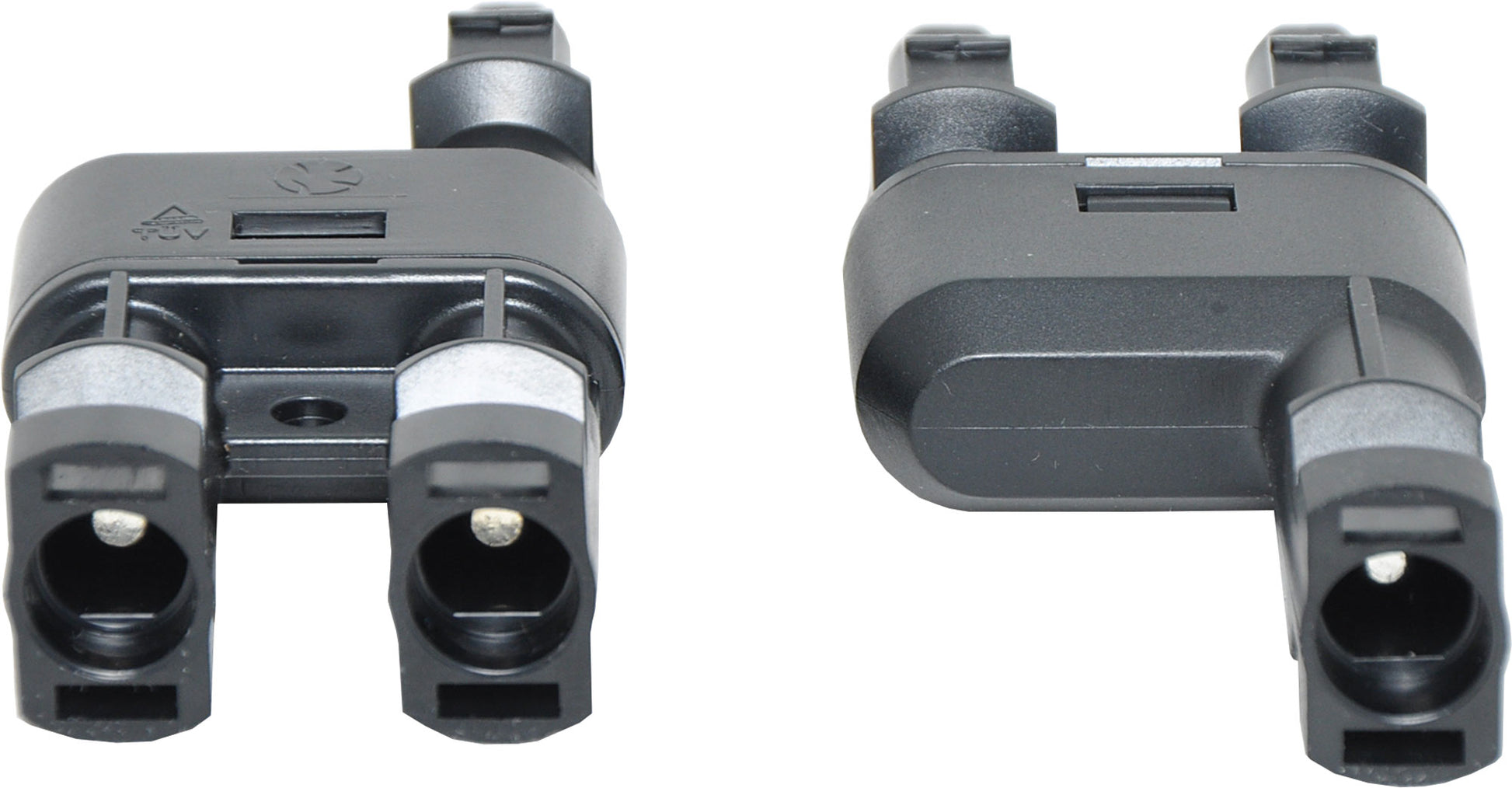

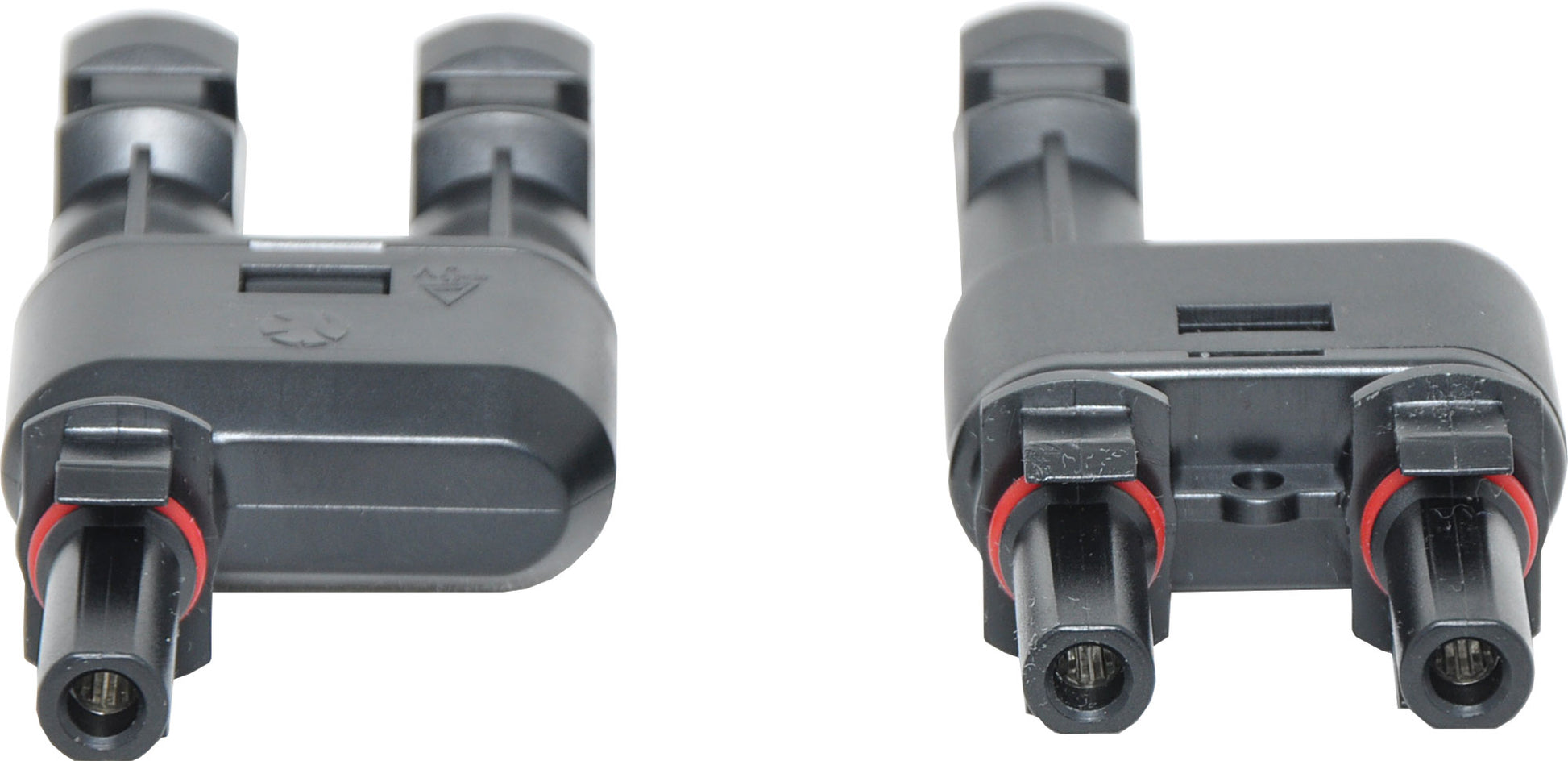

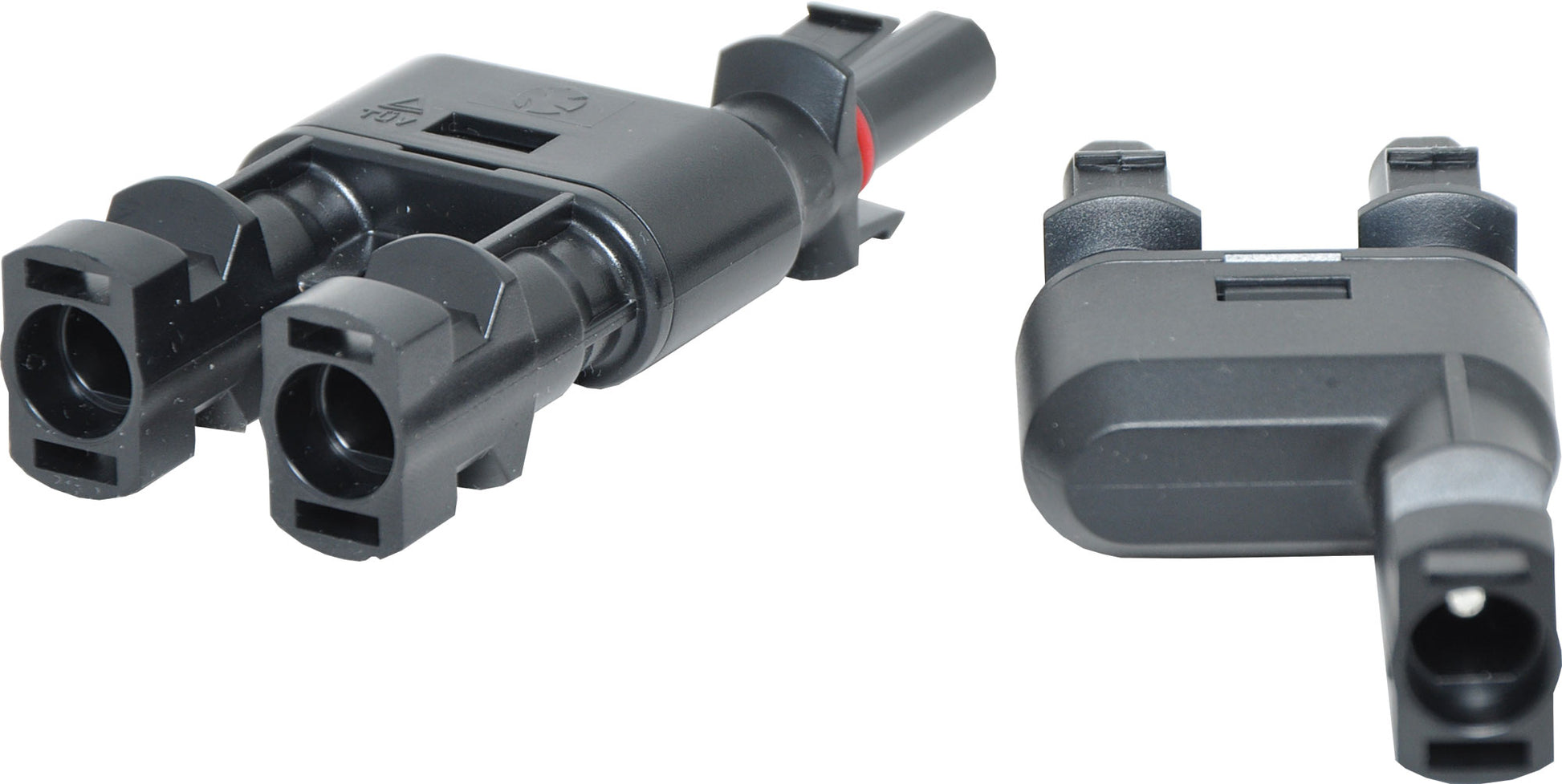

MC-4 dual line plug adaptor designed for use when daisy-chaining solar panels together. Water & dust proof - IP67 rated. Commonly used on photovoltaic solar panel arrays. Fully sealed design is suitable for use in exposed installations. Rated 30A @ 1000VDC (70°C).
Specifications
- Contact Material: Copper, Silver Plated
- Insulation Material: PPO
- Rated Current: 30A (2-4mm2)
- Rated Voltage: DC 1000V TUV
- Test Voltage: 6000V (50Hz, 1min)
- Contact Resistance: 0.5mΩ
- Protection Requirement: IP67
- Safety Class: II
- Flame Class: UL94 - V0
- Insertion Force: = Withdrawal Force: >= 50N
- Temperature Range: -40 ~ +90°C
- Over Voltage Category/Pollution Degree: CATIII/2
