DC Power Connector 2.1mm Plastic PCB Mount Vert. DC Power Socket P0626
DC Power Connector 2.1mm Plastic PCB Mount Vert. DC Power Socket P0626
Regular price
$2.80
Regular price
Sale price
$2.80
Unit price
per
Taxes included.
Couldn't load pickup availability

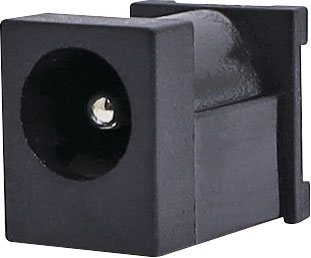

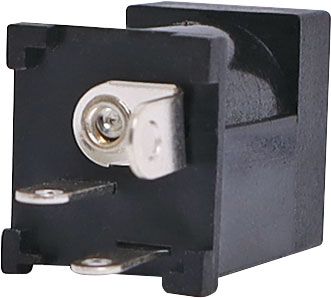

A vertical mount PCB DC power socket with 2.1mm jack entry.
Specifications
- Contact resistance: 30mΩ max.
- Current rating: max 2.0A, 16V DC.
- Insulation resistance: 100MΩ min at DC 500V.
- Dialetric withstand voltage: AC 500V for one minute.
