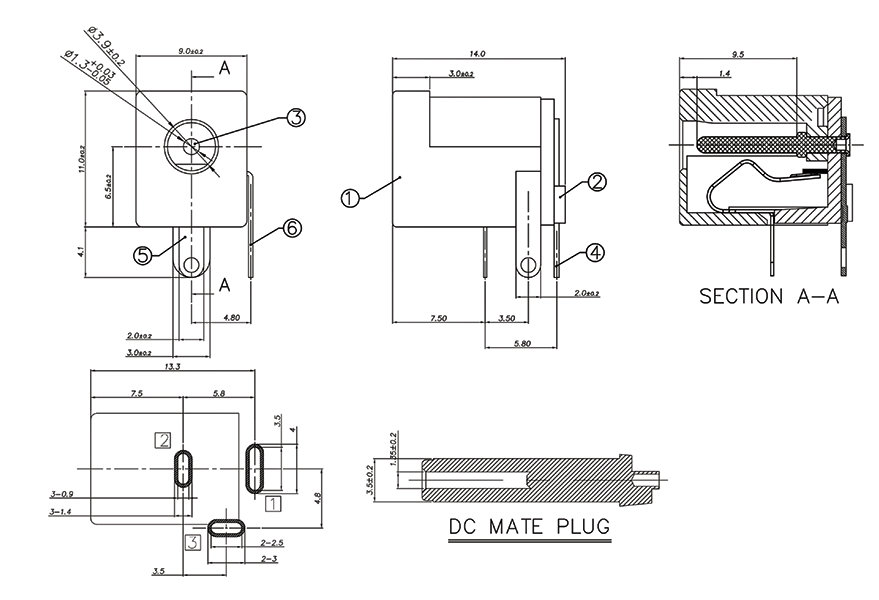

DC Power Connectors 1.35mm Plastic PCB Mount DC Power Socket P0624A

DC Power Connectors 1.35mm Plastic PCB Mount DC Power Socket P0624A

$1.85
$1.85
Sale Sold out
Taxes included.

Socket 1.35mm PCB

Specifications

  • Rating: 20V DC 4A
  • Contact Resistance: ≤50mΩ, After test: ≤100mΩ
  • Insulation Resistance: ≤100mΩ(500VDC), After test: ≤50mΩ
  • Withstanding voltage: 500V AC
  • Insertion and extraction force: 3N~30N
  • Operation temperature range: -20°C ~ 70°C
  • Preservation temperature range: -40°C ~ 85°C
View full details
