DC Power Connectors 175A 600V Grey High Current DC Anderson Style Power Plug P7750
DC Power Connectors 175A 600V Grey High Current DC Anderson Style Power Plug P7750
Regular price
$23.95
Regular price
$23.95
Sale price
$23.95
Unit price
per
Taxes included.
Couldn't load pickup availability

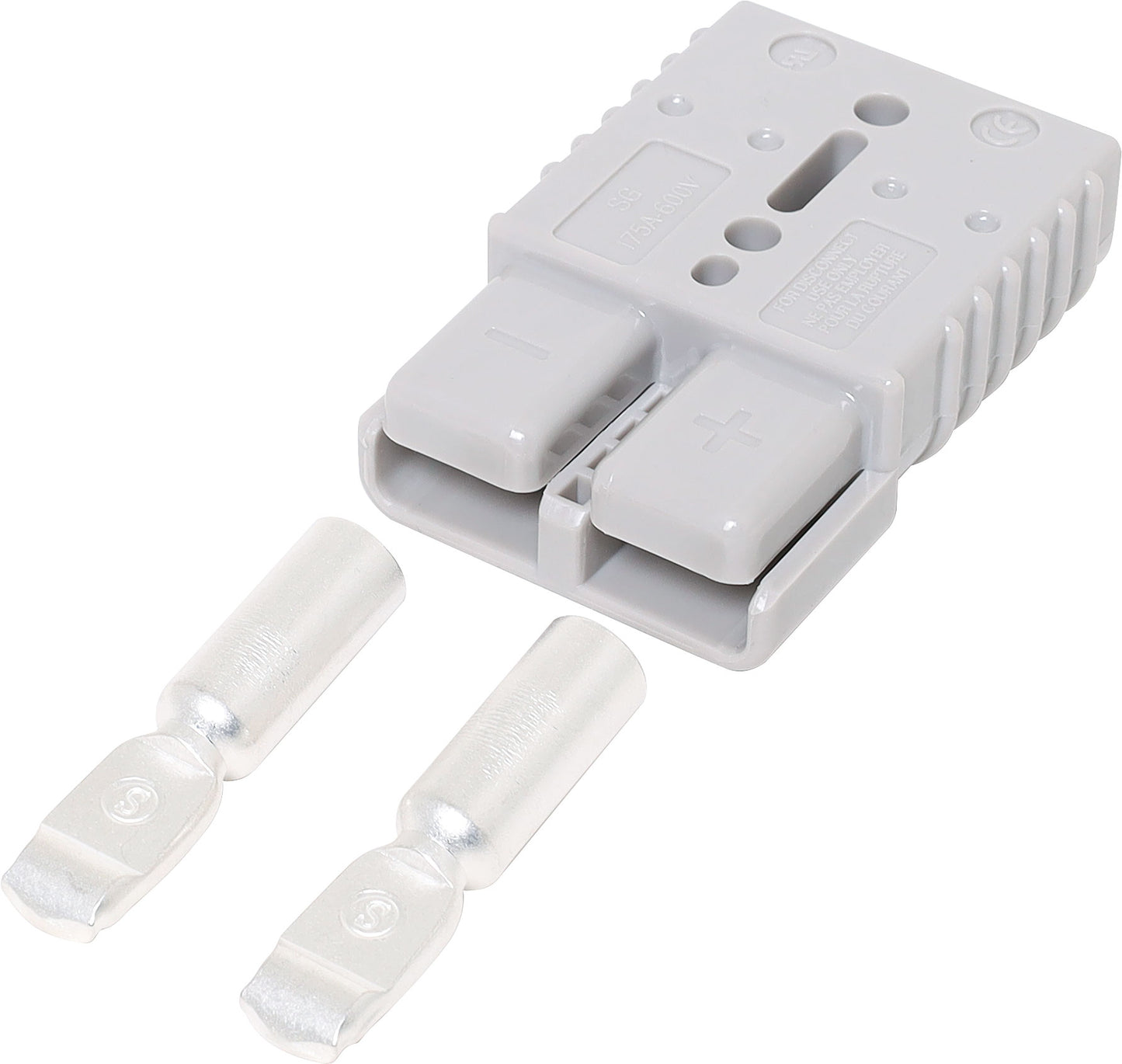

Anderson style grey 120A DC power connector. These heavy duty DC plugs feature a reversible gender design (the same plug can be used as both male and female). Not suitable for connecting or disconnecting circuits under load.
Supplied with connector housing and two crimp lugs.
Cable Size:
38mm2. (2AWG)
Specifications
- Contact barrel size (AWG): 2
- Wire size: 38mm/sq
- Current rating: 120A
- Voltage rating: 600V
- Max. wire insulation diameter: 14.6mm
- Contact retention force: 100lbs
- Operating temperature: -20º - 125ºC
- Flammability rating of housing material: UL94V-0
