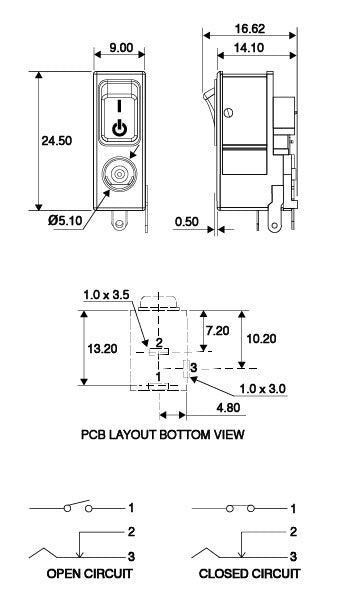

DC Power PCB Socket with Switch 2.1mm P0639A

DC Power PCB Socket with Switch 2.1mm P0639A

$6.85
$6.85
Sale Sold out
Taxes included.

DC power socket with switch.
2.1mm pitch.
PCB mount type.
12V DC, 3.8A rated.

Specifications

  • Electrical rating: DC12V 3.8A
  • Contact resistance: <20mΩ (initial)
  • Insulation resistance: >100MΩ; (500V DC between open contacts)
  • Dielectric strength: >1500V 1 minute
  • Electrical life: 6000cycles
  • Temperature rise at terminal: Max 30ºC
  • Solderability of terminal: 350ºMax. 3 seconds ( no pressure may be placed on terminals when soldering by hand)
