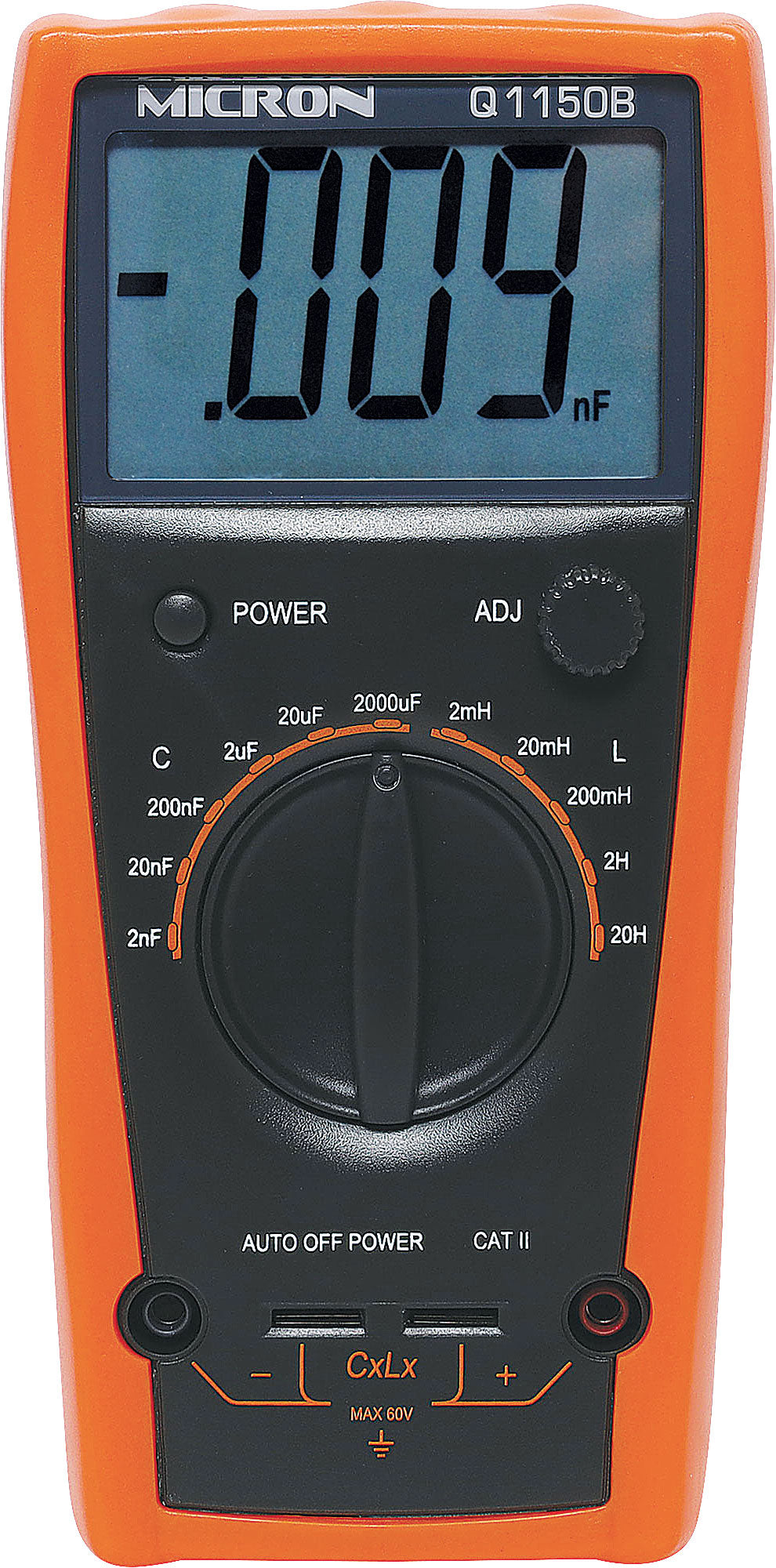

Digital LC Meter Q1150B
Digital LC Meter Q1150B
Regular price
$65.50
Regular price
Sale price
$65.50
Unit price
per
Taxes included.
Couldn't load pickup availability
This dedicated LC meter offers wider inductance and capacitance ranges than other ‘do-it-all’ meters available on the market. A workbench essential for developing audio crossover circuits, switch mode power supplies and RF circuits. This meter includes a large 30mm, 3.5 digit display and is capable of reading capacitance from 2nF to 1000µF on polarised (electrolytic) and non-polarised capacitors, and inductance from 2mH to 20H. Supplied with high quality silicon rubber croc clip test probe leads, rubber holster.
Features
- High accuracy inductance & capacitance ranges
- Jumbo 1999 count readout
- Battery included
- Supplied with quality silicon rubber test leads, rubber holster.
Specifications
- Inductance: 2mH, 20mH, 200mH, 2H, 20H (±2.0%+5d)
- Capacitance: 2nF, 20nF, 200nF, 2µF, 20µF, 2000µF (±2.5%+10d)
- Display: 3.5 digit LCD, 1999 count
- Protection: 315mA M205 fused on L/C input
- Dimensions: ≈ 97W x 35D x 190H mm
