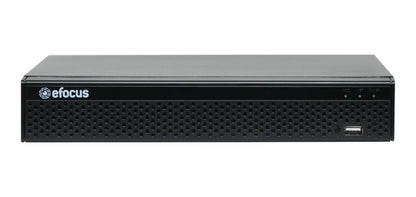

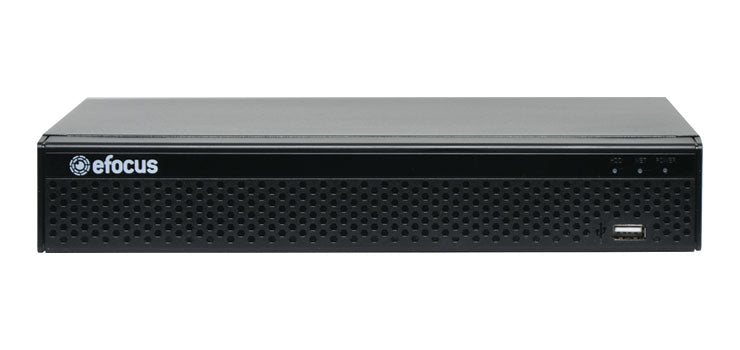

This compact NVR can achieve up to 25x 12MP channels at 25fps or 36x 5MP channels at 25fps! Suitable for use with an external dedicated PoE switch it offers high resolution surveillance solution for installations requiring a large number of cameras.
It utilises H.264/H.265+ compression to maximise your hard disk space and has wide camera compatibility with ONVIF 2.8 support. Recording can be manually set, scheduled or triggered by motion detection. Supports two internal hard disks, maximum storage 12TB. Hard drives sold separately. Dimensions: 310W x 295D x 46H(mm)
Features
- H.264+/265+ compression
- 4K HDMI monitor output
- Recording 25 channels up to 12MP @ 25fps per channel
- Supports iOS and Android remote viewing
- Two internal SATA interface, max 12TB
- Remote control & mouse
- USB backup
- Dedicated network interface
- Audio input & output
- ONVIF 2.8
NOTE:
Installations of CCTV systems can vary greatly in configuration and technical complexity. We recommend that unless you have skills in computer networking that you engage a CCTV installer or professional to set up your installation.
The process can involve opening router ports, setting up IP routes etc which can be daunting for a beginner. Every installation is different, as a result, it can be difficult to diagnose set up issues over the phone or via email.
Specifications
- Main Processor: ARM Cortex A17 Quad-core Processor
- Operating System: Embedded LINUX
- Input: 36CH (4000×3000, 4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
- Output: 1 VGA, 1 HD
- Input: 1 Port RCA
- Output: 1 Port RCA(Linear, 1kΩ)
- Audio Bit Rate: 64kbps
- Audio Compression standard: G711u, G711a, ADPCM_DVI4
- Sensor Input: NO
- Output: NO
- Motion Detection: 36 Channel, MD Zones: 396 (22 × 18)
- Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips
- HD Output1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Display Split: 36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k/1CHx12MP
- Digital Zoom: YES
- OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm
- Video Compression: H265/H264/H265+/H264+
- Resolution: 12MP(4000×3000),4k(4096×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
- Record Rate:
- PAL :12MP@25×25fp,4k@30×25fp,5MP@36×25fp,4MP@36x25fp,3MP@36×25fp,1080P@36×25fp, 960P@36×25fp,720P@36×25fp, D1@36×25fp
- NTSC: 12MP@25×30fp,4k@30×30fp,5MP@36×30fp,4MP@36×30fp,3MP@36×30fp,1080P@36×30fp, 960P@36×30fp, 720P@36×30fp, D1@36×30fp
- Record Mode: Manual, Timer, Motion Detection, Smart Alarm
- Local Sync Playback: 3CH 12MP@15fps, 4CH 4K@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 10CH 3M@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps
- Decode Capability: 4CH 4K(3840×2160)@30fps
- Remote Sync Playback: YES
- Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm
- Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
- Backup Mode: USB Device/Network

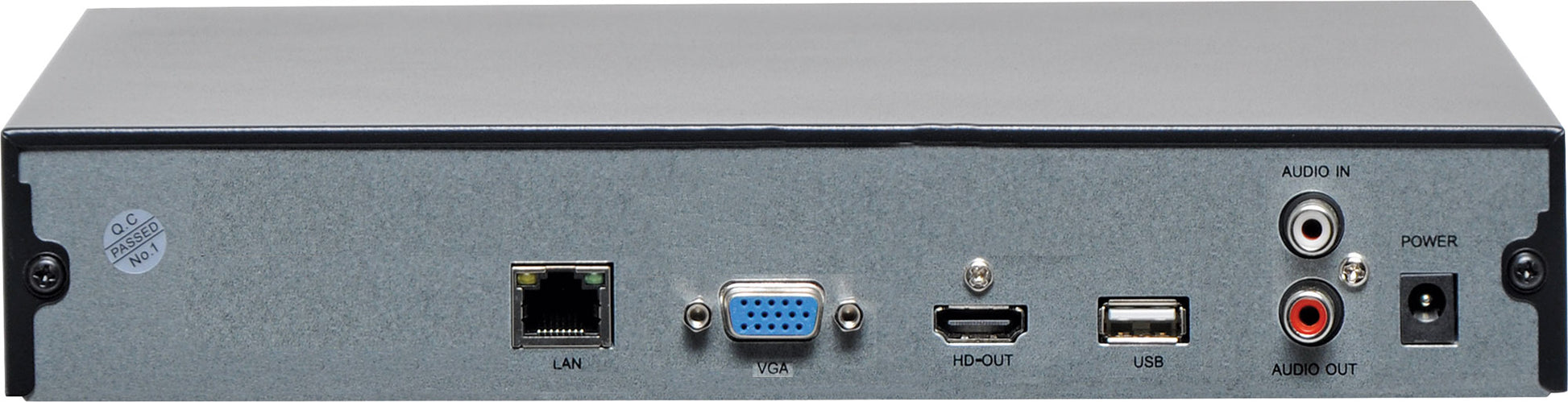

- Interface: 1 RJ45 10M/100/1000M Adaptive Ethernet Interface
- Incoming Bandwidth: 300MB
- Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
- Onvif Version: Support Onvif 2.8
- Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
- CMS Software: Support Windows 7/ Windows 8/Windows 10/MAC OS
- Cloud Support(P2P): Yes
- Smart Phone: iPhone, iPad, Android, Android Pad
- Interface Type: 2 SATA Hard Disk Interface (3.5" SATA)
- Capacity: Up to 12TB capacity
- Language: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
- German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese
- USB Interface: 1 USB 2.0 Interfaces ,1 USB 3.0 Interface
- Power Supply: DC 12V/4A
- Working Environment: -10~55℃/10~90%
- Dimensions: 310W x 295D x 46H(mm)
- Weight: 3.5KG (without HDD)
