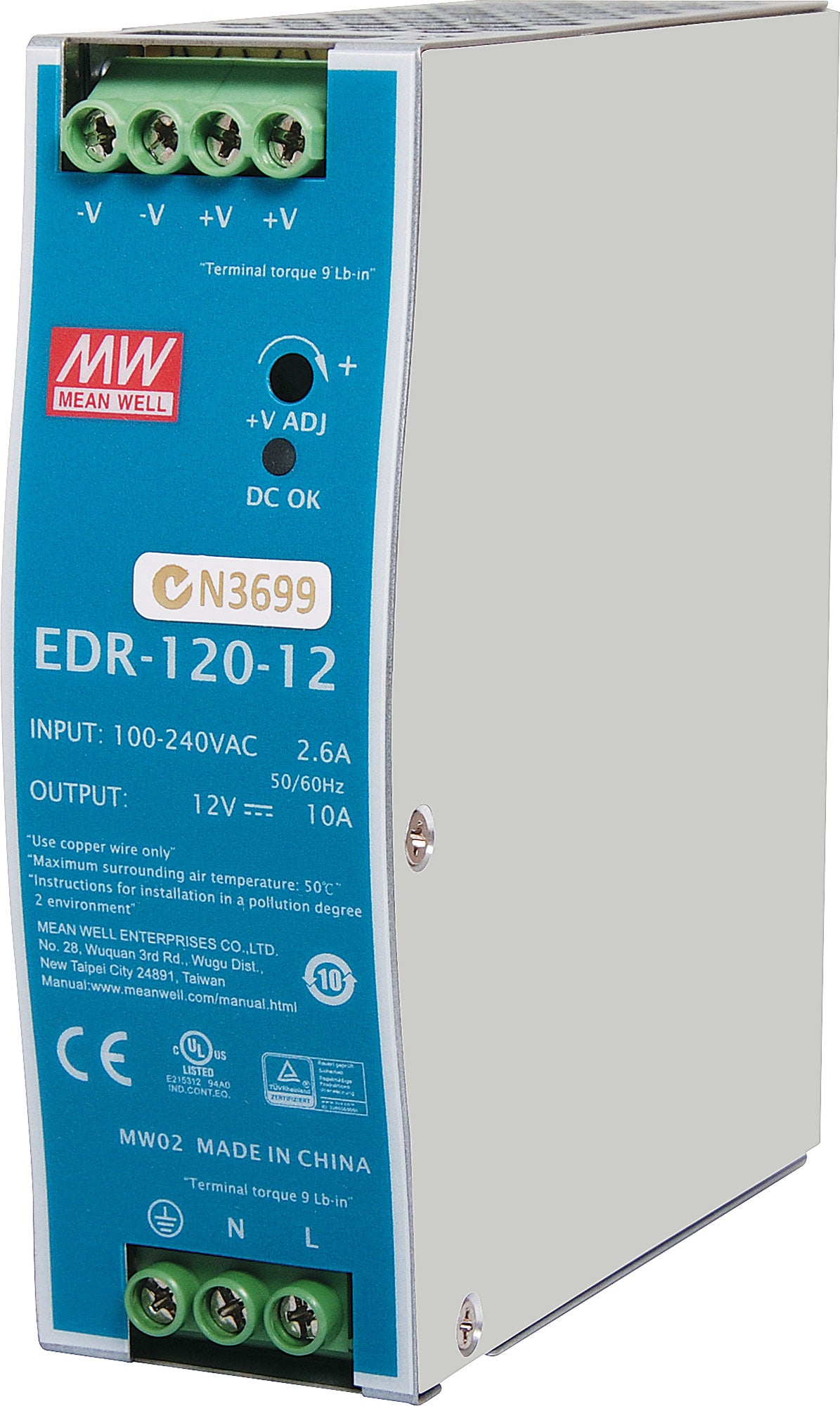

DIN Rail AC/DC Supplies EDR-120-12 120W 12VDC 10A DIN Rail Switchmode Power Supply M8406A

The Mean Well EDR-120-12 provides 12VDC 10A output with a rated power output of 120W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage. Suitable for mounting to DIN rail TS-35/7.5 or 15 types.

Switch mode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced.

Features

• 120W rated power
• 12V DC 10A output
• Vented metal enclosure
• Universal AC input/Full range
• Protection: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or 15
• UL508 (industrial control equipment) approved
• EN61000-6-2 (EN50082-2) industrial immunity level
• 100% full load burn-in test

Datasheet
