DIN Rail AC/DC Supplies HDR-30-12 24W 12VDC 2A DIN Rail Switchmode Power Supply M8392
DIN Rail AC/DC Supplies HDR-30-12 24W 12VDC 2A DIN Rail Switchmode Power Supply M8392
Regular price
$49.95
Regular price
Sale price
$49.95
Unit price
per
Taxes included.
Couldn't load pickup availability

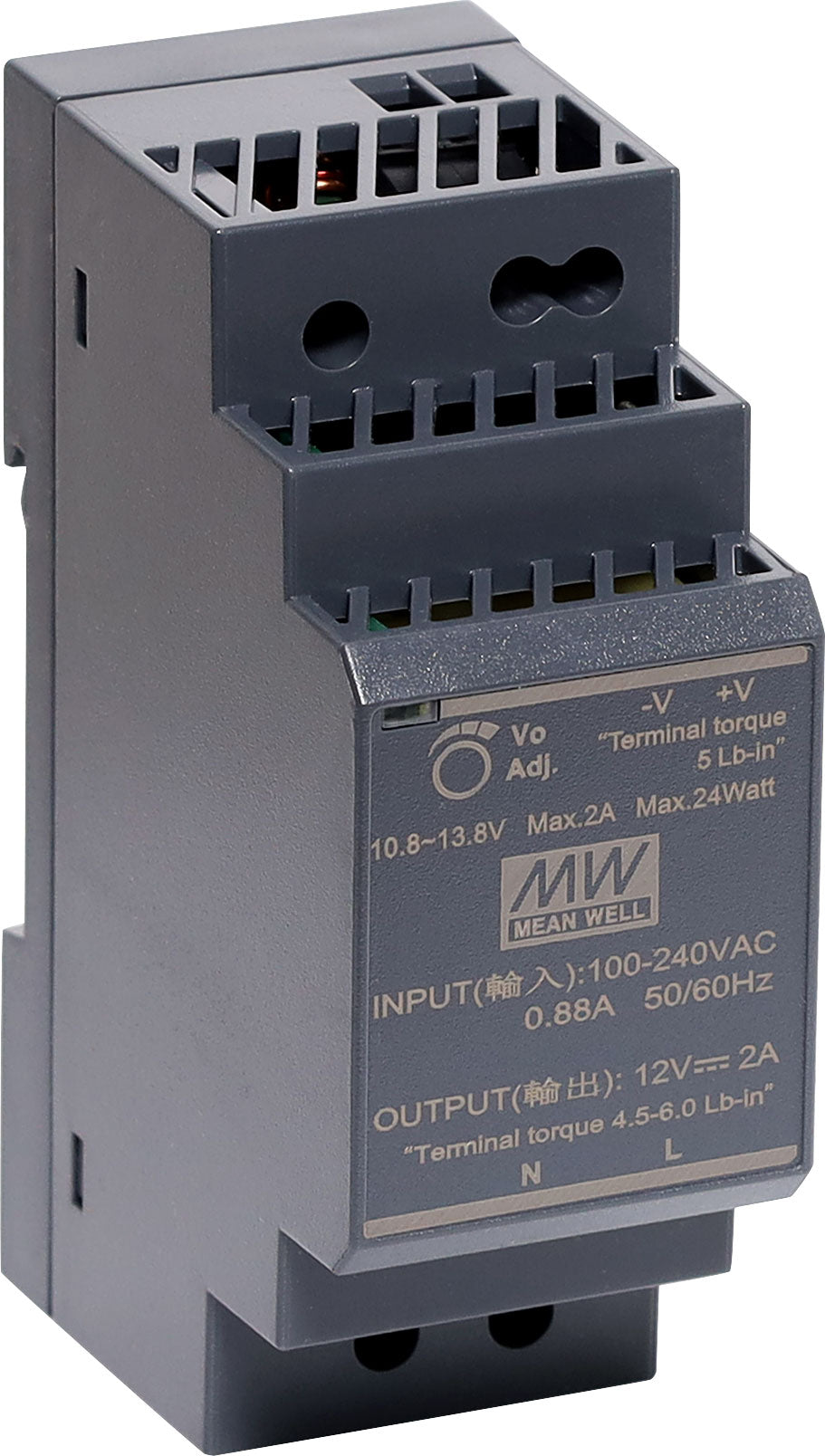

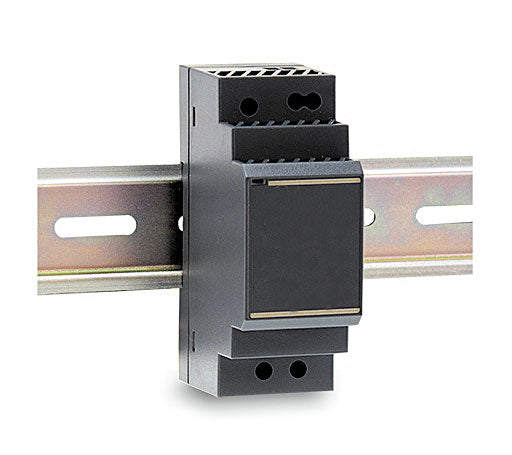

The Mean Well HDR-30-12 is a 24W DIN rail mountable power supply with an output voltage of 12V. The ultra-slim design is ideal for lower current DC power applications in a standardised DIN rail housing to suit mounting to asymmetrical “G” or 35mm top hat type DIN rails. Each unit measures only 90mm high and is supplied in 35mm and 52.5mm widths.
Features
- 24W power output at 12V DC (2A)
- Ultra slim design with 35 or 52.5mm widths
- Universal AC input
- Protections: short circuit, overload, over voltage
- Cooling by free air convection
- Suits TS-35/7.5 or 15 DIN rail
- LED power indicator
Specifications
- Mean Well Model: HDR-30-12
- Output: 2A
- Rated Wattage: 24W
- Inrush Current: 25A
- Efficiency: 88%
- Input Range: 85-264V AC, 120-370V DC
- Input Frequency: 47-63Hz
- Warranty: 3 years
- Weight: 120g
- Dimensions: 35 x 90 x 54.5mm
