DIN Rail AC/DC Supplies MDR-60-24 60W 48VDC 1.25A DIN Rail Switchmode Power Supply M8413A

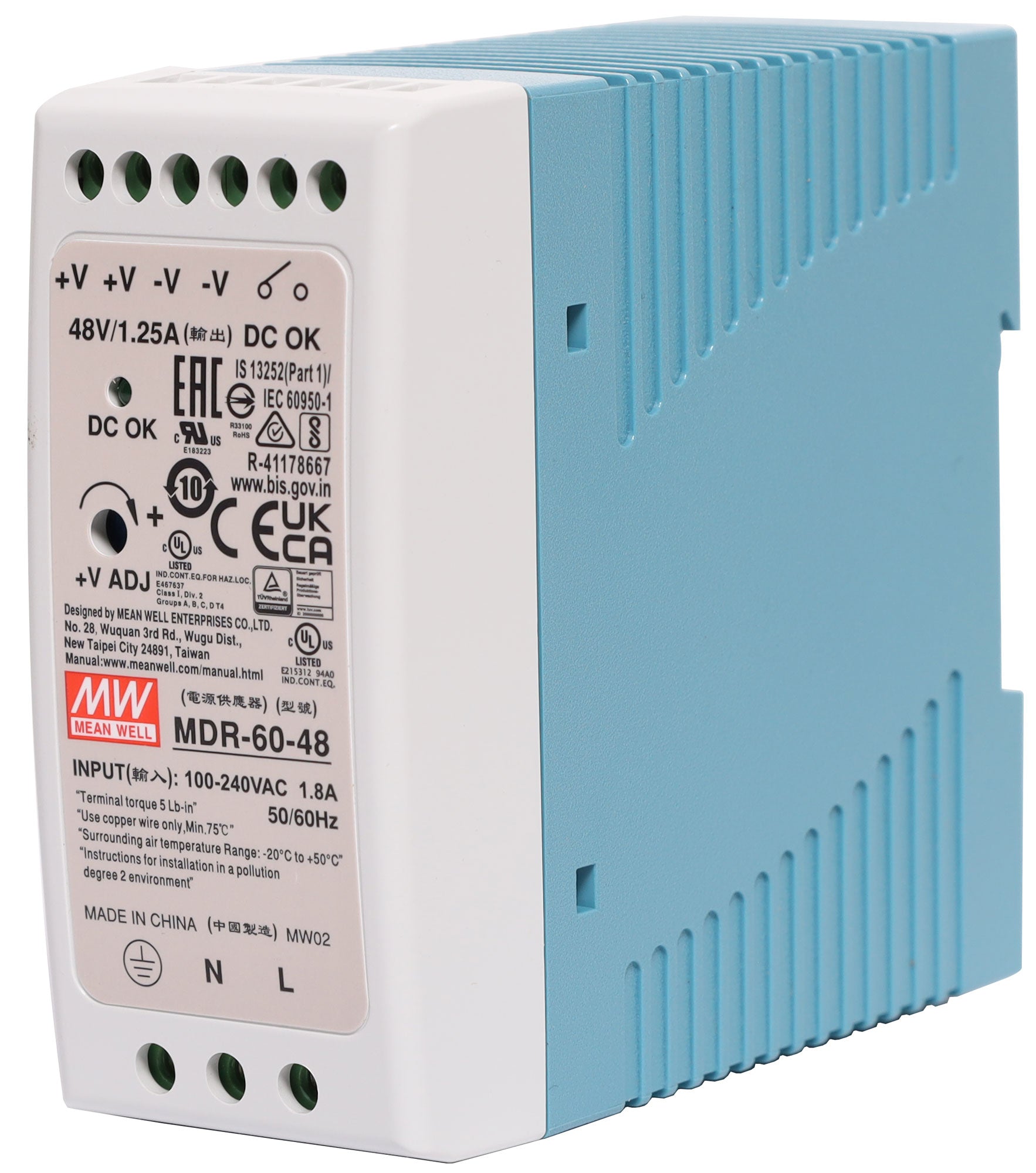

The Mean Well MDR-60-48 provides 48VDC 1.25A output with a rated power output of 60W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage. Suitable for mounting to DIN rail TS-35/7.5 or 15 types.

Switch mode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced.

Features

• 60W rated power
• 48V DC 1.25A output
• Universal AC input/Full range
• Protection: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or 15
• NEC class 2 / LPS compliant
• LED indicator for power on
• DC OK relay contact
• No load power consumption<0.75W
• 100% full load burn-in test
