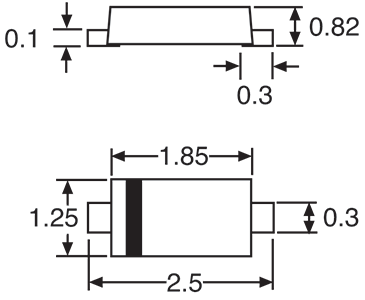

Case: SOD323
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed Over Alloy 42 Leadframe
(Lead-Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.006 grams
Fast Switching Speed
Small Surface Mount Package
For General Purpose Switching Applications
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable
