Diode Fast 2a 200v 25ns 1075761

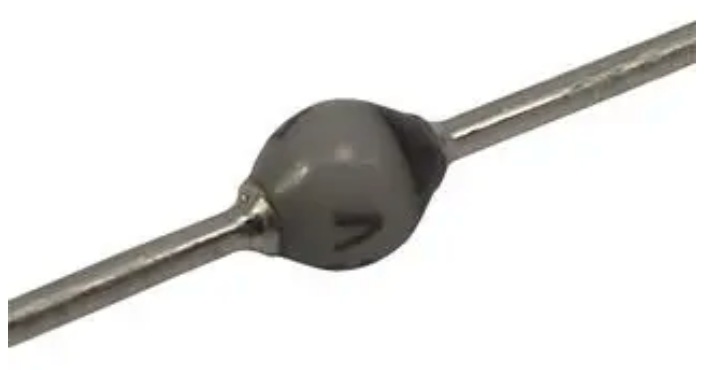

The BYV27-xxx series from Vishay are axial leaded, single ultra fast avalanche sinterglass diode in SOD-57 package. These diode are This device features glass passivated junction, controlled avalanche characteristic, low forward voltage and fast recovery time.

• Hermetically sealed package
• Maximum repetitive reverse voltage Vrrm of 55V, 110V, 165V and 220V respectively
• Peak forward surge current IFSM of 50A at tp 10ms
• Forward current If(AV) of 2A
• Operating junction temperature range from -55°C to 175°C
• Maximum forward voltage VF of 1.07V at If 3A
• Reverse recovery time trr of 25ns

Applications

Power Management, Industrial, Portable Devices, Consumer Electronics, Automotive
