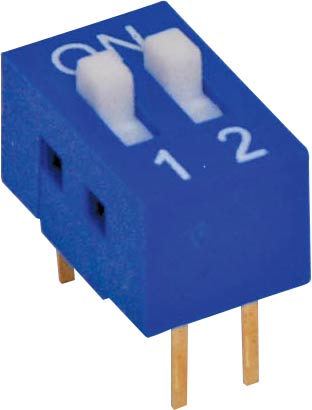

DIP DIL Switch 2 Way S3045

DIP DIL Switch 2 Way S3045

$1.65
$1.65
Sale Sold out
Taxes included.

Gold plated contacts and pins. Durable self wiping contacts.

No of switches: 2 Dimension "A" : 6.44mm

Specifications

  • Rating: 50V DC 100mA continuous, 24V DC 25mA switching
  • Contact Resistance: 30m Ohm max. initially @ 100mA
  • 100m Ohm max. after life test
  • Insulation Resistance: 1000M Ohm min.
  • Operation Life: Average 10,000 min.
  • Capacitance: 5pF max. between adjacent terminals
  • Dielectric Breakdown Voltage: 500V DC min.
  • Operation Force: 500g max
  • Case, Cover & Actuators: UL94-VO, PBT plus glass fibre
  • Terminals: Gold plated phosphor bronze
