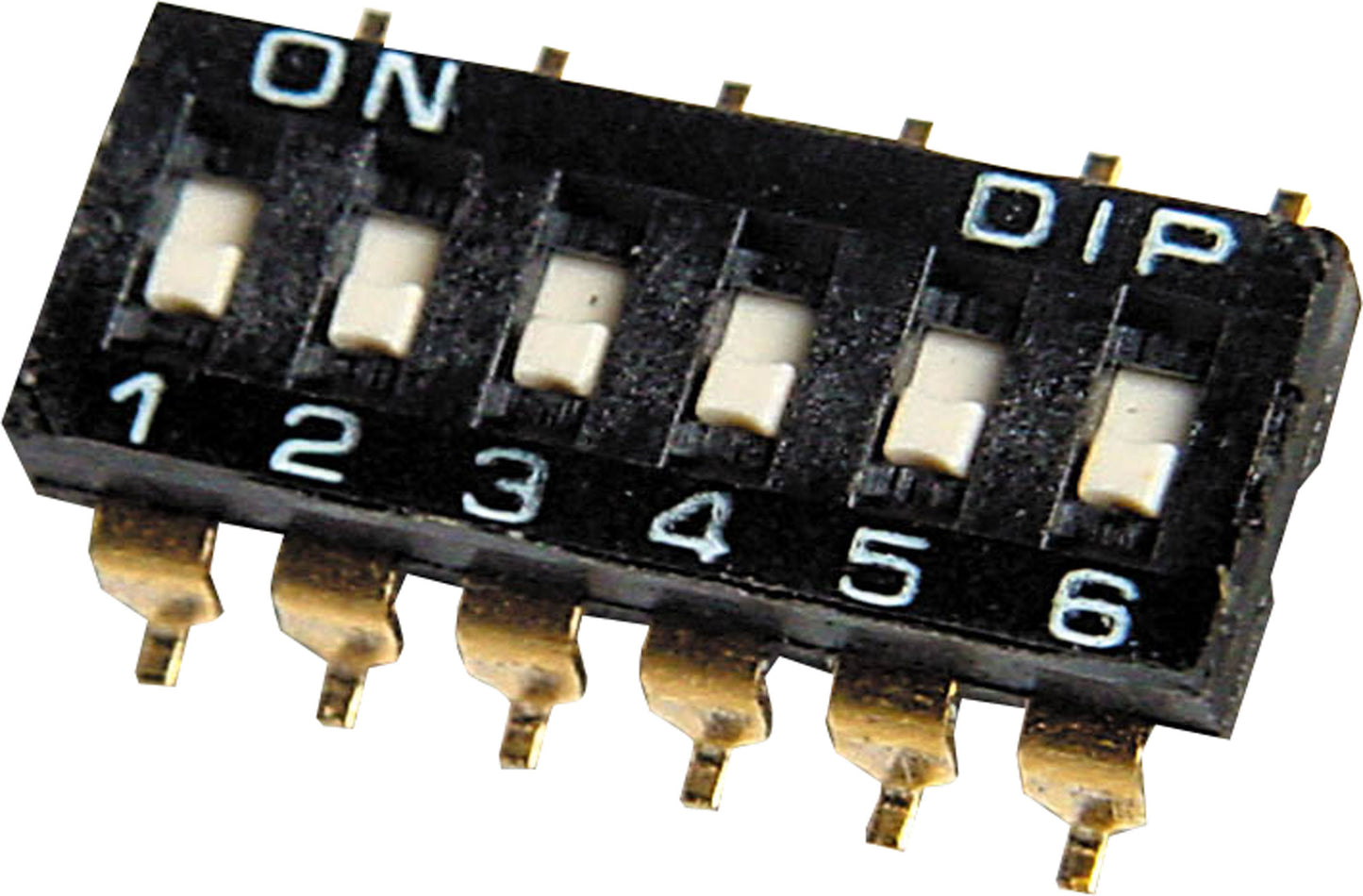

DIP DIL Switch 6 Way SMD S3086

DIP DIL Switch 6 Way SMD S3086

$3.10
$3.10
Sale Sold out
Taxes included.

Gold plated contacts and pins. Durable self wiping contacts.

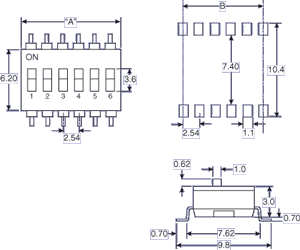

Dimensions
A : 16.2mm B : 12.7mm

Datasheet

Specifications

  • Rating: 50V DC 100mA continuous, 24V DC 25mA switching
  • Contact resistance: 50mž max. initially @ 100mA
  • 100mž max. after life test
  • Insulation resistance: 100Mž min.
  • Operation life: 2000 operations per switch
  • Capacitance: 5pF max. between adjacent terminals
  • Dielectric breakdown voltage: 500V DC min.
  • Operation force: 1000gf max
  • Terminals: Gold plated
