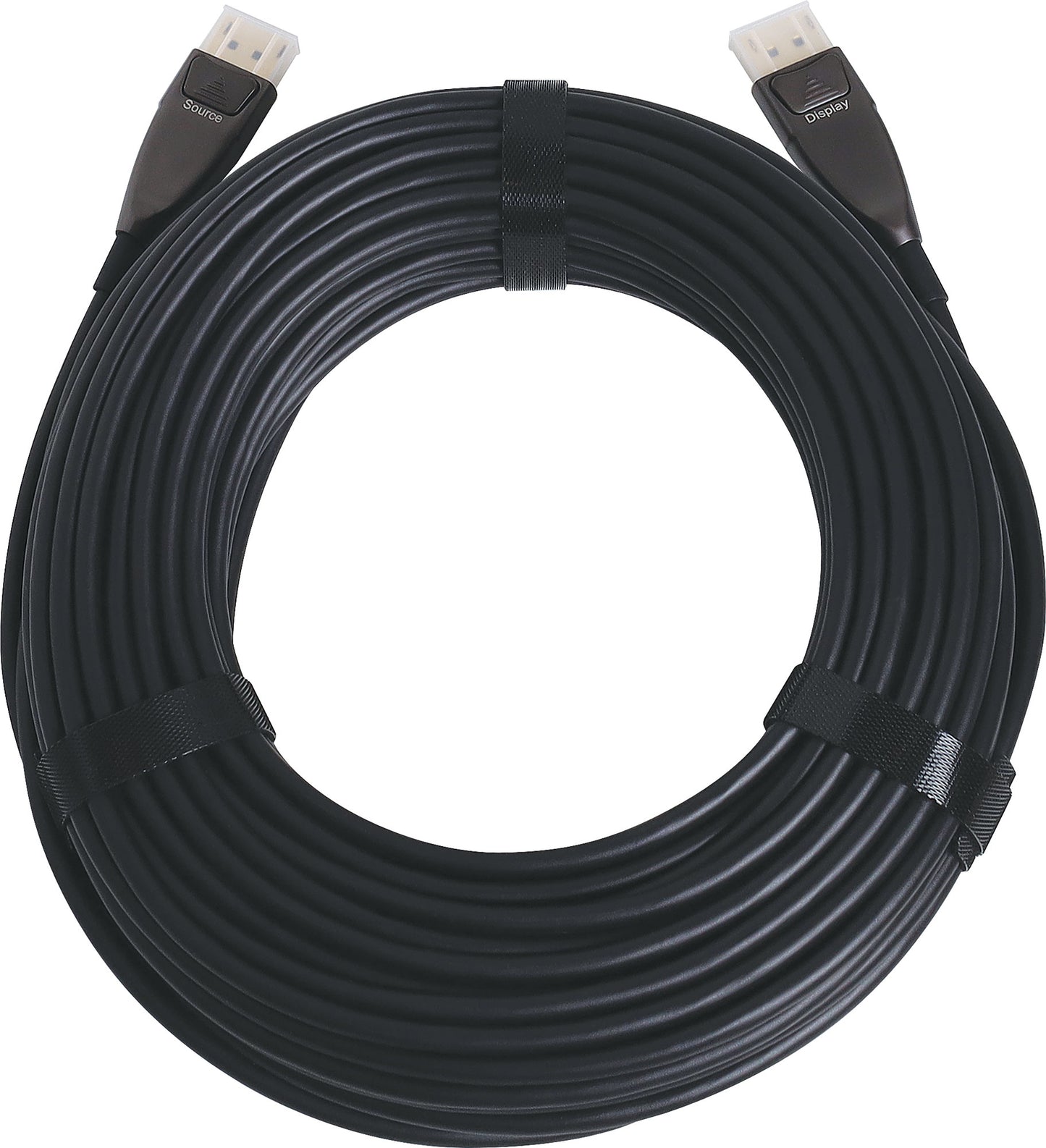

This range of Optical DisplayPort male to male leads have been constructed and designed using hybrid fibre and copper cable to ensure high-definition performance. Used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data.
DisplayPort was designed to replace VGA, FPD-Link, and Digital Visual Interface (DVI). This range supports 8K resolution at 60Hz and due to its slimline plug it will suit a 25mm conduit.
Please Note: This cable is directional (Source - Display).
Features
- Supports 8K @ 60Hz
- 32Gbps Bandwidth total
- DisplayPort 1.4 Compliant
- HDCP 2.2 Compliant
- Hybrid fibre and copper cable

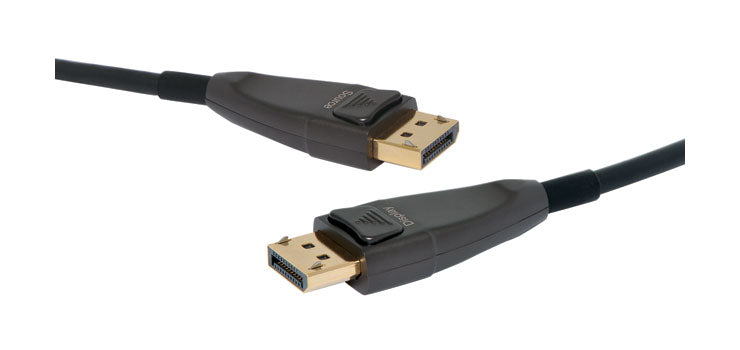

- Slimline plug suits 25mm conduit
Specifications
Performance
- Standards Compliance: DisplayPort 1.4/HBR3, HDCP 1.4/2.2
- Maximum Pixel Clock Frequency: 810MHz
- Maximum Video Bit Rate: Supports up to 8.1Gbps per lane, 32.4Gbps total
- Maximum Colour Depth: 48bits
- Maximum Supported Resolutions: 8K @ 60Hz
- DisplayPort Input/Output: 20 Pin DisplayPort
- Power: No external power supply is required
- AUX Channel Communications: Supports bi-directional communications for EDID, HDCP, Link Training etc
- HDCP Support: HDCP 1.4 and HDCP 2.2
- Optical Technology: 4 x discreet optical channels, 10GHz, 850nm
- Optical Transmitter: 4 x 850nm multi-mode VCSELs
- Optical Receiver: 4 x GaAs PIN photo diodes
- Fiber Cable Jacket: Hybrid cable 4 x fiber and 8 x copper wire
- Cable Jacket: PVC, Black
- Cable Length: 30m
- Maximum Tensile Load: 300N
- Minimum Bend Radius: 48mm
- Cable Diameter: 4.8mm (outside)
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to +85°C
- Operating/Storage Humidity: 5% to 80% (non condensing)
- Power Source: Powered from DisplayPort source device
- Power Consumption: <0.5W each end
