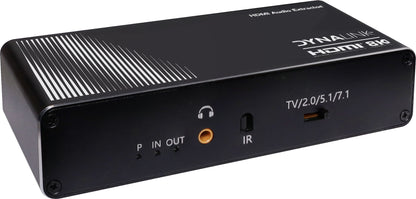

Dynalink HDMI 8K Audio Extractor A3831A
Dynalink HDMI 8K Audio Extractor A3831A
Regular price
$110.00
Regular price
Sale price
$110.00
Unit price
per
Taxes included.
Couldn't load pickup availability
With the help of this audio extractor you can extract audio signals from any HDMI compliant source to digital optical or analog stereo audio outputs. It features both input and output of HDMI supporting video resolution up to 8K @ 50/60Hz or 4K @ 120Hz. Includes USB power supply.
Features
- Extracts audio in 2.0 stereo, 5.1 surround or 7.1 surround sound.
- 3.5mm analog, RCA coaxial digital or S/PDIF optical outputs for audio.
- Supports DTS-HD, Dolby LPCM, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master audio formats.
- HDMI loop output support with maximum 8K @ 60Hz, 4K @ 120Hz and 1080p @ 120Hz.
- Supports Dolby Vision & HDCP 2.3 compliance.
- Supports variable refresh rate, VRR AMD Free-Sync G-Sync.
Specifications
- Technical Bandwidth: 48Gbps
- Output Resolution: 8K@60/30Hz, 4K@120/60Hz, 5120x1440@120/60Hz,1080P@120/60/50/24Hz, YUV, 4:4:4 8bit
- Audio Formats: DTS-HD, Dolby LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
Connection
- Input Ports: 1xHDMI Type A (19-pin female)

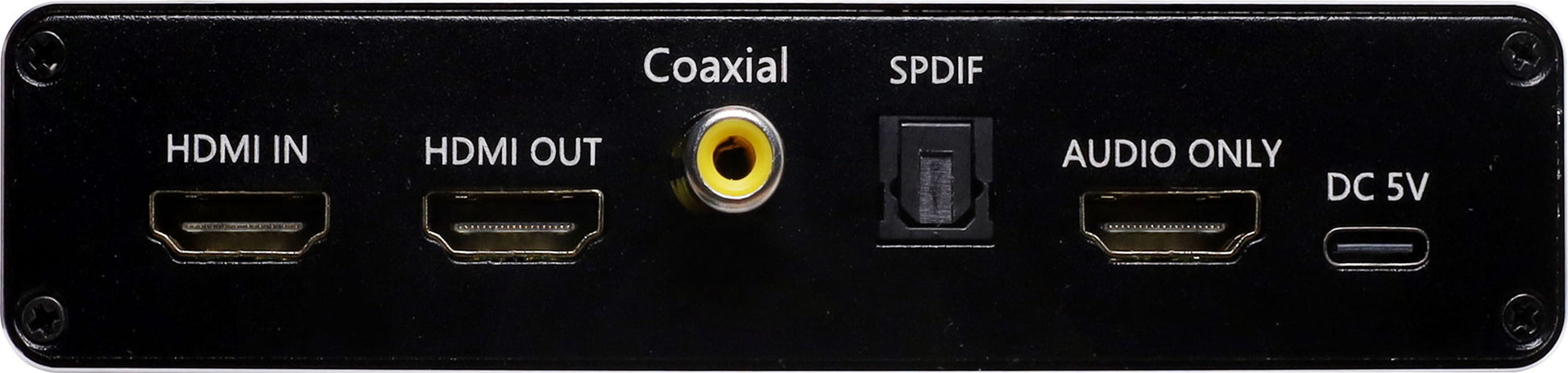

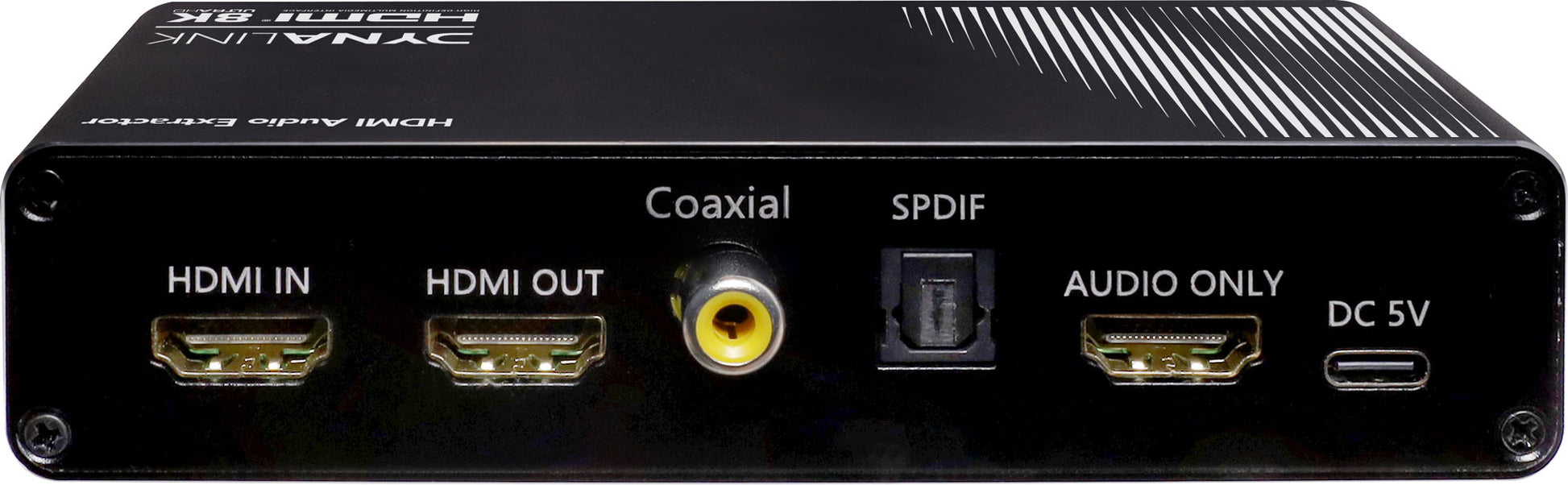

- Output Ports: 3.5mm Stereo jack S/PDIF optical RCA digital coaxial
Mechanical
- Housing: Aluminium Enclosure
- Dimensions: 130W × 61D × 30Hmm
- Weight: 160g
- Power Supply: DC 5V/1000mA
- Power Consumption: 1.75W (Max)
- Operation Temperature: 0°C to 40°C
- Storage Temperature: -20°C ~ 60°C
- Relative Humidity: 20~90% RH (non-condensing)
