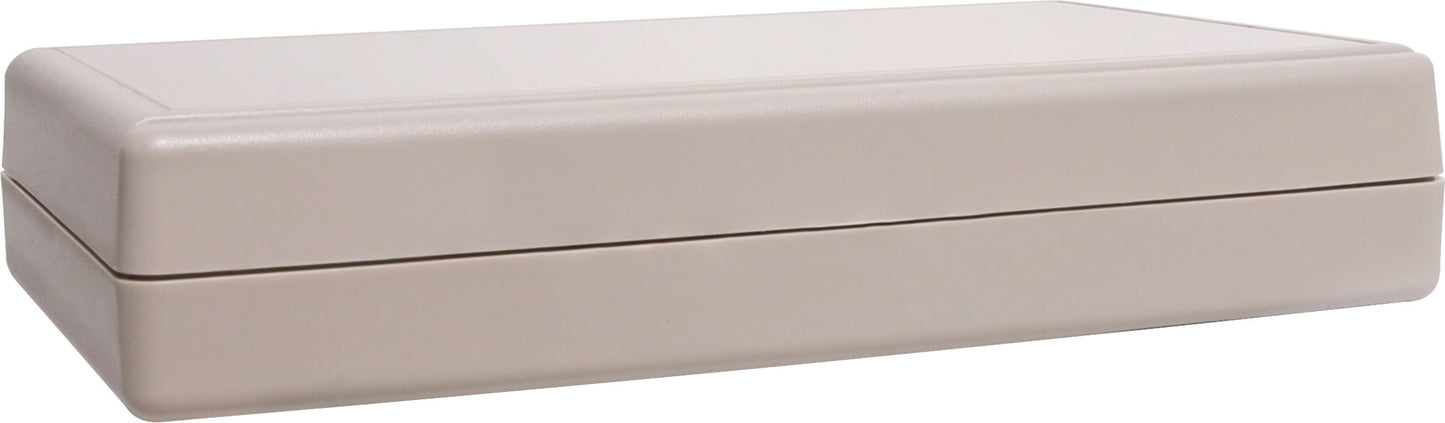

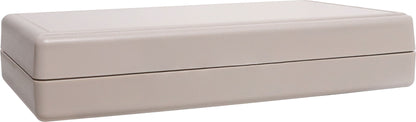

Enclosure Deluxe Utility 100Wx165Dx35Hm H0335

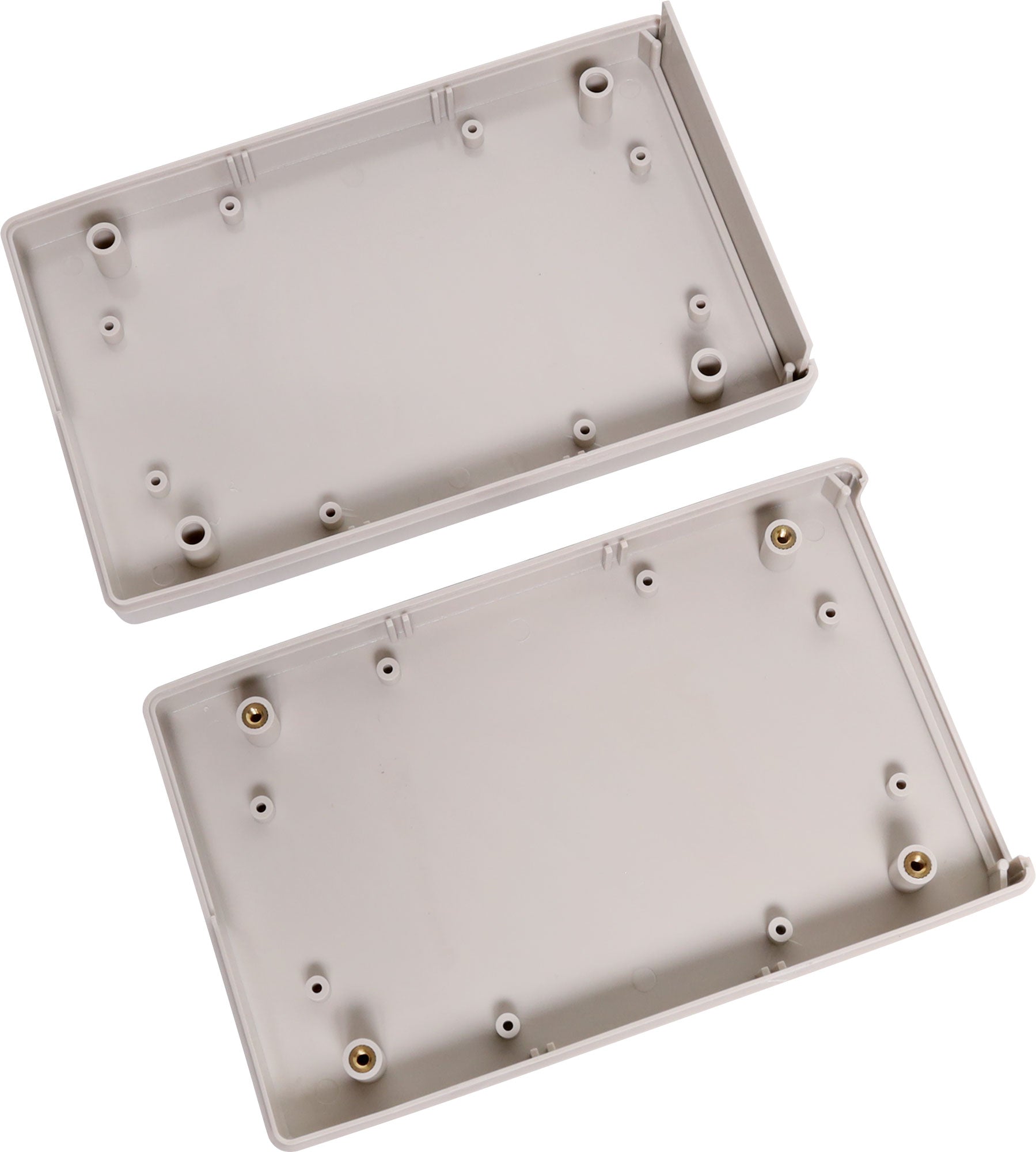

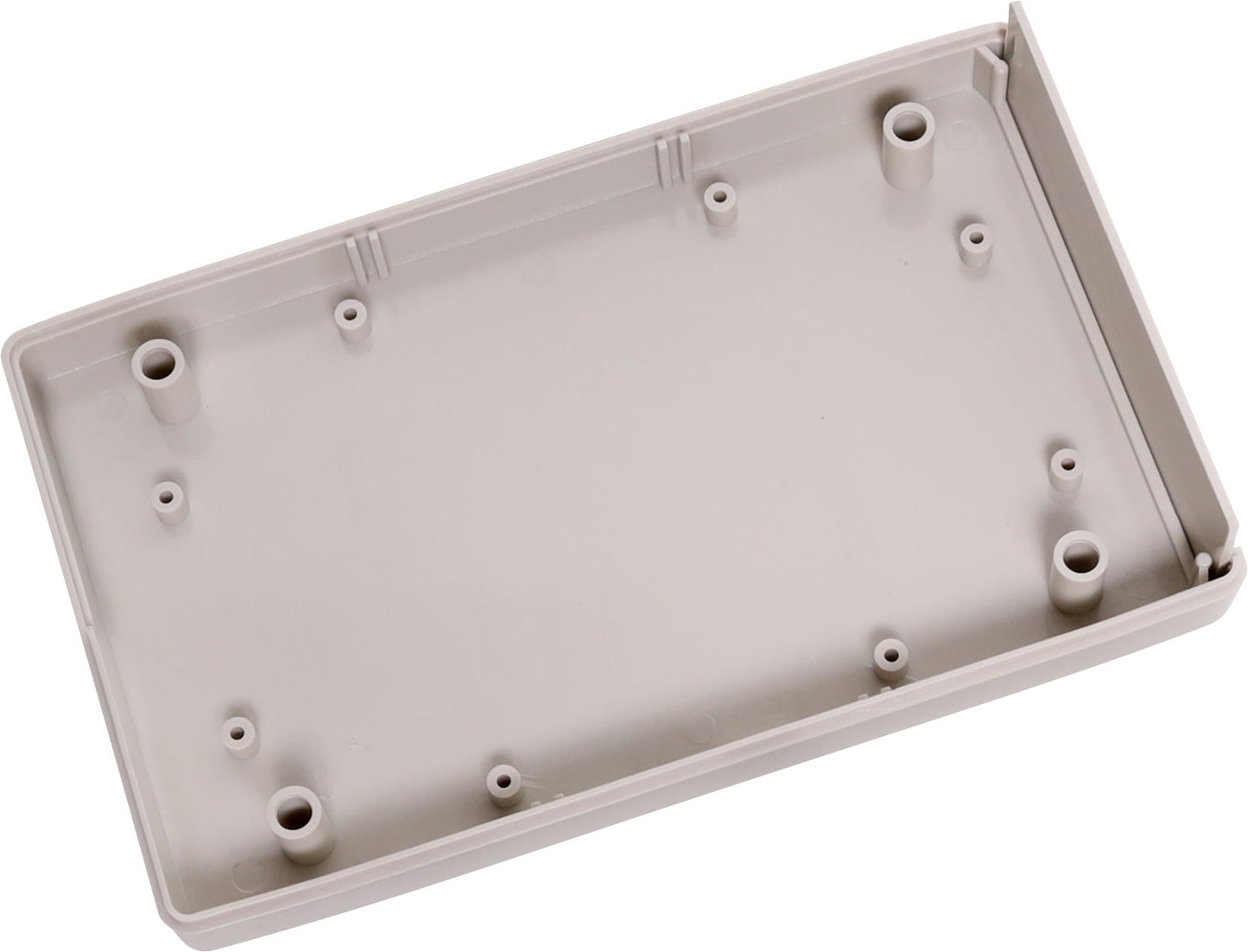

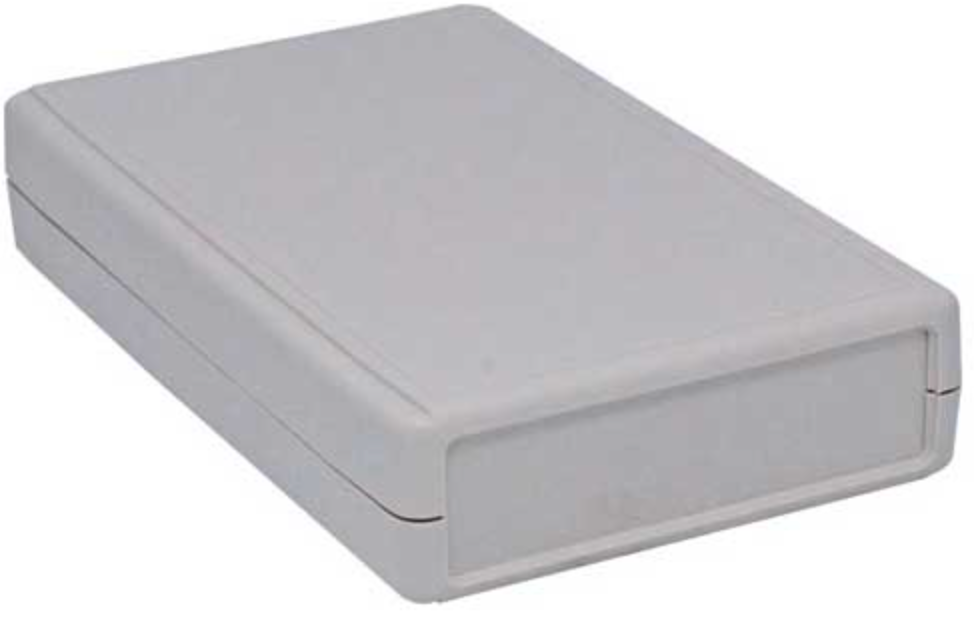

This professional series features solid ABS screw-together construction, integral PCB guides and an attractive rounded finish. All models feature a removable front panel which can be machined as required. Both halves of the case include moulded PCB mounting posts. Larger sizes (H 0335, H 0337 & H 0339) include stick on rubber feet and brass screw inserts. H 0340 includes an Infra-Red panel for designs where enclosure is used for remote controls. UL 94-HB (-30° to 80°C)

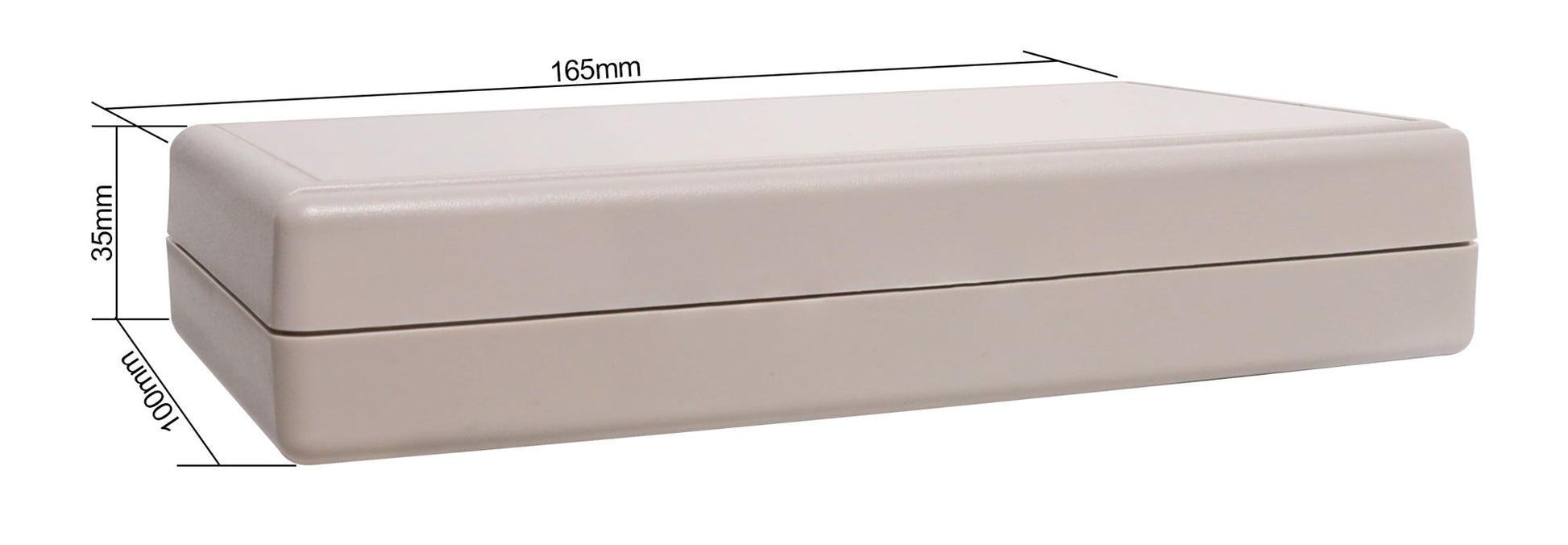

Dimensions
100W x 165D x 32H

Specification Sheet

3D Drawing and CAD files
