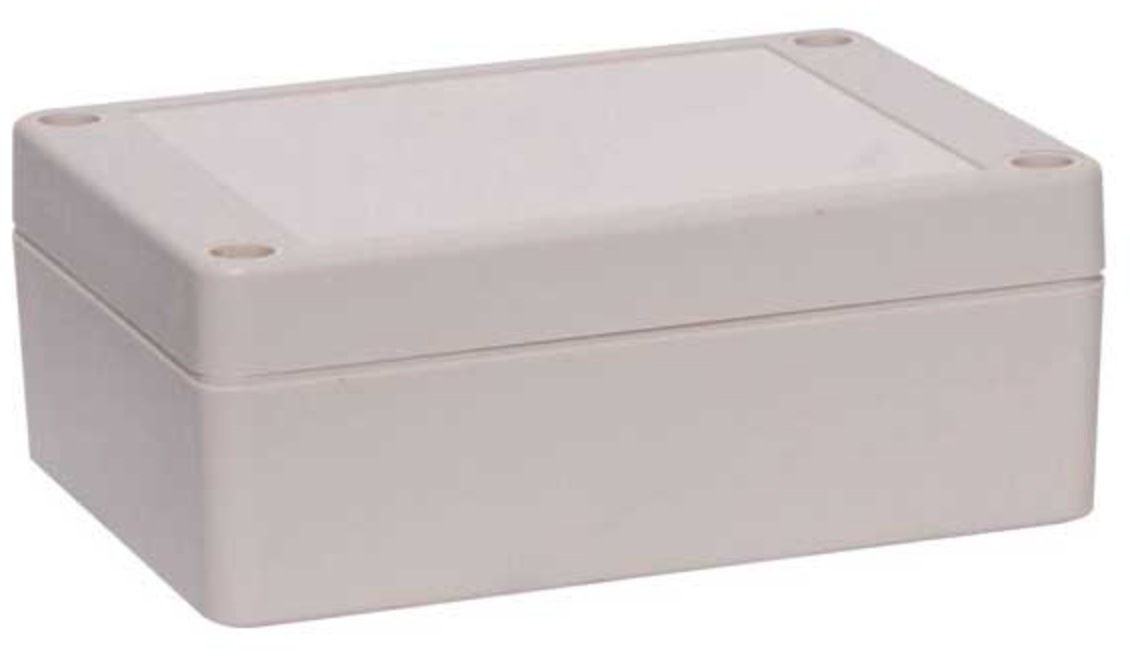

Enclosures & Boxes 105Lx75Wx40Hmm IP65 Sealed ABS Enclosure H0301

Supplied with neoprene lid sealing gasket. With the seal installed, these enclosures meet IP65 dust and hose proof standard. Supplied with a solid light grey lid (also available with a transparent lid, see H 0321). PCB mounting points are moulded into the enclosure base.These sturdy enclosures have 3mm thick walls and are rated to UL 94-HB (-30° to 80°C). Not UV stabilised.

Features

• Meets IP65 Dust and Hose-proof standards
• Brass screw thread inserts

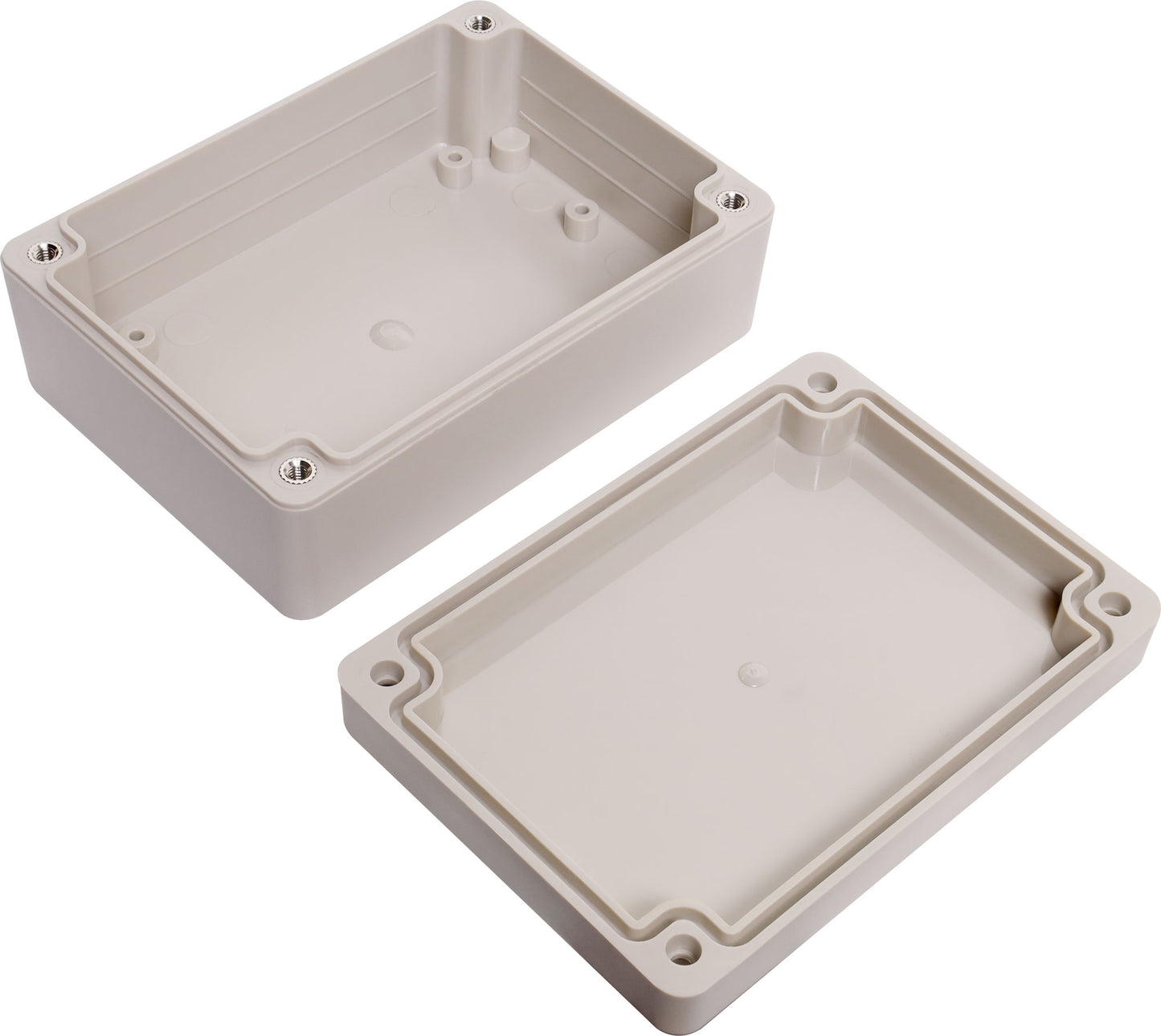

• Neoprene gasket seal

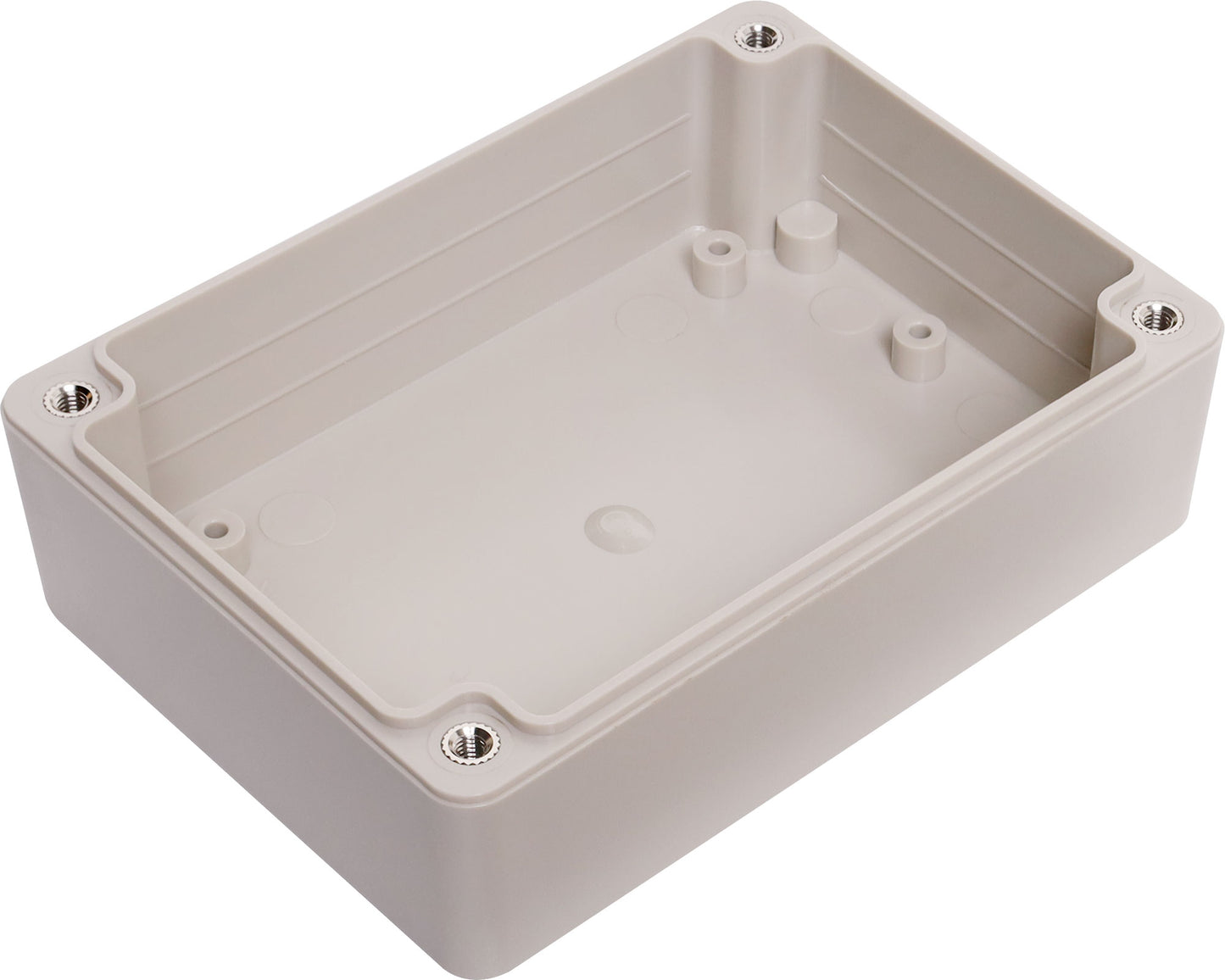

• Moulded PCB mounting points
• Manufactured from high impact ABS
• Useable temperature range of -30°C to +80°C
• Available with a solid light grey lid or a polycarbonate clear lid (see H0321)

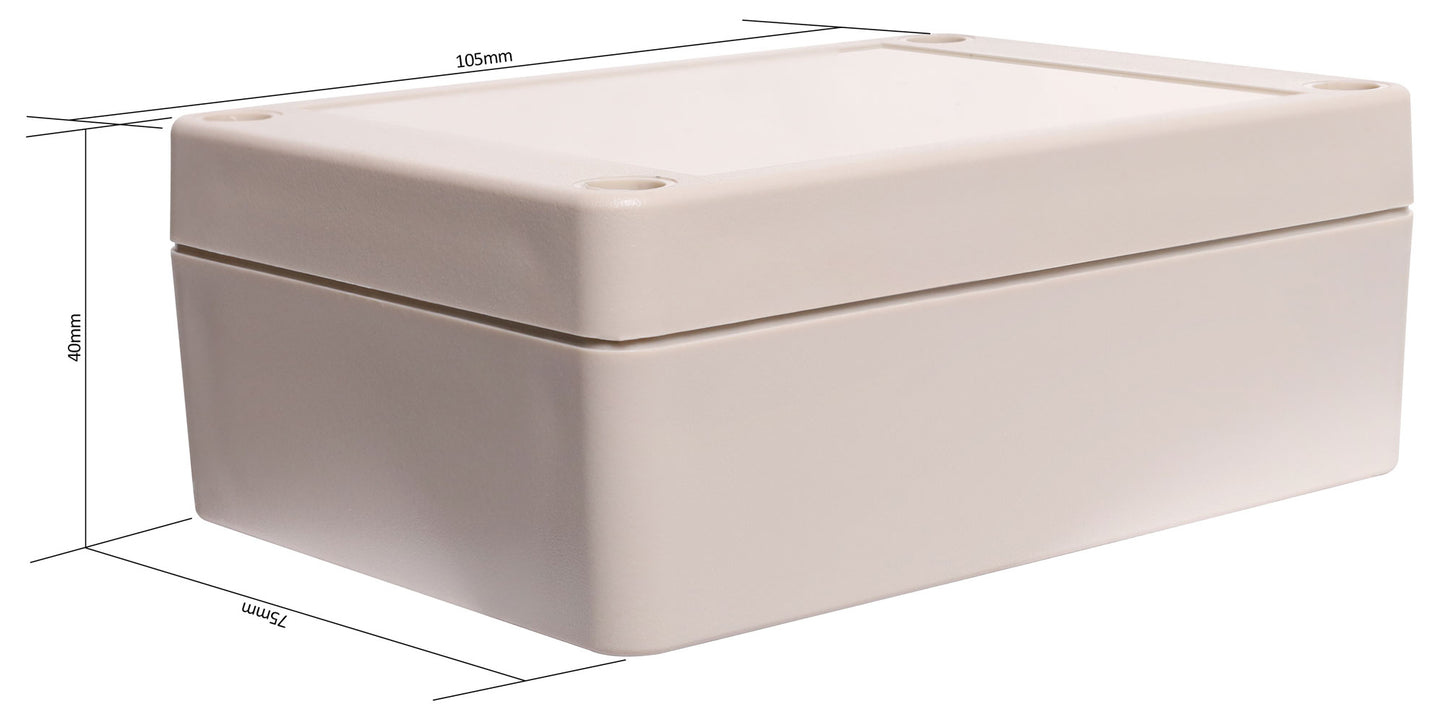

• 105L x 75W x 40H mm

Specification Sheet

IGS/STP 3D Model Files

AutoCad DWG File
